1 Introduction
Item response theory (IRT) models are a widely-used statistical approach to analyze assessment data in various fields, e.g., medical, educational, psychological, health, and marketing research (An and Yung 2014; Zanon et al. 2016). IRT models are designed to establish a relationship between observed item response data and unobserved person characteristics, commonly referred to as latent traits, e.g., competencies, attitudes, or personality (Ayala 2009; Brzezińska 2018). IRT models can predict the probability of a correct (or positive) response as a function of the respondents’ latent traits and item features, such as item difficulty and discrimination. Additional technical details of IRT models are provided in the subsequent section.
Several R packages are available for estimating IRT models. The ltm package (Rizopoulos 2006) is available to analyze dichotomous and polytomous item response data, including a one-parameter logistic (1PL) model (or the Rasch model), a two-parameter logistic (2PL) model, a three-parameter model (Rasch 1960; Birnbaum 1968) and a graded response model (Samejima 1968). The eRm package (Mair and Hatzinger 2007) estimates various extensions of the Rasch model, such as the rating scale model (RSM) (Andrich 1978), partial credit model (PCM) (Masters 1982), linear logistic test model (LLTM) (Scheiblechner 1972), the linear rating scale model (LRSM) (Fischer and Parzer 1991), and the linear partial credit model (LPCM) (Glas and Verhelst 1989; Fischer and Ponocny 1994). The mirt package (Chalmers 2012) can estimate a wide range of IRT models, including exploratory and confirmatory multidimensional item response models. The pcIRT package (Hohensinn 2018) provides functions for estimating IRT models for polytomous (nominal) and continuous data, including the multidimensional polytomous Rasch model (Andersen 1973) and the continuous rating scale model (Müller 1987), using conditional maximum likelihood (CML) estimation (Baker and Kim 2023).
Conventional IRT models are typically based on two assumptions: conditional independence and homogeneity. Conditional independence assumes that item responses are independent of each other conditional on respondents’ latent traits. The homogeneity assumption is, e.g., that respondents with the same ability have the same probability of answering a question correctly and that respondents have the same probability of answering a question with the same item difficulty. However, these assumptions are often violated in practice due to unobserved interactions between respondents and items, e.g., when particular items are more similar to each other (e.g., testlets) or when particular respondents show different probabilities of giving correct responses to certain items compared to other respondents with similar ability (e.g., differential item functioning). Violations of these assumptions can lead to biased parameter estimates and inferences (Chen and Wang 2007; Braeken 2010; Myszkowski and Storme 2024). While some existing methods can address known violations prior to data analysis, there is currently no approach that enables the detection or management of unknown sources of violations in item response analysis, to the best of our knowledge.
Jeon et al. (2021) proposed a latent space item response model (LSIRM) that addresses such limitations of conventional IRT models. The LSIRM aims to estimate inherent interactions between respondents and items, alongside the latent traits of both. A key feature is its visual representation of these interactions in a low-dimensional latent space, called an interaction map in the form of distances between them. Interaction maps offer a clear and intuitive interpretation of complex respondent-item relationships, allowing users to identify patterns and clusters based on spatial proximity on the map. Additional details of the LSIRM are provided in a later section.
This paper presents the lsirm12pl package in R that offers Bayesian estimation of the LSIRM and its extensions. Jeon et al. (2021) focused on the response data for binary items and the Rasch model as the base model, and currently, no package is available to estimate the LSIRMs. To broaden the applicability of latent space item response modeling, lsirm12pl enables: (1) modeling continuous item responses; (2) missing data handling under different missing mechanisms assumptions (Rubin 1976); and (3) an extended base model specification using the 2PL model both for binary and continuous item response data. The package also offers options to cluster latent positions of items in the estimated interaction map using spectral clustering and the Neyman-Scott process model. The lsirm12pl supplies convenient summary and plotting options for interaction maps, model assessment, diagnosis, and result process and interpretation, aiming to improve the utilization of the LSIRM in practice.
The subsequent sections of the paper are structured as follows. To begin, we provide a concise overview of the 1PL and 2PL IRT models. We then delve into the LSIRM for binary response data and demonstrate how to fit the model with the package functions using a real dataset. Next, we extend the LSIRM to accommodate continuous data and provide guidance on fitting this extended model using the lsirm12pl package. In the end, we conclude the paper with final remarks and a discussion of future developments.
2 Item response theory models
IRT models are essential for analyzing item response data, which comprises respondents’ answers to items on tests, surveys, or questionnaires. This section briefly discusses two widely utilized IRT models for dichotomous item response data.
1PL IRT Model
The 1PL model, also known as the Rasch model (Rasch 1961), is a classic IRT model for analyzing dichotomous item response data. Suppose \(\boldsymbol{Y} = \left\{ y_{k,i} \right\} \in \left\{ 0, 1 \right\}^{N \times P}\) is the \(N \times P\) binary item response matrix under analysis, where \(y_{k,i}=1\) indicates a correct (or positive) response of the respondent \(k\) to the item \(i\). In the Rasch model, the probability of the correct response for item \(i\) given by respondent \(k\) is given as follows: \[\text{logit}(\mathbb{P}(y_{k,i}=1|\theta_{k},\beta_{i}))=\theta_{k} +\beta_{i}, \; \; \theta_{k} \sim N(0, \sigma^2), \label{rasch_formula} \tag{1}\] where \(\theta_k \in \mathbb{R}\) is the respondent intercept parameter of respondent \(k\), \(\beta_i \in \mathbb{R}\) is the item intercept parameter of item \(i\). The person intercept parameter represents the latent trait of interest, such as cognitive ability. The item intercept parameter represents the item easiness (or minus difficulty). As the respondent’s ability increases, her/his likelihood of giving correct responses increases. On the other hand, the likelihood of correct responses decreases as the difficulty of the item increases. Note that based on the model, the probability of a respondent’s giving a correct response to an item is a function of the two parameters – the person’s ability and the item’s difficulty. This means that respondents with the same level of ability are assumed to have the same probability of giving a correct response to an item. Similarly, items with the same level of difficulty are assumed to have the same probability of being correctly responded to. In other words, interactions between persons and items are not allowed in this model. However, in reality, respondents with the same level of ability and items with the same level of difficulty may show a different success probability due to unobserved characteristics they may have, violating the assumptions.
2PL IRT Model
The 2PL model (Birnbaum 1968) extends the 1PL model by incorporating a discrimination parameter for each item. This parameter reflects the ability of the item to differentiate among respondents with similar abilities. The item discrimination parameters are also considered as item slopes, indicating how quickly the probability of correct responses increases as the respondent’s abilities increase (An and Yung 2014). A larger discrimination parameter indicates that the item is better at distinguishing between respondents with similar ability levels. In the 2PL model, the probability of person \(k\) giving a correct response to item \(i\) is given as follows: \[\text{logit}(\mathbb{P}(y_{k,i}=1|\theta_{k}, \alpha_{i}, \beta_{i}))=\alpha_{i}\theta_{k} + \beta_{i}, \; \; \theta_{k} \sim N(0, \sigma^2), \label{birnbaum2pl_formula} \tag{2}\] where \(\alpha_i \in \mathbb{R}\) is the discrimination parameter for the item \(i\). For model identifiability, one of the item slope parameters is fixed at 1, e.g., \(\alpha_{1} =1\). With the term \(\alpha_{i}\theta_{k}\), the 2PL model allows for an interaction between respondents and items to some degree. However, it is not likely to capture all interactions between respondents and items that might not depend on respondents’ ability (Jeon et al. 2021).
3 Standard lsirm: 1pl lsirm for dichotomous data
The LSIRM (Jeon et al. 2021) has been proposed as an extension of the conventional IRT models. The key idea of the LSIRM is to place respondents and items in a low-dimensional, shared metric space, called an interaction map, so that their unobserved interactions can be captured in the form of distances between them. Below we provide a brief overview of the LSIRM in its original form, presented for dichotomized data.
Statistical framework
To capture unobserved interactions between respondents and items, the original LSIRM (Jeon et al. 2021) embeds items and respondents in an interaction map, i.e., a \(D\)-dimensional latent Euclidean space. Note that the interaction map is used as a tool to represent pairwise interactions between respondents and items; thus, the dimensions of an interaction map do not represent any specific quantity or have a substantive meaning. The original LSIRM is built on the 1PL IRT model; thus, we refer to the original LSIRM as the 1PL LSIRM.
The 1PL LSIRM assumes that the probability of giving a correct answer to
item \(i\) by the respondent \(k\) is determined by a linear combination of
the main effect of the respondent \(k\), the main effect of the item \(i\),
and the pairwise distance between the latent position of item \(i\) and
the latent position of respondent \(k\). Then, the model is given by:
\[\text{logit}(\mathbb{P}(y_{k,i}=1|\theta_{k},\beta_{i},\gamma,\boldsymbol{z_{k},w_{i}}))=\theta_{k}+\beta_{i}-\gamma d (\boldsymbol{z_{k}},\boldsymbol{w_{i}}),
\label{1pl_formula} \tag{3}\]
where \(\theta_k \in \mathbb{R}\) and \(\beta_i \in \mathbb{R}\) represent
the respondent’s latent trait and the item’s easiness, respectively,
same as in the conventional 1PL model. These two terms can also be seen
as the main effects of respondents and items. The third term,
\(-\gamma d (\boldsymbol{z_{k}},\boldsymbol{w_{i}})\), captures the
interactions between respondents and items, where
\(\boldsymbol{z_{k}}\in\mathbb{R}^{D}\) and
\(\boldsymbol{w_{i}}\in\mathbb{R}^{D}\) are the latent position of the
respondent \(k\), and the latent position of the item \(i\), respectively,
where \(\gamma \geq 0\) is the weight of the distance term
\(d(z_{k},w_{i})\). For a distance function \(d:\)
\(\mathbb{R}^{D} \times \mathbb{R}^{D} \mapsto [0,\infty)\), we use a
Euclidean norm (that is, \(d(z_{k},w_{i})=||z_k - w_i||\)) as a distance
function in lsirm1pl to maintain simplicity and enhance the
interpretability of the model (Hoff et al. 2002). The weight of the distance
term \(\gamma \geq 0\) indicates the amount of interactions between
respondents and items in the data, such that large \(\gamma\) implies
stronger evidence for respondent by item interactions in the data. In
contrast, near zero \(\gamma\) implies little evidence of respondent-item
interactions in the data, thus suggesting that one may go with the
conventional IRT model without the interaction term.
The likelihood function of the observed data with the 1PL LSIRM is \[\mathbb{L}\left(\boldsymbol{Y=y | \theta, \beta}, \gamma, \boldsymbol{Z, W} \right) = \prod_{K=1}^{N} \prod_{i=1}^{P} \mathbb{P}(Y_{k,i} = y_{k,i} | \theta_{k}, \beta_{i}, \gamma, \boldsymbol{z_{k}, w_{i}}), \label{likelihood} \tag{4}\] where \(\boldsymbol{\theta} = \left(\theta_{1}, \ldots, \theta_{N}\right)\), \(\boldsymbol{\beta}=\left(\beta_{1}, \ldots, \beta_{P}\right)\), \(\boldsymbol{Z} = \left(\boldsymbol{z_{1}}, \ldots, \boldsymbol{z_{N}}\right)\) and \(\boldsymbol{W}=\left(\boldsymbol{w_{1}}, \ldots, \boldsymbol{w_{P}}\right)\). Here, item responses are assumed to be independent conditional on the positions of respondents and items in an interaction map, as well as the main effects of respondent and item. This means that the traditional conditional independence assumption is alleviated with the model by accounting for respondent-item interactions. The detailed parameter estimations are described in the following Section.
Parameter Estimation
The R package lsirm12pl applies a fully Bayesian approach using the Markov chain Monte Carlo (MCMC) for estimation of the LSIRM. Following is the posterior distribution of the 1PL LSIRM. \[\begin{aligned} \pi\left(\boldsymbol{\theta, \beta}, \gamma, \boldsymbol{Z, W} | \boldsymbol{Y=y} \right) & \propto \prod_{k=1}^{N} \prod_{i=1}^{P} \mathbb{P}(Y_{k,i} = y_{k,i} | \theta_{k}, \beta_{i}, \gamma, \boldsymbol{z_{k}, w_{i}}) \\ &\times \prod_{k=1}^N \pi(\theta_k) \times \prod_{i=1}^P \pi(\beta_i) \times \pi(\gamma) \times \prod_{k=1}^N \pi(\boldsymbol{z_{k}}) \prod_{i=1}^P \pi(\boldsymbol{w_{i}}) \label{posterior} \end{aligned} \tag{5}\] The priors for the model parameters are specified as follows: \[\label{1pl-prior} \begin{split} \theta_{k} \mid \sigma^{2} & \sim N(0,\sigma^{2}),\ \sigma^{2}>0\\ \beta_{i} \mid \tau_{\beta}^{2} & \sim N(0,\tau_{\beta}^{2}),\ \tau_{\beta}^{2}>0\\ \log \gamma \mid \mu_{\gamma},\tau_{\gamma}^2 & \sim N(\mu_{\gamma},\tau_{\gamma}^2),\ \mu_{\gamma}\in\mathbb{R},\ \tau_{\gamma}^2>0\\ \sigma^{2} \mid a_{\sigma},b_{\sigma} & \sim\text{Inv-Gamma}(a_{\sigma},b_{\sigma}),a_{\sigma}>0,b_{\sigma}>0\\ \boldsymbol{z_{k}} & \sim\text{MVN}_{D}(\boldsymbol{0,I_{D}})\\ \boldsymbol{w_{i}} & \sim\text{MVN}_{D}(\boldsymbol{0,I_{D}}). \end{split} \tag{6}\] where \(\boldsymbol{0}\) is a \(D\)-vector of zeros and \(\boldsymbol{I_{D}}\) is \(D \times D\) identity matrix. The argument names and default values for the prior specifications in the lsirm12pl are described in our Github site 1.
To generate posterior samples for \(\boldsymbol{\theta,\ \beta,\ \gamma,\ Z}\) and \(\boldsymbol{W}\), we use the Metropolis-Hastings-within-Gibbs sampler (Chib and Greenberg 1995). The conditional posterior distribution for each parameter is given in Equations in the Github site. We list the arguments, the default values for the jumping rules, and the standard deviations of the Gaussian proposal distributions in the Github site.
The log-odds of the probability of giving correct responses depend on the latent positions through distances, as discussed in Jeon et al. (2021). Because distances are invariant to translations, reflections, and rotations of the positions of respondents and items, the likelihood function is invariant under these transformations. To resolve the identifiability issue of latent positions, the lsirm12pl package applies Procrustes transformation (Gower 1975) as a post-processing of posterior samples, which is a standard procedure in the latent space modeling literature (Hoff et al. 2002; Sewell and Chen 2015; Jeon et al. 2021).
An Illustrated Example
Here, we demonstrate how to apply the 1PL LSIRM to real datasets using the lsirm12pl package. To this end, we use the Inductive Reasoning Developmental Test (TDRI) dataset (Golino 2016) from the package, which contains item responses from 1,803 Brazilians (52.5% female) of ages ranging from 5 to 85 years (M = 15.75; SD = 12.21). TDRI is a pencil-and-paper test consisting of 56 items that are designed to assess developmentally sequenced and hierarchically organized inductive reasoning.
The lsirm12pl
package provides several functions for fitting the LSIRM, which requires
setting hyperparameter values for prior distributions and/or tuning
parameters for MCMC chains. By default, the lsirm function runs with
the default settings unless otherwise specified by the user. The default
MCMC run setting includes 15,000 iterations, 2,500 burn-ins, and 5
thinning. The base function for running the LSIRM is
lsirm(A\(\sim\)<term 1>(<term 2>, <term 3>, ...))
where A is an item response matrix to be analyzed, <term1> is for
the model option – either ‘lsirm1pl’ or ‘lsirm2pl’, while <term 2>
and <term 3> are other specific options for the chosen model, which
are detailed in the documentation of the
lsirm12pl package.
The following is an example of how to fit the 1PL LSIRM to the TDRI
dataset (with no missing) with a default estimation setting with 4 MCMC
chains using 2 multi-core processors. Additional details of other
default values can be found in the documentation of the
lsirm12pl package.
R > library("lsirm12pl")
R > data <- lsirm12pl::TDRI
R > data <- data[complete.cases(data),]
R > head(data)
i1 i2 i3 i4 ... i54 i55 i56
1 1 1 1 1 ... 0 0 0
2 1 1 1 1 ... 0 0 0
3 1 1 1 1 ... 0 0 0
4 1 1 1 1 ... 0 0 0
5 1 1 1 1 ... 0 0 0
R > lsirm_result <- lsirm(data ~ lsirm1pl(chains = 4, multicore = 2, seed = 2025))The estimation results of the model parameters \(\boldsymbol{\theta,\ \beta},\ \gamma,\ \boldsymbol {Z}\), and \(\boldsymbol{W}\) are stored in individual lists per chain, while all results across the chains are stored in a single list.
The summary() function generates a summary of the first chain by
default, but users can obtain summaries of other chains by setting the
chain.idx option. The function provides posterior estimates of the
“covariate coefficients” (model parameters such as \(\beta\)), allowing
the users to select the "mean", "median", or "mode" through the
estimate option. It also provides the highest posterior density
interval (HPD) for the model parameters with the CI option that allows
the users to set different significance levels. Additionally, the
function supplies the Bayesian information criterion (BIC) and the
maximum log posterior value. When the column names are available in the
input data, the summary() function uses these names in the summary of
the results.
R > summary(lsirm_result, chain.idx = 1, estimate = 'mean', CI = 0.95)
==========================
Summary of model
==========================
Call: lsirm.formula(formula = data ~ lsirm1pl(chains = 4, multicore = 2, seed = 2025))
Model: lpl LSIRM
Data type: binary
Variable Selection: FALSE
Missing: NA
MCMC sample of size 15000, after burnin of 2500 iteration
Covariate coefficients posterior means of chain 1 :
Estimate 2.5% 97.5%
i1 6.42354 5.82468 7.0642
...
i56 -1.01604 -2.58822 0.8133
---------------------------
Overall BIC (Smaller is better) : 43661.52
Maximum Log-posterior Iteration:
value iter
[1,] -11487 137The diagnostic() function checks the convergence of MCMC for each
parameter using various diagnostic tools, such as trace plots, posterior
density distributions, autocorrelation functions (ACF), and
Gelman-Rubin-Brooks plots. The diagnostic() function has options:
draw.item, and gelman.diag. The draw.item option in the
diagnostic() function specifies the names and indexes of the
parameters to diagnose. The draw.item option is set to a list where a
key represents each parameter such as
“beta”, “theta”, “gamma”, “alpha”, “sigma”, and “sigma_sd”, and the
values indicate the indices of these parameters. The indexes can be
expressed as vectors. In the following example code, the draw.item
option is set as list(“beta” = c(1)) to check the diagnostic of the
first index of the beta parameter, i.e. \(\beta_1\). With
gelman.diag = TRUE, the Gelman-Rubin convergence diagnostic, known as
potential scale reduction factors (PSRF), is obtained.
R > diagnostic(lsirm_result,
draw.item = list("beta" = c(1)),
gelman.diag = TRUE)
Potential scale reduction factors:
Point est. Upper C.I.
beta [i1] 1.01 1.04

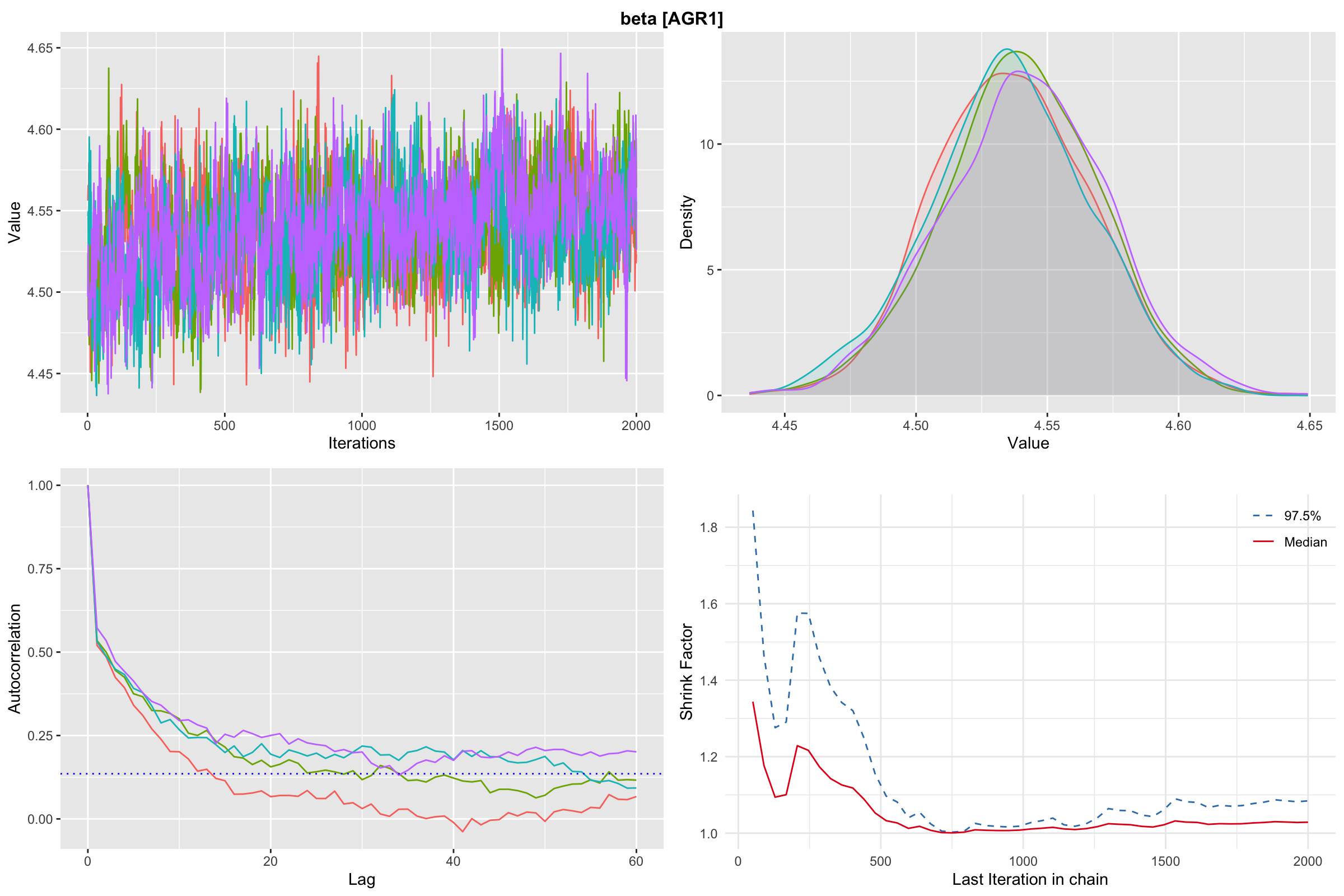

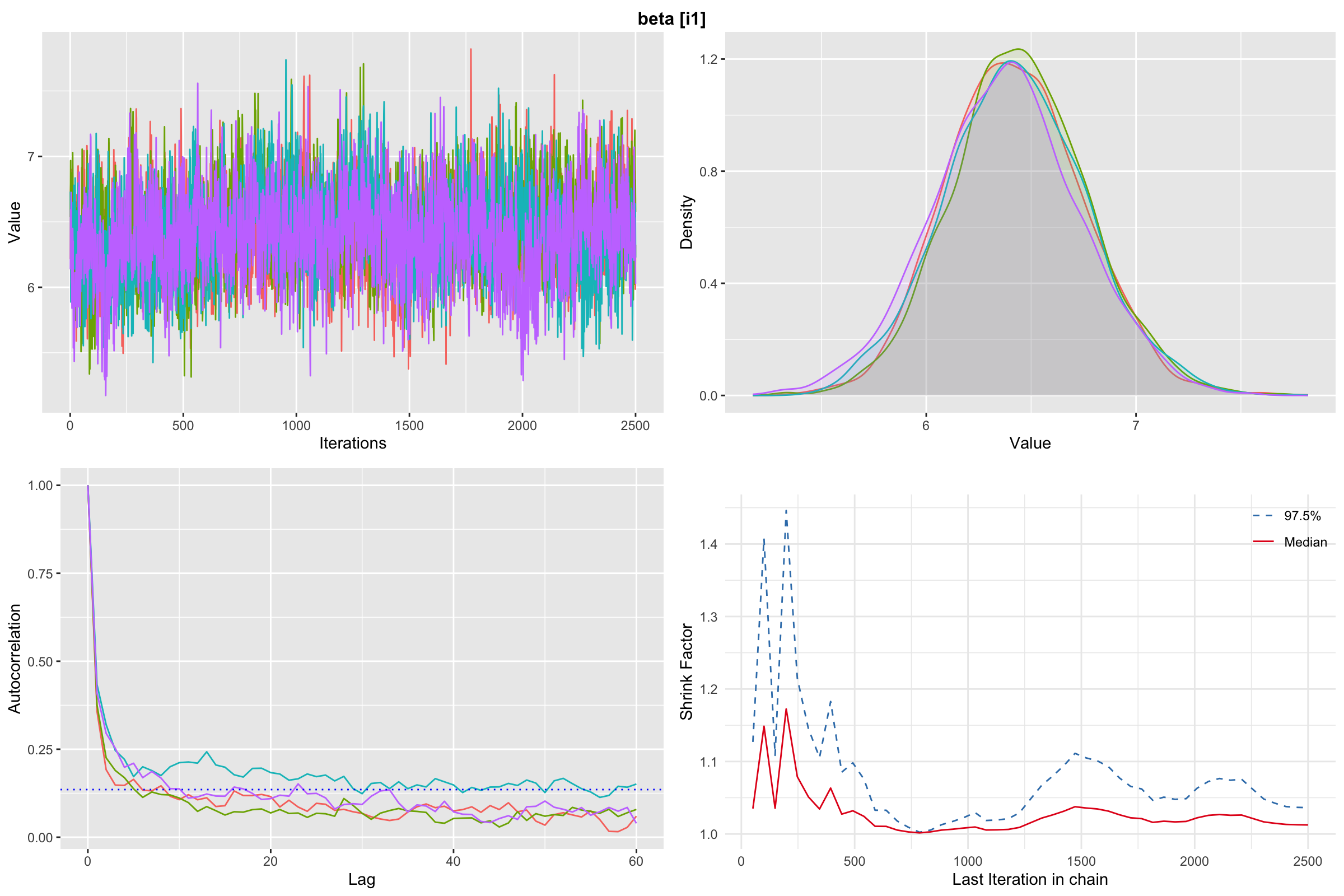

diagnostic() function
on the results of the 1PL LSIRM fitted to the TDRI dataset. The top left
is the trace plot, the top right is the posterior density plot, the
bottom left is the autocorrelation plot, and the bottom right is the
Gelman-Rubin-Brooks plot. Different colors represent different MCMC
chains.Figure 1 displays the output of diagnostic() for
\(\beta_1\): trace plot (top left), posterior density plot (top right),
autocorrelation plot (bottom left), and Gelman-Rubin-Brooks plot (bottom
right). Different colors indicate different MCMC chains. Trace plots
visualize the mixing of the MCMC chains. In a well-converged model, the
trace plots should show that chains fluctuate consistently around a
constant value, which indicates the parameter space is thoroughly
explored. Density plots display the distribution of the sampled
parameter values. In a converged model, the density plots should exhibit
smooth, overlapping curves across different chains, which demonstrates
that the samples are drawn from the same posterior distribution.
Autocorrelation plots measure the correlation between samples at
different lags. For a converged model, the autocorrelation should
decrease rapidly as the lag increases, which suggests the samples are
independent and the parameter space has been effectively explored.
Gelman-Rubin-Brooks plots show a shrink factor, known as the potential
scale reduction, which compares the variance within each chain to the
variance between chains. A shrink factor value close to 1 indicates the
within-chain variance is similar to the between-chain variance,
providing evidence of good convergence. By examining these diagnostics
collectively, the convergence of the model parameters from the LSIRM can
be ensured.

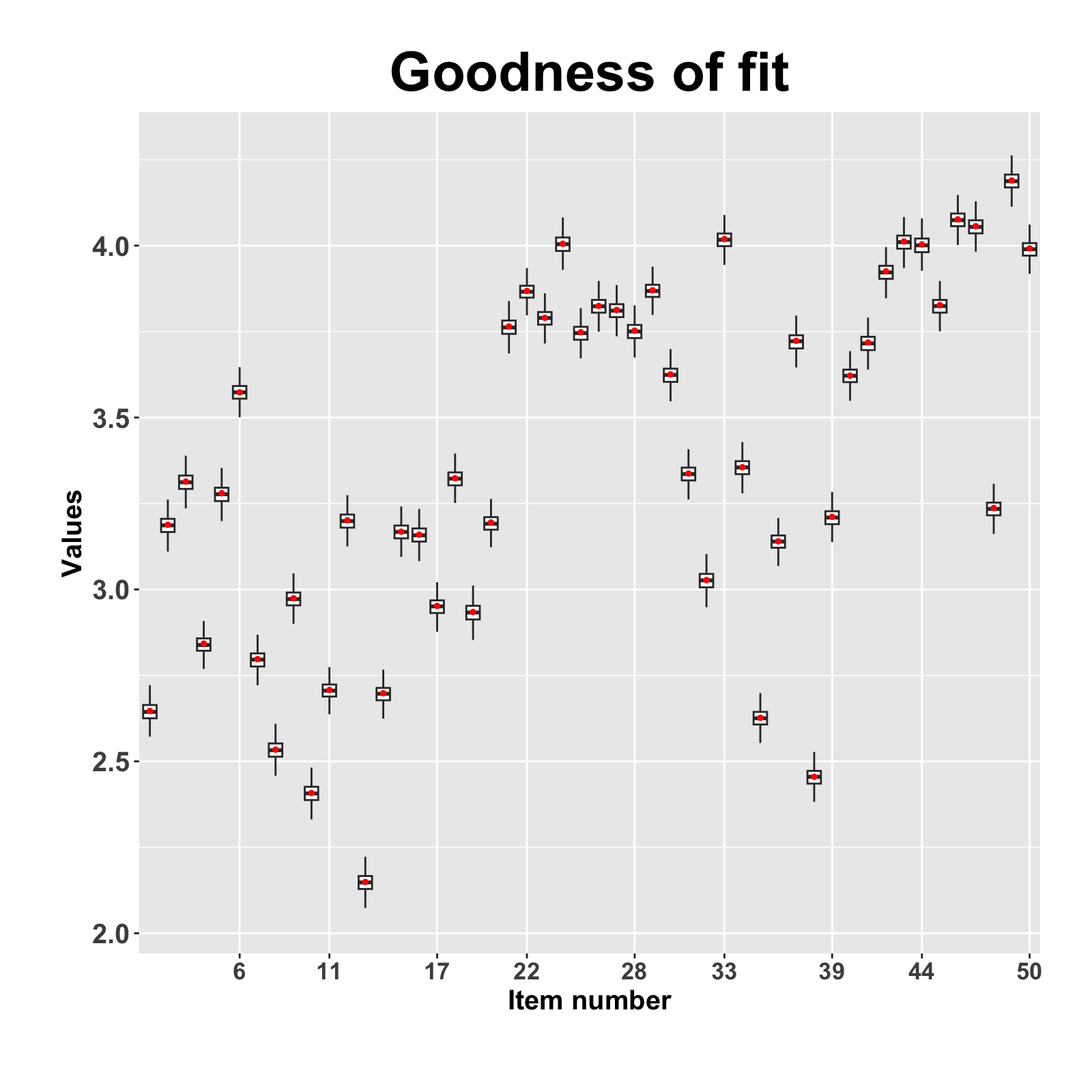

The lsirm12pl
package supplies the gof() function that assesses the goodness of fit
of the LSIRM to the item response data being analyzed. A main diagnostic
tool is a boxplot that displays the average posterior ‘predicted’
response value for each item (item-wise means) with the average
‘observed’ response value for each item indicated by red dots. When the
model fits well, the red dot is close to the midline of the boxplot. The
gof() function includes a chain.idx option to choose a specific
chain for assessing the goodness of fit. By default, the first MCMC
chain is selected (i.e. chain.idx=1). When the diagnostic() function
shows good convergence for all parameters, it does not matter which
chain is chosen because the parameter estimates must be consistent
across all chains. For illustration, we use the first MCMC chain by
setting chain.idx=1.
For binary data, the gof() function additionally offers a receiver
operating characteristic (ROC) curve. The ROC curve is a graphical
representation that assesses the performance of a binary classifier. The
area under the curve (AUC) quantifies the overall ability of the model
to distinguish between classes, with values ranging from 0.5 to 1. A
higher AUC and a curve close to the top-left corner indicate better
performance.
R > gof(lsirm_result, chain.idx = 1)

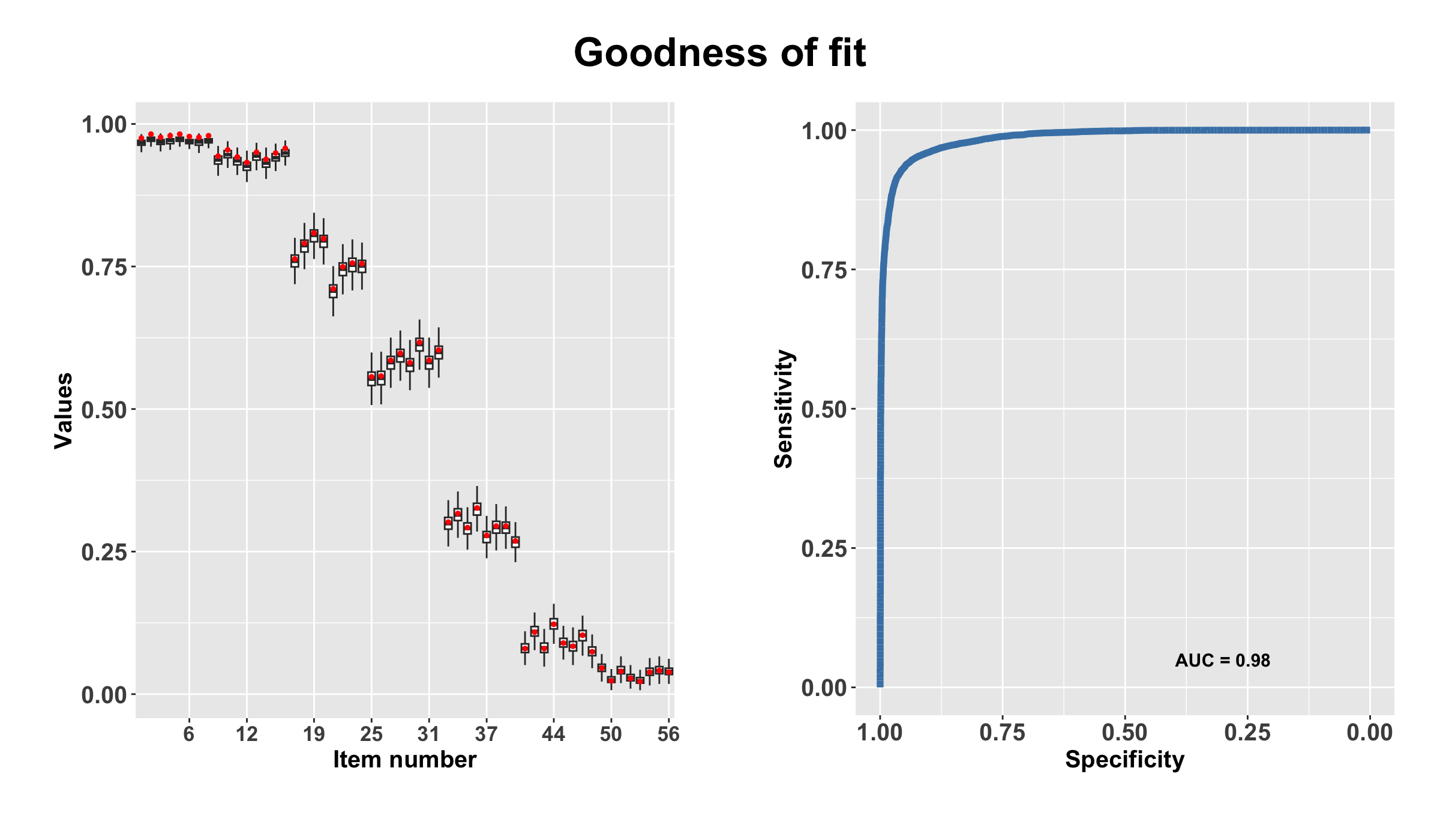

gof() function. The box plots of the average posterior predicted
response values for items (item-wise means) with the average observed
response value for each item indicated by red dots (left) and the
receiver operating characteristic (ROC) curve (right).Figure 2
presents the output of the gof() function for the TDRI dataset,
showing the results for the first MCMC chain, including both the boxplot
(left) and the ROC curve (right). In this example, all of the red dots
are closely located at the midline of the boxplot and the area under the
curve (AUC) of the ROC curve approaches 1, suggesting that the fit of
the LSIRM to the data is satisfactory.

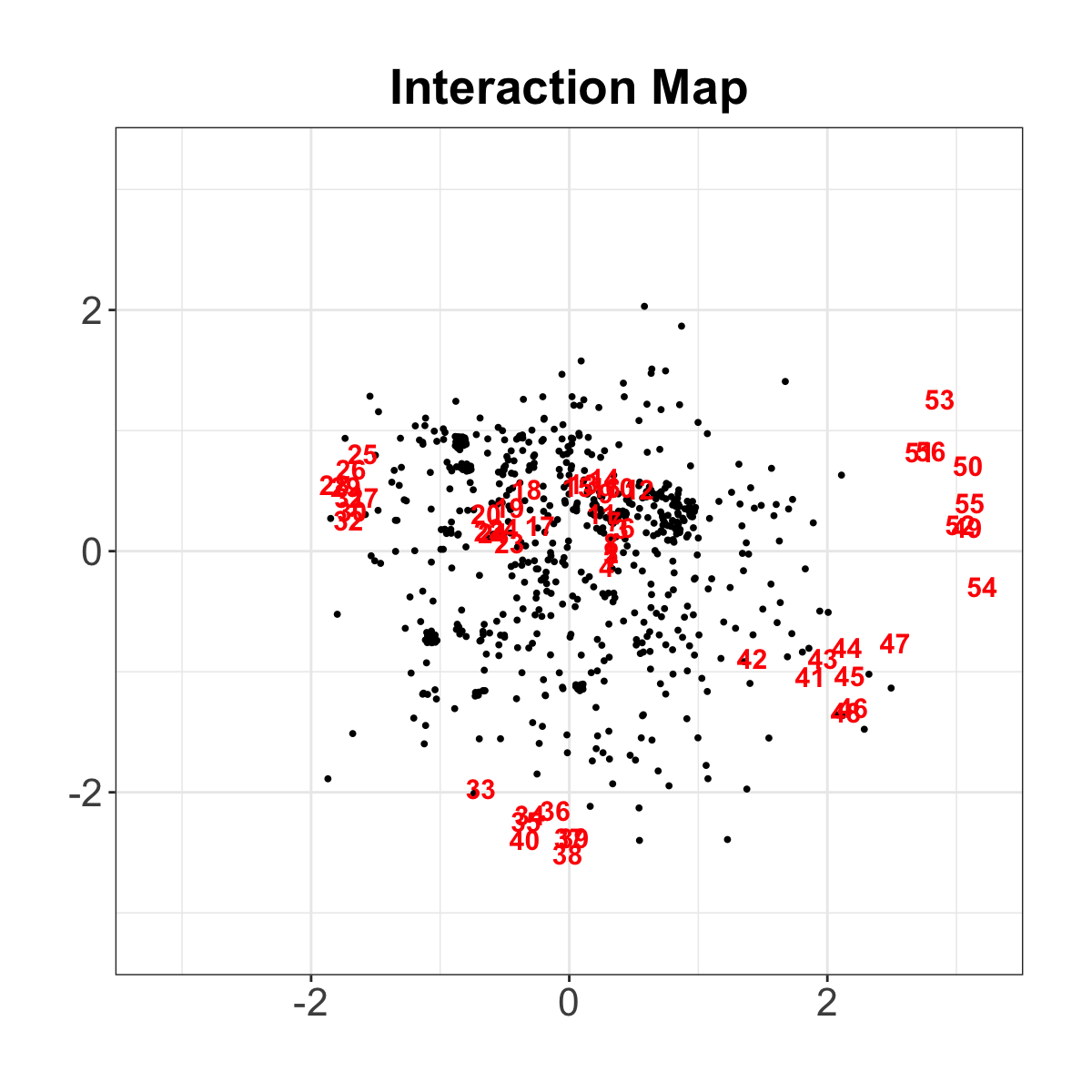

The main outcome of the LSIRM fitting is the estimates of the respondent
and item main effects and the interaction map. For a visual summary of
these outputs, the user can use the plot() function with the option
argument.
R > plot(lsirm_result, option = "beta", chain.idx = 1)
R > plot(lsirm_result, option = "theta", chain.idx = 1)

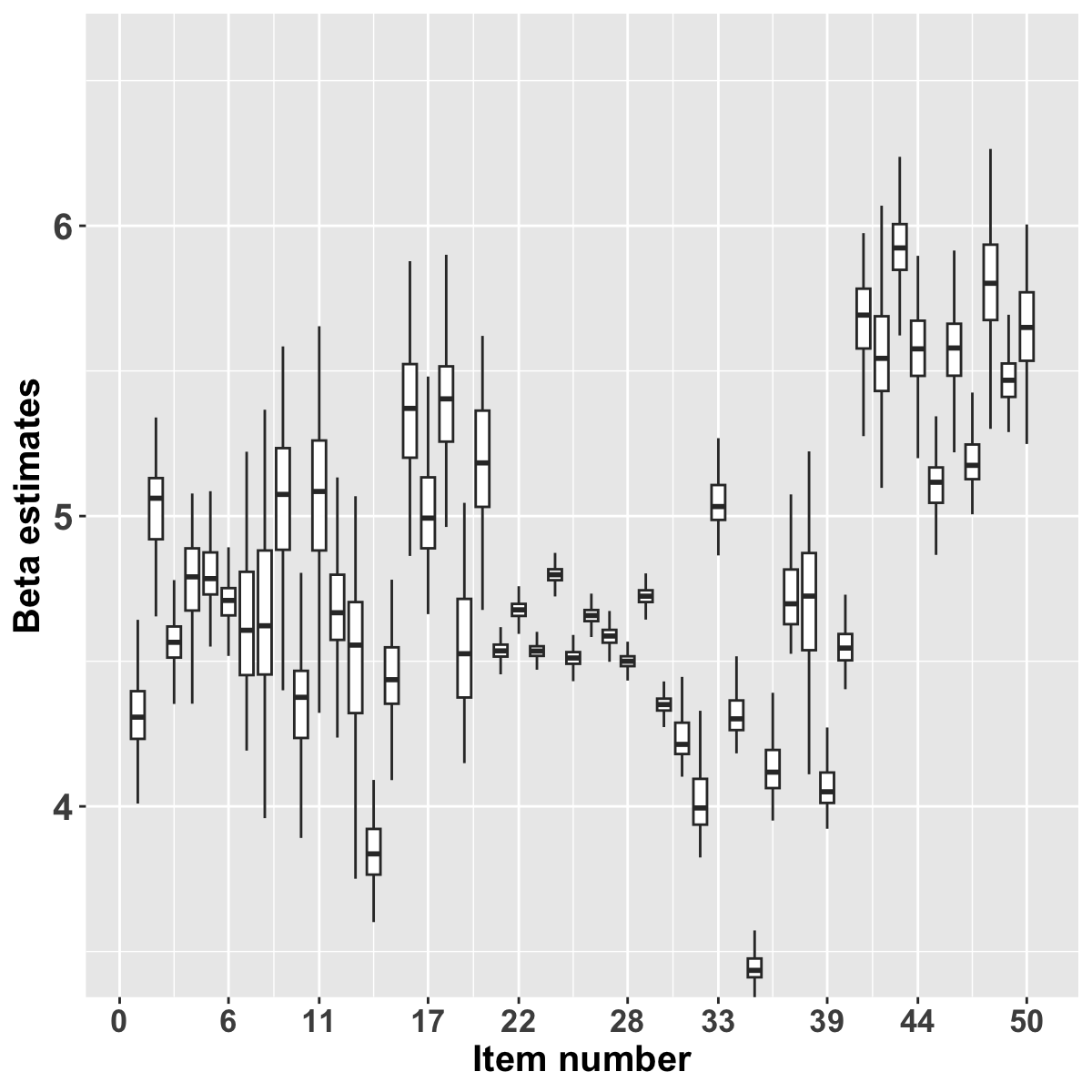

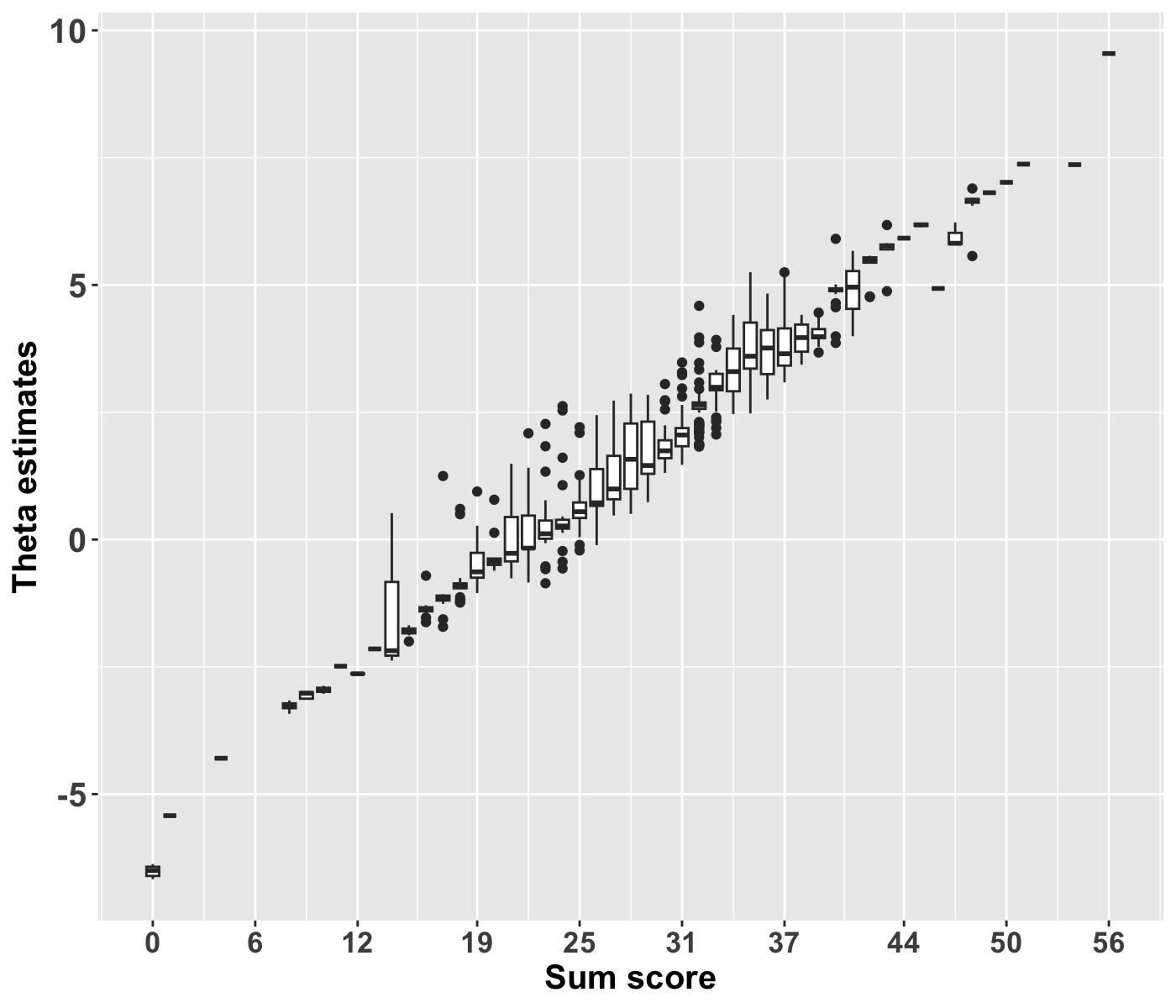

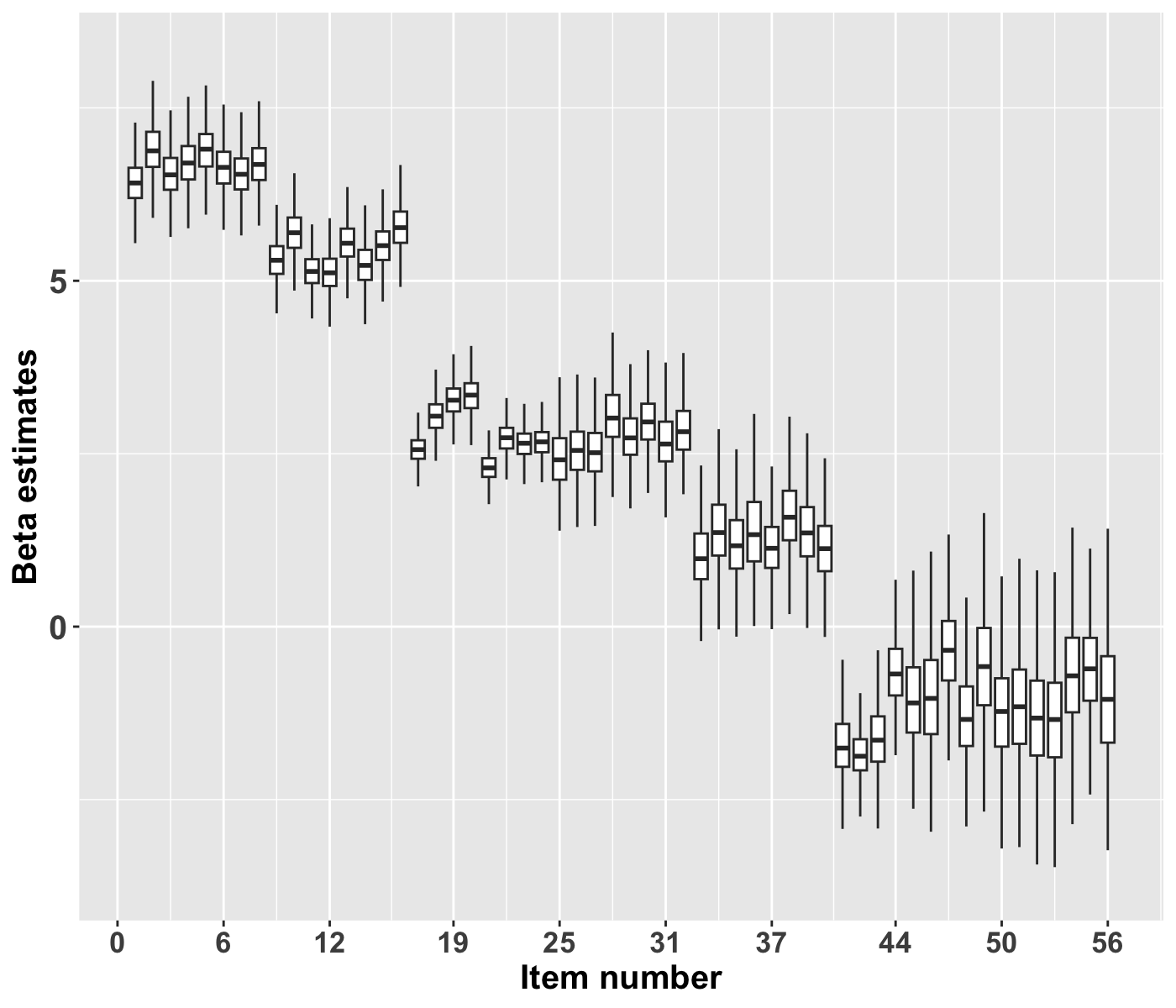

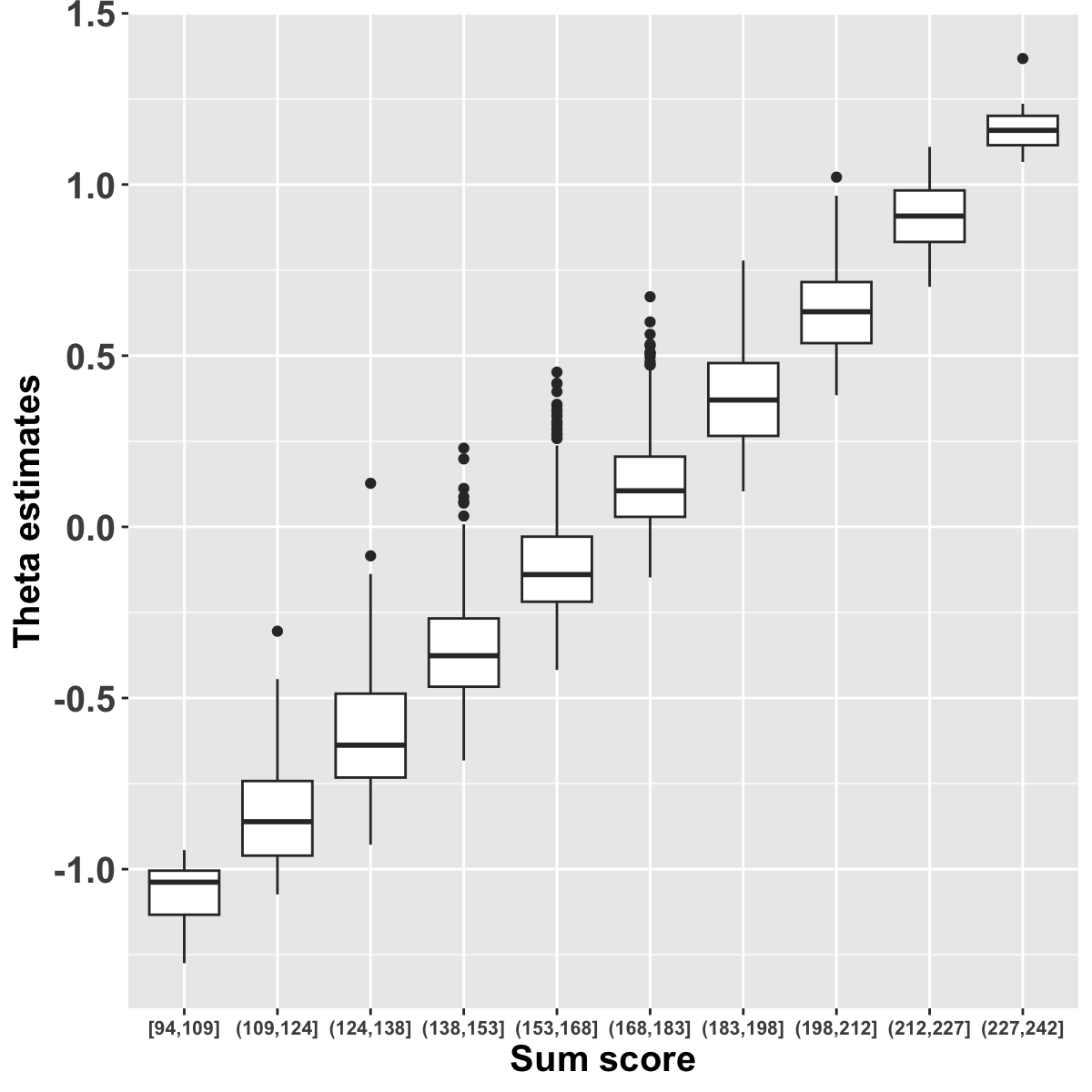

plot() function based on the 1PL LSIRM fitted to the
TDRI dataset. (a) Boxplots of the posterior samples for βi; outliers are
suppressed in the boxplots for the sake of simplicity. (b) Boxplots of
the point estimate for θk as a function
of the total sum scores of positive responses.
Figures 5 display the plot() results for
summarizing \(\beta_i\) and \(\theta_k\) by setting the option argument as
the "beta" and "theta", respectively. option="beta" generates the
boxplots of the posterior samples for \(\beta_i\), while option="theta"
generates the boxplots of the point estimates for \(\theta_k\), plotted
against the total sum scores of positive responses (ranging from 0 to
\(P\), where \(P\) is the number of items). In Figure
3, as the item number increases (from left
to right on the x axis), the \(\beta_k\) estimates decrease, indicating
that earlier items are easier. In Figure
4, individuals who correctly answer more
items (i.e., higher sum scores) have higher \(\theta_i\) estimates. It is
sensible that those who answer more items correctly have higher
\(\theta_i\) values, as \(\theta_i\) represents their ability levels.
The plot() also returns the interaction map with
option="interaction". The interaction map is created based on the
estimated latent position of the item and respondent, \(\boldsymbol{w}_i\)
and \(\boldsymbol{z}_k\), respectively. Note that the primary and unique
advantage of the LSIRM lies in deriving intuitive information from the
interaction map, based on the distances between respondents and items,
between respondents, and between items. In the interaction map, a
shorter distance between the latent position of the item \(i\)
(\(\boldsymbol{w_i}\)) and the latent position of the respondent \(k\)
(\(\boldsymbol{z_k}\)) indicates a stronger dependence (or interactions),
which implies that the respondent \(k\) is more likely to respond
correctly (or positively) to the item \(i\), given the person’s ability.
In the lsirm12pl
package, the interaction map is set to a two-dimensional space, as in
(Jeon et al. 2021), for parsimony and interpretability.
R > plot(lsirm_result, option = "interaction", chain.idx = 1)
Figure 6 (top left) displays the interaction map based on the 1PL LSIRM for the TDRI data. The latent positions of items are represented as red numbers and respondents as black dots on the map. Note that the two coordinates (dimensions) of the map do not represent specific quantities or substantive meaning, as the interaction map is simply a tool to represent respondent-by-item interactions (Jeon et al. 2021). In Figure 6, we observe that respondents are widely spread around the center of the interaction map, while the items are separated by some clusters. For example, items located in the far north, such as items 50, 52, 53, 54, and 55 (red numbers), are far from most respondents (black dots) on the map. This suggests that most respondents are less likely to respond correctly to those specific items, regardless of their ability levels. In other words, those items located in the south are difficult items, which is also confirmed in Figure 5(a).

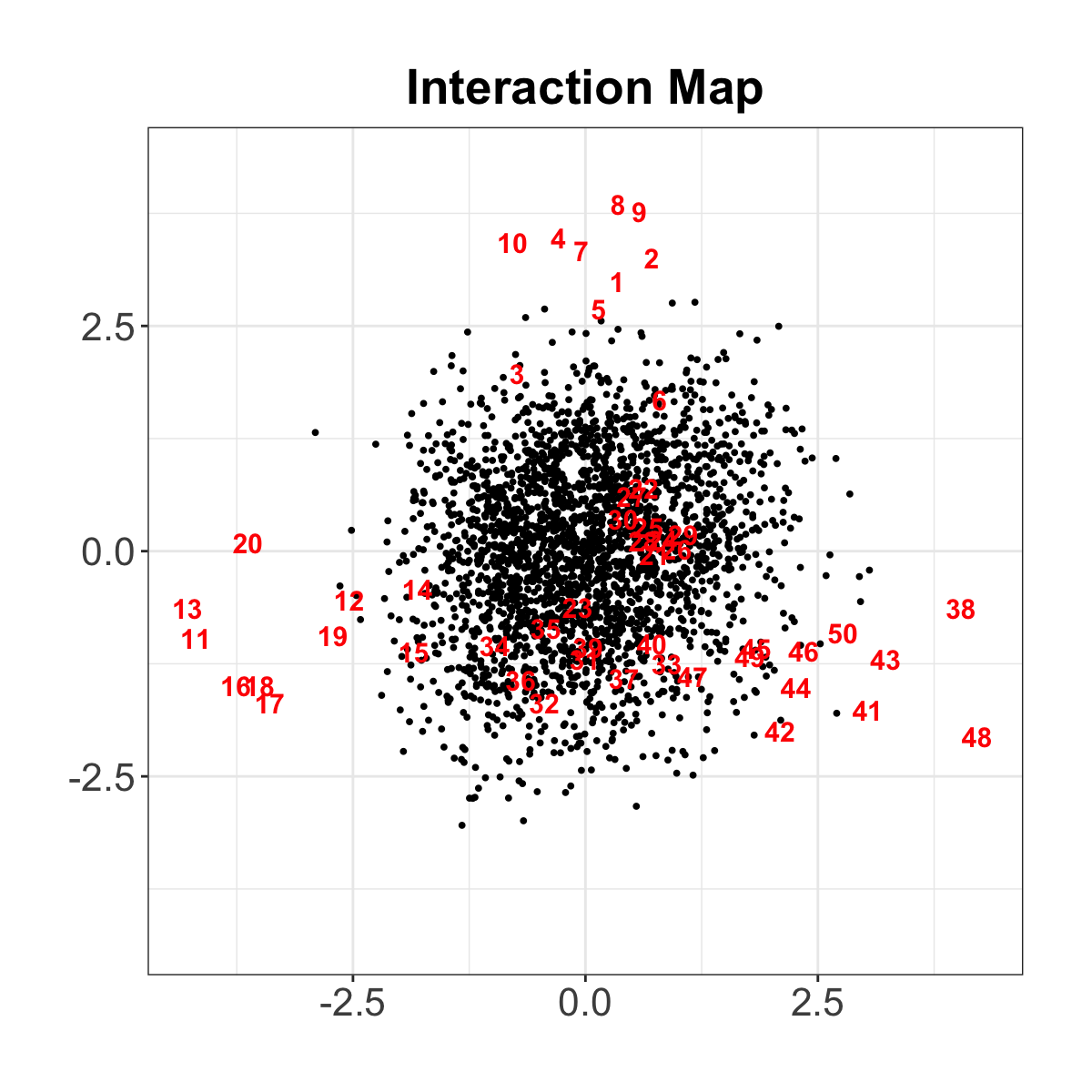

R > plot(lsirm_result, option = "interaction", rotation = TRUE, chain.idx = 1)If desired, one can rotate the interaction map to improve the
interpretability of the coordinates of the map with rotation=TRUE.
The lsirm12pl package offers the oblimin rotation (Jennrich 2002) using the GPArotation package in R (Bernaards and Jennrich 2005). Figure 7 (top left) shows the rotated version of the original map shown in Figure 6 (top right). In this example, the original and rotated maps appear pretty similar, although on the right there seems to be slight clockwise rotation compared to the one on the left; after rotation, the x- and y- coordinates may be interpreted based on the items that are closely placed to the respective coordinates.
Further, the
lsirm12pl package
offers an option to cluster latent positions of items. Two types of
clustering methods are available: spectral clustering
(Ng et al. 2001; Luxburg 2007) and the Neyman-Scott process modeling
approach (Thomas 1949; Neyman and Scott 1952; Yi et al. 2024), with cluster option as
spectral and neyman, respectively. Spectral clustering is a
technique that clusters points based on the eigenvalues of a similarity
matrix, using the spectral properties of the data to identify clusters.
The implementation of spectral clustering is based on the
kernlab package
(Karatzoglou et al. 2004) in R where the number of clusters is determined using
the average silhouette width (Batool and Hennig 2021). The Neyman-Scott point
process modeling approach is a method to cluster points in time or
space. Parent points (cluster center) are generated using a Poisson
process, with offspring points clustered around each parent based on a
defined probability distribution. The
lsirm12pl package
implements this method directly; it applies the MCMC algorithm a number
of times independently to determine the distribution of the cluster
number and cluster centers. Then, the mode of the cluster number
distribution is chosen as the optimal cluster number. With the optimal
cluster number, the cluster center that minimizes the Bayesian
information criterion is selected, and items are assigned to the nearest
cluster based on Euclidean distances.

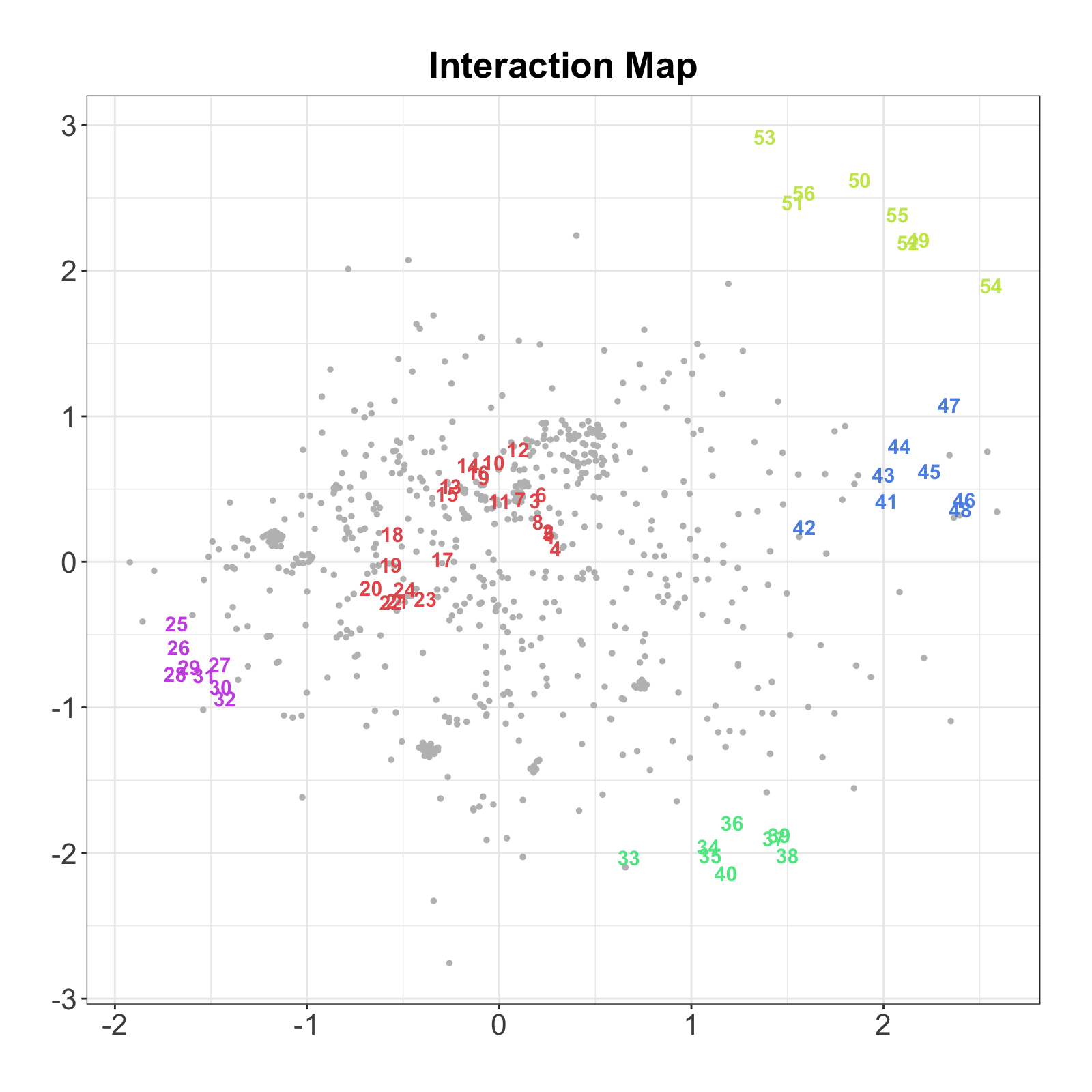

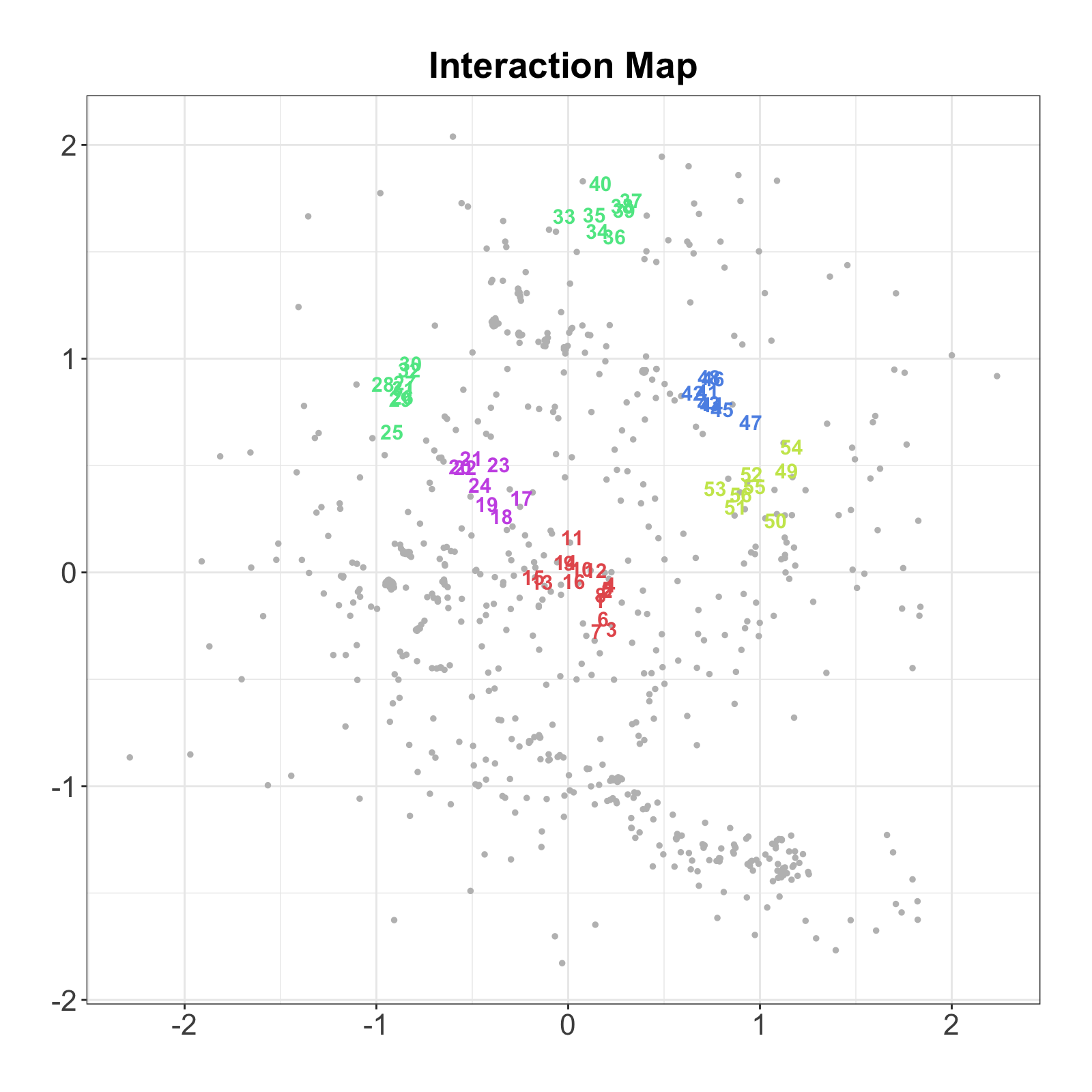

R > plot(lsirm_result, cluster = "spectral", chain.idx = 1)
Clustering result (Spectral Clustering):
group item
A 49, 50, 51, 52, 53, 54, 55, 56
B 33, 34, 35, 36, 37, 38, 39, 40
C 41, 42, 43, 44, 45, 46, 47, 48
D 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 13, 14, 15, 16, 17, 18,
19, 20, 21, 22, 23, 24
E 25, 26, 27, 28, 29, 30, 31, 32

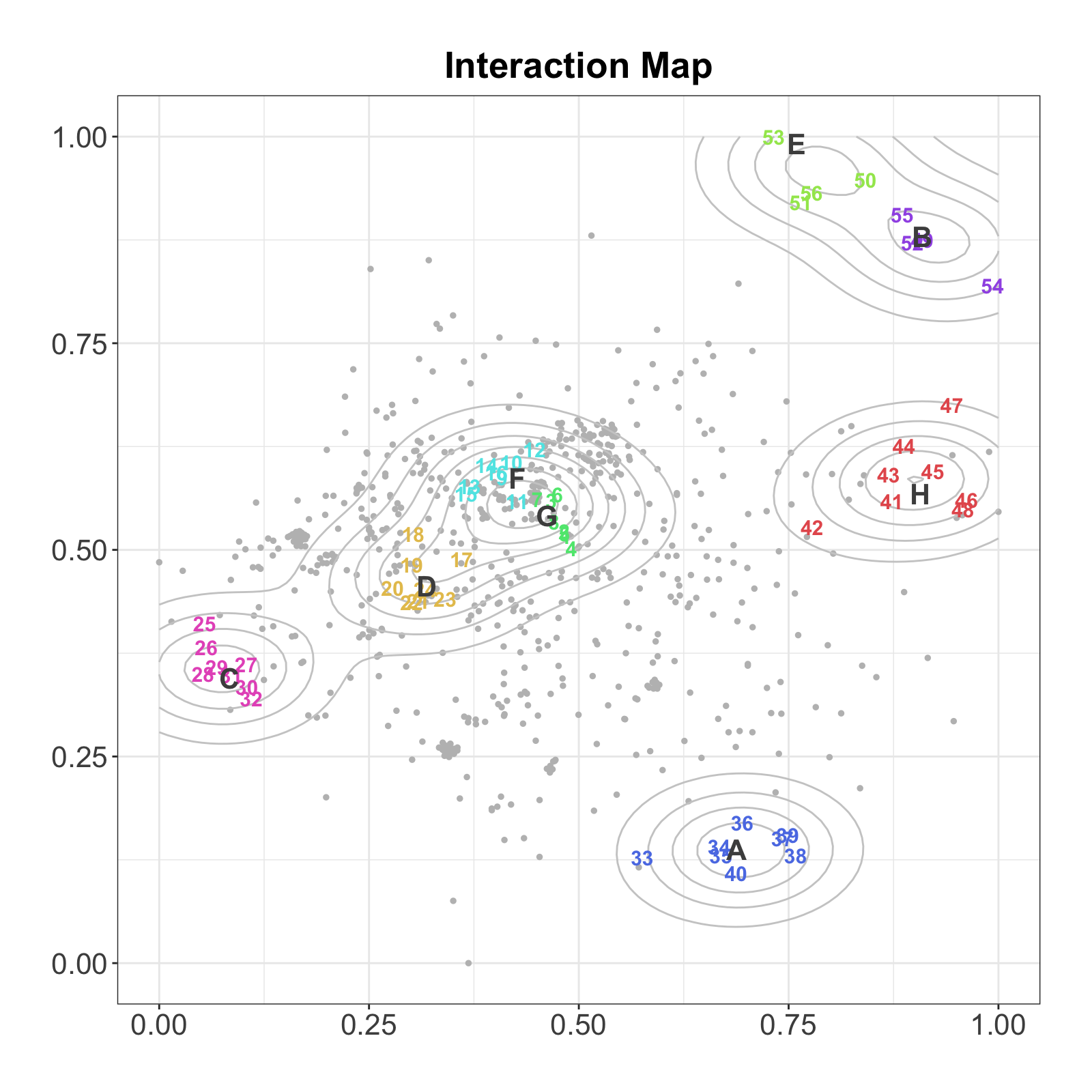

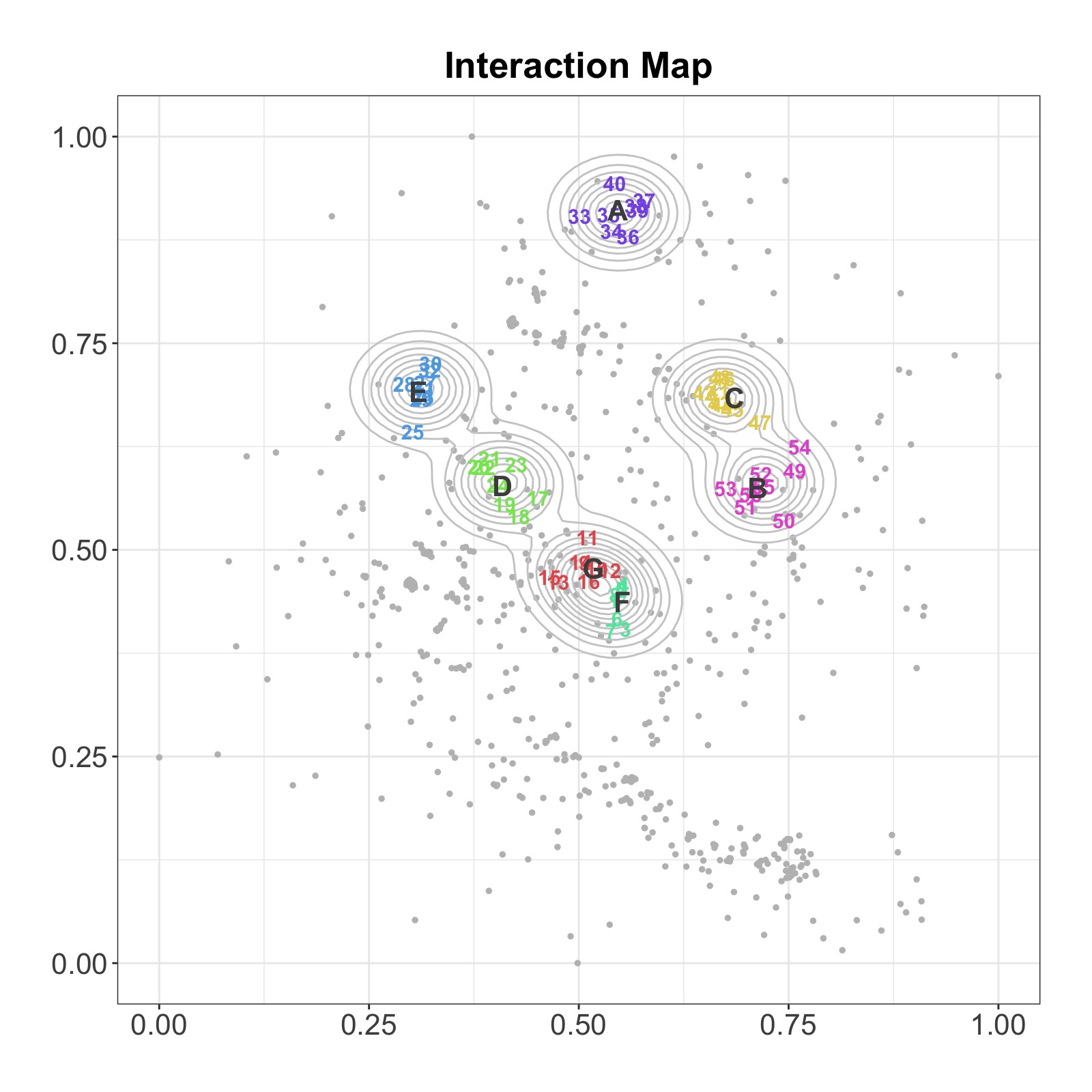

R > plot(lsirm_result, cluster = "neyman", chain.idx = 1)
|==================================================| 100%
Clustering result (Neyman-Scott process):
group item
A 33, 34, 35, 36, 37, 38, 39, 40
B 49, 52, 54, 55
C 25, 26, 27, 28, 29, 30, 31, 32
D 17, 18, 19, 20, 21, 22, 23, 24
E 50, 51, 53, 56
F 9, 10, 11, 12, 13, 14, 15, 16
G 1, 2, 3, 4, 5, 6, 7, 8

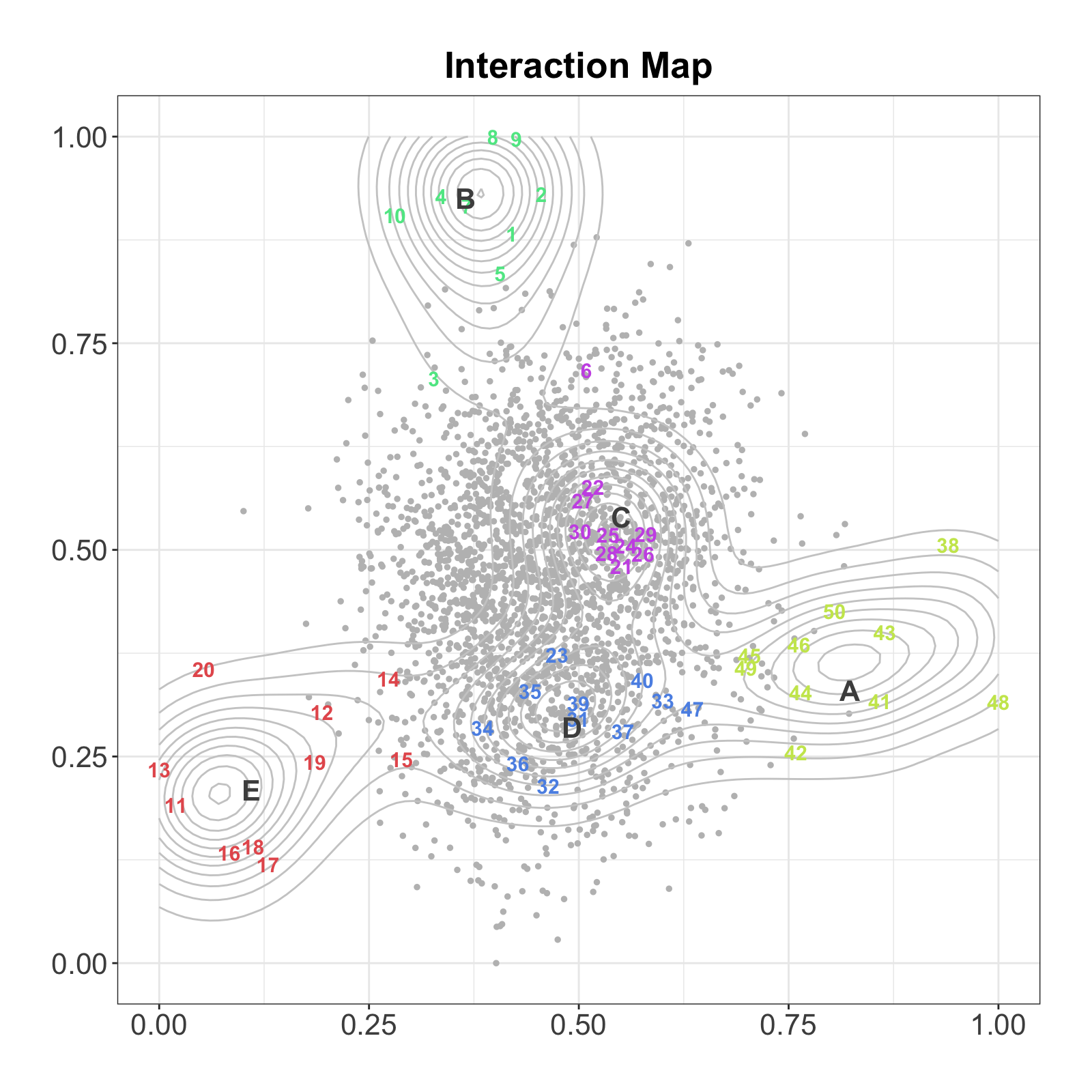

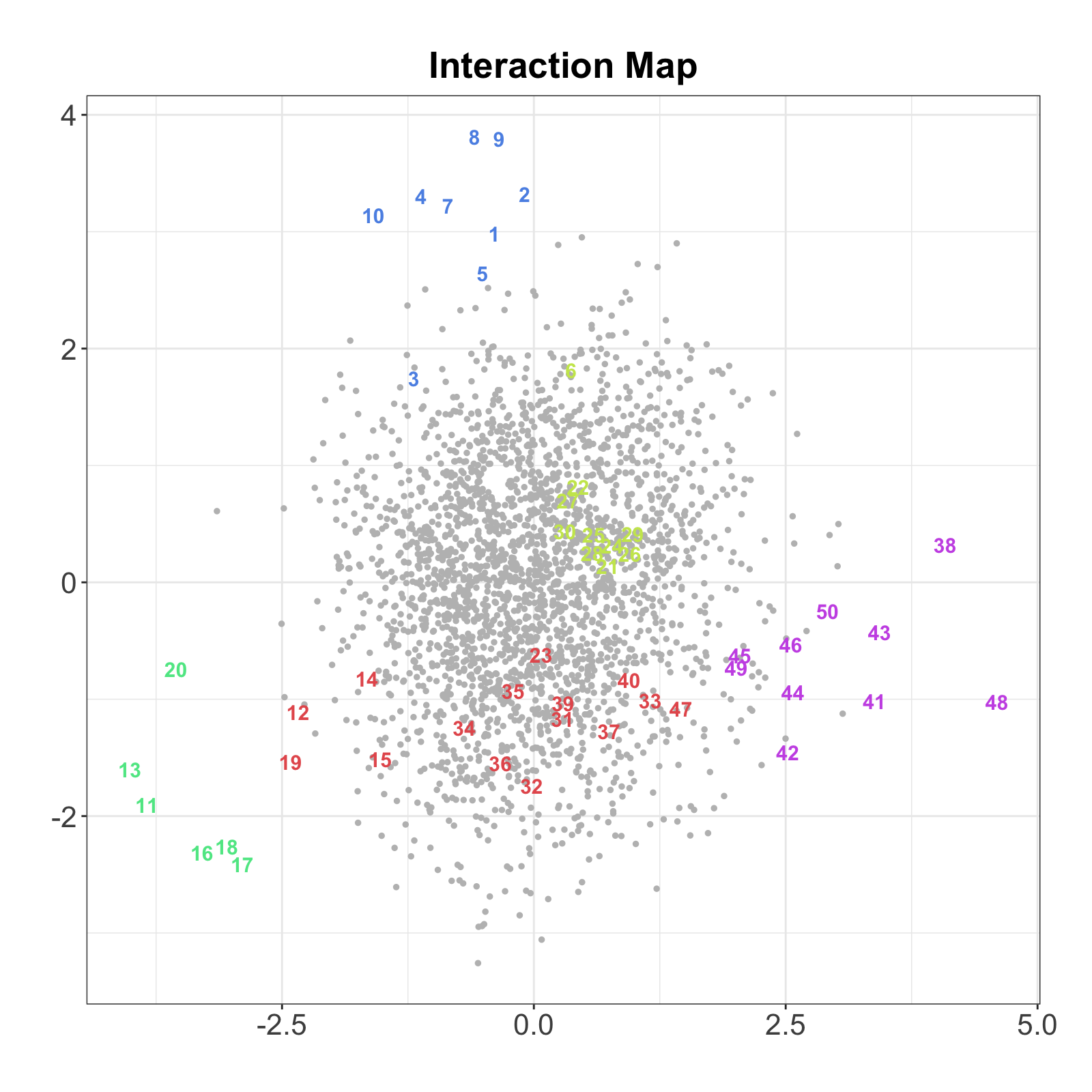

H 41, 42, 43, 44, 45, 46, 47, 48 Figures 11 and 12 are item clustering results based on spectral clustering and the Neyman-Scott process model, respectively. In both plots, the gray dots indicate respondents, where numbers in colors indicate items with different cluster memberships. The Neyman-Scott process modeling approach additionally displays the center of the item cluster (alphabets A to H) and a contour for each item cluster. In this example, the spectral clustering method identifies five clusters, while the Neyman-Scott process modeling approach identifies eight clusters. Overall, the Neyman-Scott process modeling approach further split the items near the center (red items on the left) and in the north (light green items on the left) compared to the spectral clustering method.
Flexible Modeling Options
The lsirm12pl package provides a range of flexible modeling options for the LSIRM.
First, with fixed_gamma option, one can fix the distance weight
\(\gamma\) to a constant value of 1. By doing so, the scale of the latent
space can be standardized, easing comparison between different
interaction maps. The default value of fixed_gamma option is FALSE
(i.e., \(\gamma\) is freely estimated).
R > lsirm_result <- lsirm(data ~ lsirm1pl(fixed_gamma = TRUE))Second, with spikenslab option, one can apply a model selection with
the spike-and-slab prior for the distance weight \(\gamma\)
(Ishwaran and Rao 2005). The spike-and-slab prior is a mixture of two log-normal
priors: one is densely concentrated near zero, while another is more
broadly spread across positive values. With this option, one can
determine whether \(\gamma\) is zero or not, which in turn determines
whether the distance term is needed for the data being analyzed. If
\(\gamma\) is not zero, it is evidence for item-by-respondent interactions
in the data being analyzed, and thus it would be useful to investigate
the interactions between respondents and items with the LSIRM approach.
The default value of spikenslab option is FALSE.
The posterior probability of \(\gamma\) being non-zero is indicated by the
return value of pi_estimate. A pi_estimate value greater than 0.5
suggests that \(\gamma\) is likely non zero. Note that the two options
fixed_gamma and spikenslab cannot be used simultaneously.
R > lsirm_result <- lsirm(data ~ lsirm1pl(spikenslab = TRUE))
R > lsirm_result$pi_estimate
[1] 0.9984Third, the package offers options for handling missing data. In the
context of missing data, three key assumptions are considered
(Rubin 1976): missing completely at random (MCAR), missing at
random (MAR), and missing not at random (MNAR). MCAR occurs when the
probability of missing data on a variable is unrelated to any other
measured variables or the variable itself, making the missingness
entirely random. MAR happens when the probability of missing data on a
variable is related to some of the observed data but not the missing
data itself, meaning the missingness can be explained by other observed
variables. Unlike MCAR and MAR, MNAR assumes that the missing data
mechanism depends on the unobserved data itself, making it challenging
to estimate the model without strong assumptions or additional
information about the missing data. Therefore, we focus on two types of
missing data, MCAR and MAR, in the
lsirm12pl package
with the missing_data option.
With missing_data = "mcar", the missing data are assumed to follow
MCAR and the parameters are estimated solely based on the observed
elements of the dataset being analyzed. On the other hand, with
missing_data="mar", the missing data are assumed to be MAR, and the
data augmentation algorithm (Tanner and Wong 1987) is applied to impute
missing values. With missing_data="mar", the function returns the
posterior samples of the imputed responses with imp and the
probability of a correct response with imp_estimate. Imputed values
are listed in the order of respondents. Note that all missing values
should be recoded via missing.val. The percentage of missing data in
the TDRI dataset is 30%, and missing values are replaced with 99 which
is the default coding of missing data. The missing_data option can be
used in combination with other options such as
(spikenslab = TRUE, missing_data = "mar").
R > data <- lsirm12pl::TDRI
R > data[is.na(data)] <- 99
R > lsirm_result <- lsirm(data ~ lsirm1pl(missing_data = "mcar"))
R > lsirm_result <- lsirm(data ~ lsirm1pl(missing_data = "mar"))
R > lsirm_result$imp_estimate
[1] 0.9900 0.9868 0.9768 0.9884 0.9716 0.9716
...
[997] 0.9860 0.9788 0.8240 0.9924
[ reached getOption("max.print") -- omitted 32327 entries ]

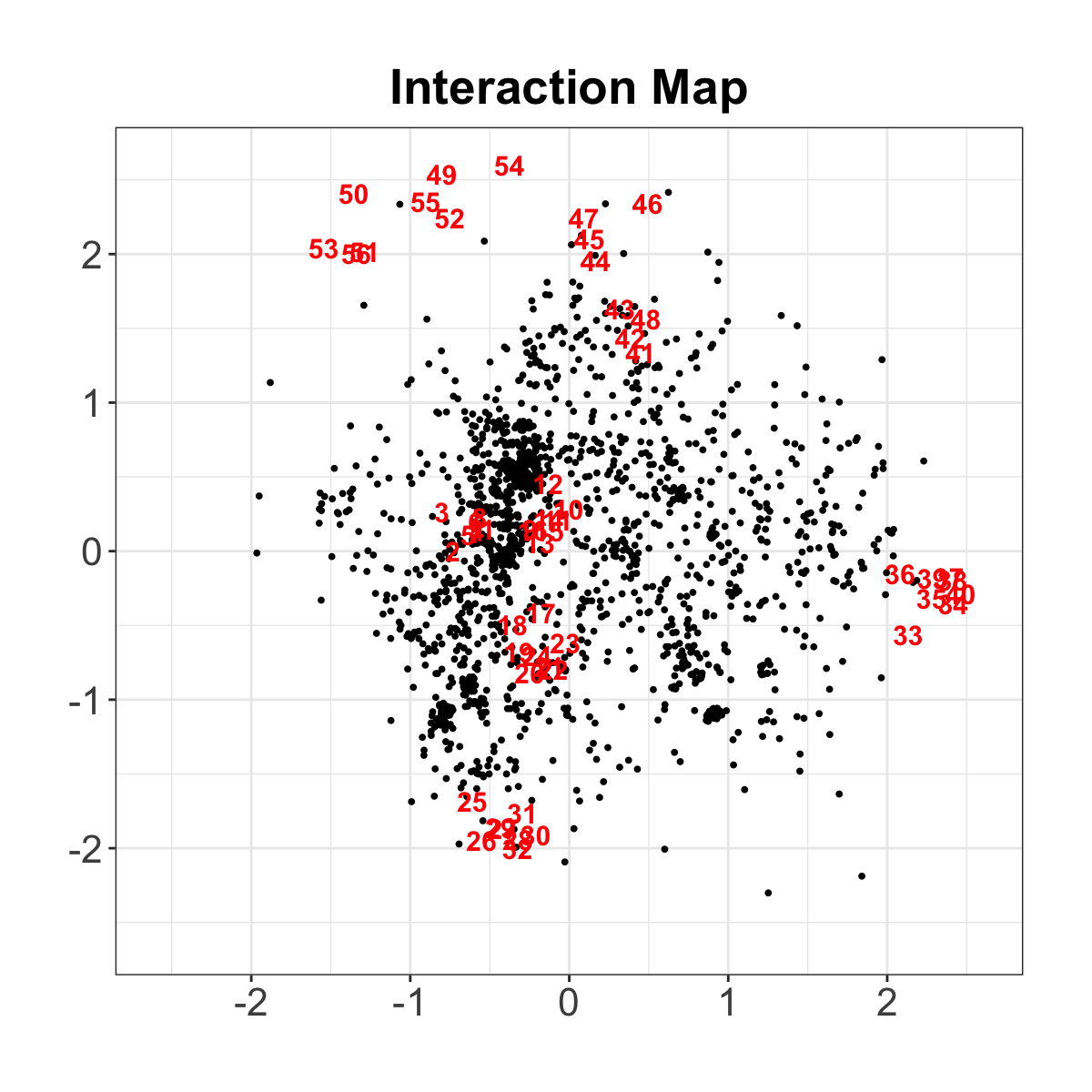

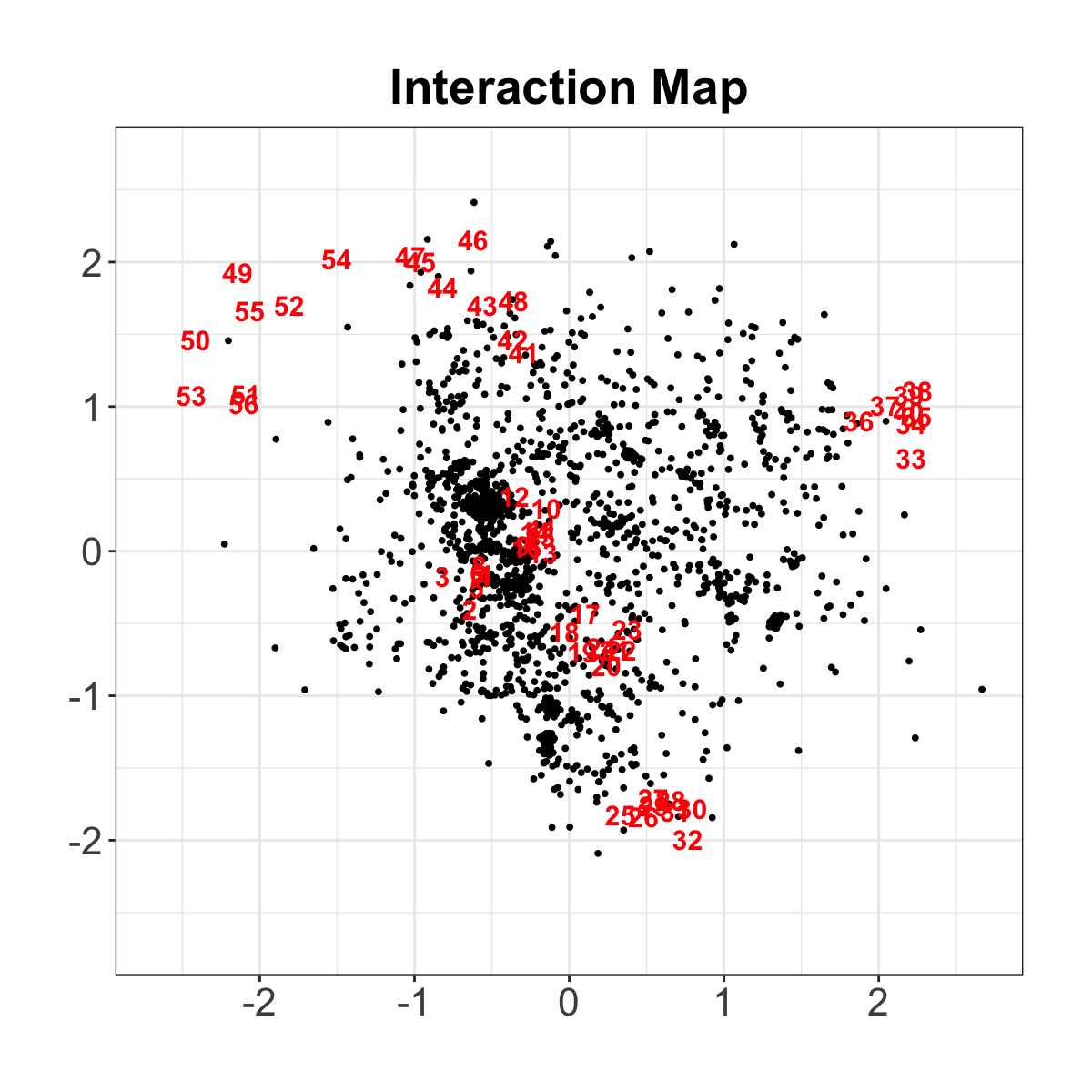

R > plot(lsirm_result, option = "interaction")Figures 10(c) and 10(d) show the resulting interaction maps with MAR and MCAR assumptions, respectively. Note that a reflection is applied to the interaction map with MCAR assumptions (c) across the y-axis to ease comparisons with the other interaction plots. Reflection or rotation does not change the interpretations of the interaction map as interpretations are based on the distances, not the positions themselves. If the interaction maps of two missing assumptions are considerably different, further investigation is necessary to determine which assumption would be more suitable for the analyzed data. In this example, the interaction maps with the missing data options are similar to the original map presented in Figure 6. Note that the original interaction map (a) is based on the complete item response data with no missing values; that is, the data includes only respondents who answered all items. In contrast, the interaction maps with the missing data option are based on MAR and MCAR assumptions. The similarity between these maps suggests that the observed only or imputed item response data provides a reasonable representation of the original item response data.
4 2pl lsirm for dichotomous data
The two-parameter LSIRM (2PL LSIRM) extends the 1PL LSIRM with item discrimination parameters.
Statistical framework
The 2PL LSIRMs the probability of a correct response by respondent \(k\) to item \(i\) as follows: \[\text{logit}\Big(\mathbb{P}(Y_{k, i}=1 | \theta_{k}, \alpha_{i}, \beta_{i}, \gamma, \boldsymbol{z_{k}, w_{i}})\Big) = \alpha_{i} \theta_{k}+ \beta_{i} - \gamma d (\boldsymbol{z_{k}}, \boldsymbol{w_{i}}), \; \; \theta_{k} \sim N(0, \sigma^2),\] where \(\theta_k\), \(\beta_i\), \({\bf z}_k\), \({\bf w}_i\) and \(\gamma\) have similar interpretations to Equation (3), while \(\alpha_i\) represents the item discrimination parameters and one of the \(\alpha_i\) parameters is fixed at 1, e.g., \(\alpha_{1} =1\) to ensure identifiability.
The observed data likelihood function under the 2PL LSIRM is given as \[\begin{aligned} \mathbb{L}\left(\boldsymbol{Y=y|\theta,\alpha,\beta,\gamma,Z,W}\right)=\prod_{k=1}^{N}\prod_{i=1}^{P}\mathbb{P}(Y_{k,i}=y_{k,i}|\theta_{k},\alpha_{i}, \beta_{i},\gamma,\boldsymbol{z_{k},w_{i}}). \label{likelihood_2pl} \end{aligned} \tag{7}\] -1cm
Parameter Estimation
Following is the posterior distribution of the 2PL LSIRM.
\[\begin{aligned}
\pi\left(\boldsymbol{\theta, \beta}, \gamma, \boldsymbol{Z, W} | \boldsymbol{Y=y} \right) & \propto \prod_{k=1}^{N}\prod_{i=1}^{P}\mathbb{P}(Y_{k,i}=y_{k,i}|\theta_{k},\alpha_{i}, \beta_{i},\gamma,\boldsymbol{z_{k},w_{i}}) \\
&\times \prod_{k=1}^N \pi(\theta_k) \times \prod_{i=1}^P \pi(\alpha_i) \times \prod_{i=1}^P \pi(\beta_i) \times \pi(\gamma) \times \prod_{k=1}^N \pi(\boldsymbol{z_{k}}) \prod_{i=1}^P \pi(\boldsymbol{w_{i}})
\end{aligned}\]
The prior distributions for \(\theta_k\), \(\beta_i\), \({\bf z}_k\),
\({\bf w}_i\), and \(\gamma\) are identical for the 1PL LSIRM. For item
discrimination parameters \(\alpha\), a log-normal distribution is used
with a mean of \(\mu_{\alpha}\) and a variance of \(\tau_{\alpha}^2\), as
\(\alpha\) is typically assumed to be positive. The argument names and
default values for the prior specification are shown in the Github site.
For the item discrimination parameters \(\alpha\), the arguments and
default values are pr_mean_alpha = 0.5, pr_sd_alpha = 1.
The conditional posterior distribution for each parameter follows the
same form as the Equation in the Github site. The jumping rule for each
parameter is given in the Github site. The default jumping rule for
\(\alpha\) is jump_alpha = 1.
An Illustrated Example
We apply the 2PL LSIRM to the TDRI data. The default settings of the 2PL LSIRM are the same as the 1PL LSIRM except for \(\alpha\). The base function for the 2PL LSIRM is
lsirm(A\(\sim\)lsirm2pl())
The 2PL LSRIRM for dichotomous data was fitted with 4 MCMC chains using
2 multi-core processors, as demonstrated in the following example code.
Similarly to the lsirm1pl results, the estimation results for the
model parameters \(\boldsymbol{\theta,\ \beta,\ \alpha}\),
\(\gamma,\ \boldsymbol{Z}\), and \(\boldsymbol{W}\) for each chain are
provided in individual lists.
R > library("lsirm12pl")
R > data <- lsirm12pl::TDRI
R > data <- data[complete.cases(data),]
R > lsirm_result <- lsirm(data ~ lsirm2pl(chains = 4, multicore = 2, seed = 2025))To diagnose the results of the 2PL LSIRM analysis, we can use the
diagnostic() function. Similarly to the diagnostic of the 1PL LSIRM,
the convergence of MCMC for each parameter can be checked using various
diagnostic tools, such as trace plots, posterior density distributions,
autocorrelation functions (ACF), and Gelman-Rubin-Brooks plots. By
setting the draw.item option to list(’beta’= c(1)), we perform
diagnostics for the \(\beta_i\) parameter of the first item (\(i=1\)).
R > diagnostic(lsirm_result,
draw.item = list(beta = c(1)),
gelman.diag = T)
Potential scale reduction factors:
Point est. Upper C.I.
beta [i1] 1 1

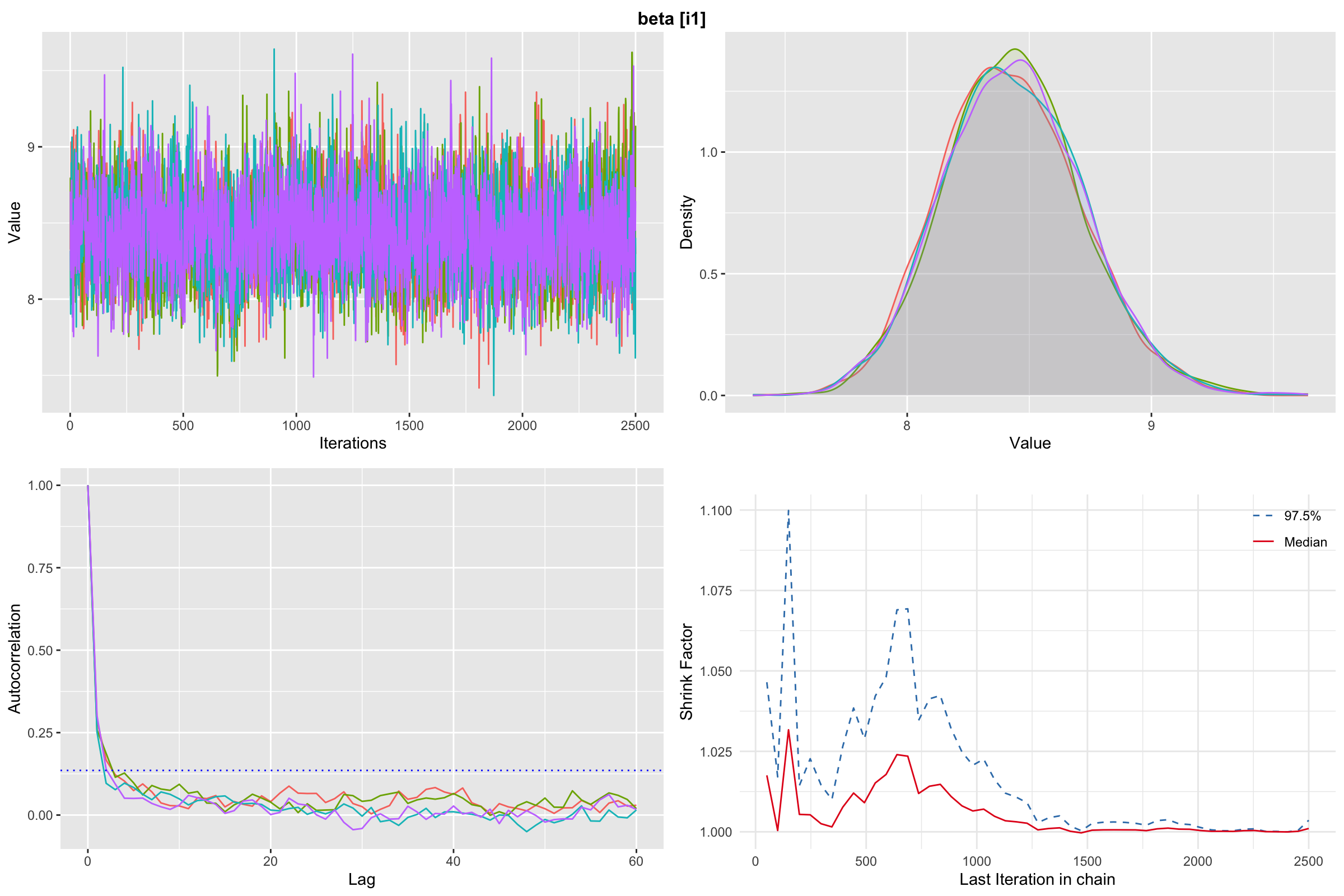

diagnostic() function
on the results of the 2PL LSIRM fitted to the TDRI dataset. The top left
is the trace plot, the top right is the posterior density plot, the
bottom left is the autocorrelation plot, and the bottom right is the
Gelman-Rubin-Brooks plot. Different colors represent different MCMC
chains.Figure 14 displays the diagnostic results for
\(\beta_1\) of the results of the 2PL LSIRM fitted to the TDRI dataset.
These plots help us assess the convergence of MCMC for \(\beta_1\). The
interpretation of each plot from the diagnostic() function is the same
as mentioned for the 1PL LSIRM in the previous Section. In Figure
14, the convergence of \(\beta_1\) was
confirmed by various diagnostic tools.
The gof() function assesses the goodness-of-fit of the LSIRM. Figure
15 visualizes
the box plots of the posterior predicted response values (item-wise
means) compared with the observed item-wise means and the ROC curve to
check the performance of the 2PL LSIRM fitted to the TDRI dataset. In
the figure, most of the red dots are located close to the midline of the
boxplots and the AUC is 0.97, indicating the fit of the 2PL LSIRM to the
TDRI dataset is satisfactory.
R > gof(lsirm_result, chain.idx = 1)
gof() function. The box plots of the average posterior predicted
response values for items against the average observed response value
for each item indicated by red dots (left) and the receiver operating
characteristic (ROC) curve (right).Similarly to the 1PL LSIRM, the plot() function can generate different
graphs for the 2PL LSIRM results with the option argument:
R > plot(lsirm_result, option = "beta", chain.idx = 1)
R > plot(lsirm_result, option = "theta", chain.idx = 1)
R > plot(lsirm_result, option = "alpha", chain.idx = 1)

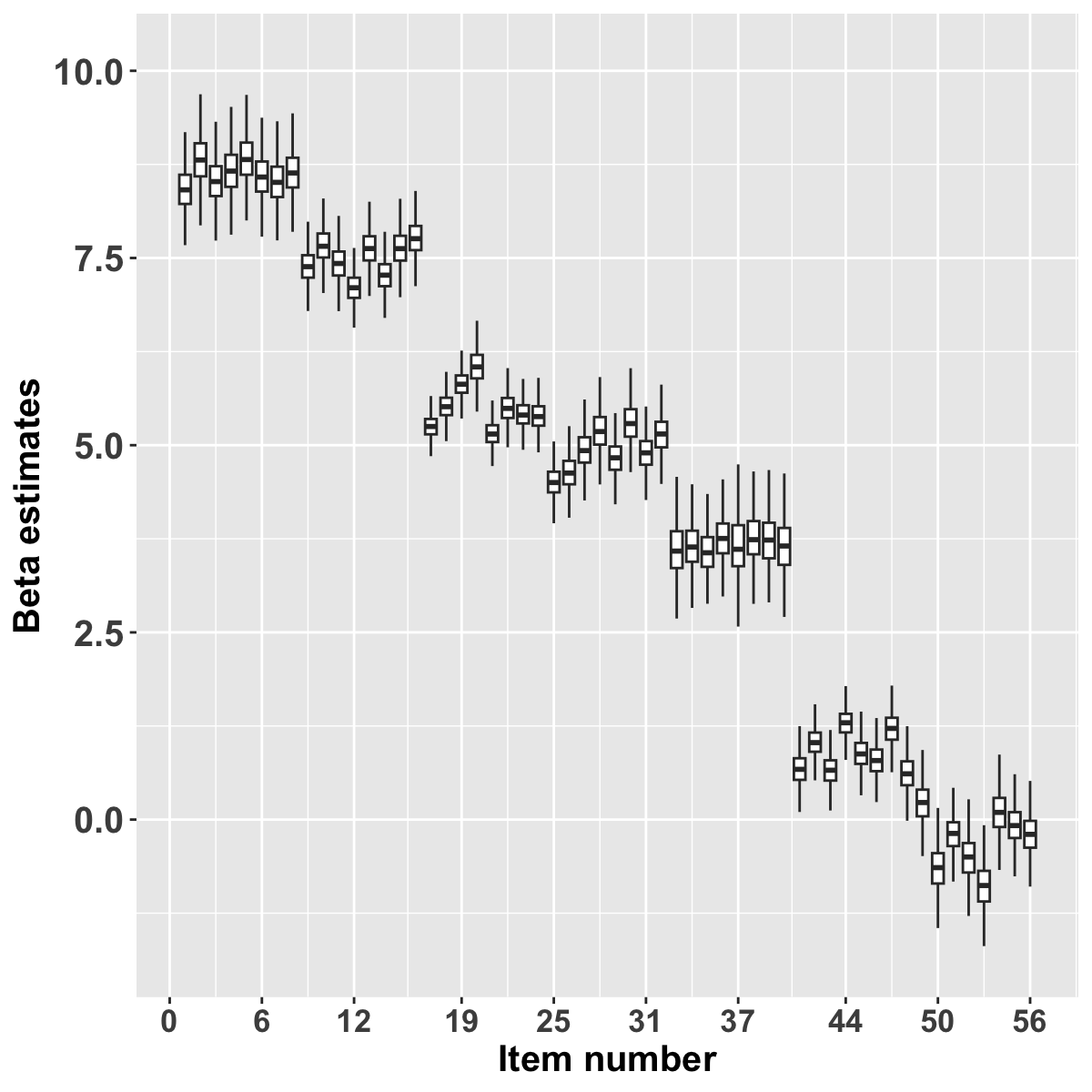

plot() function on the results of the 2PL LSIRM fitted to

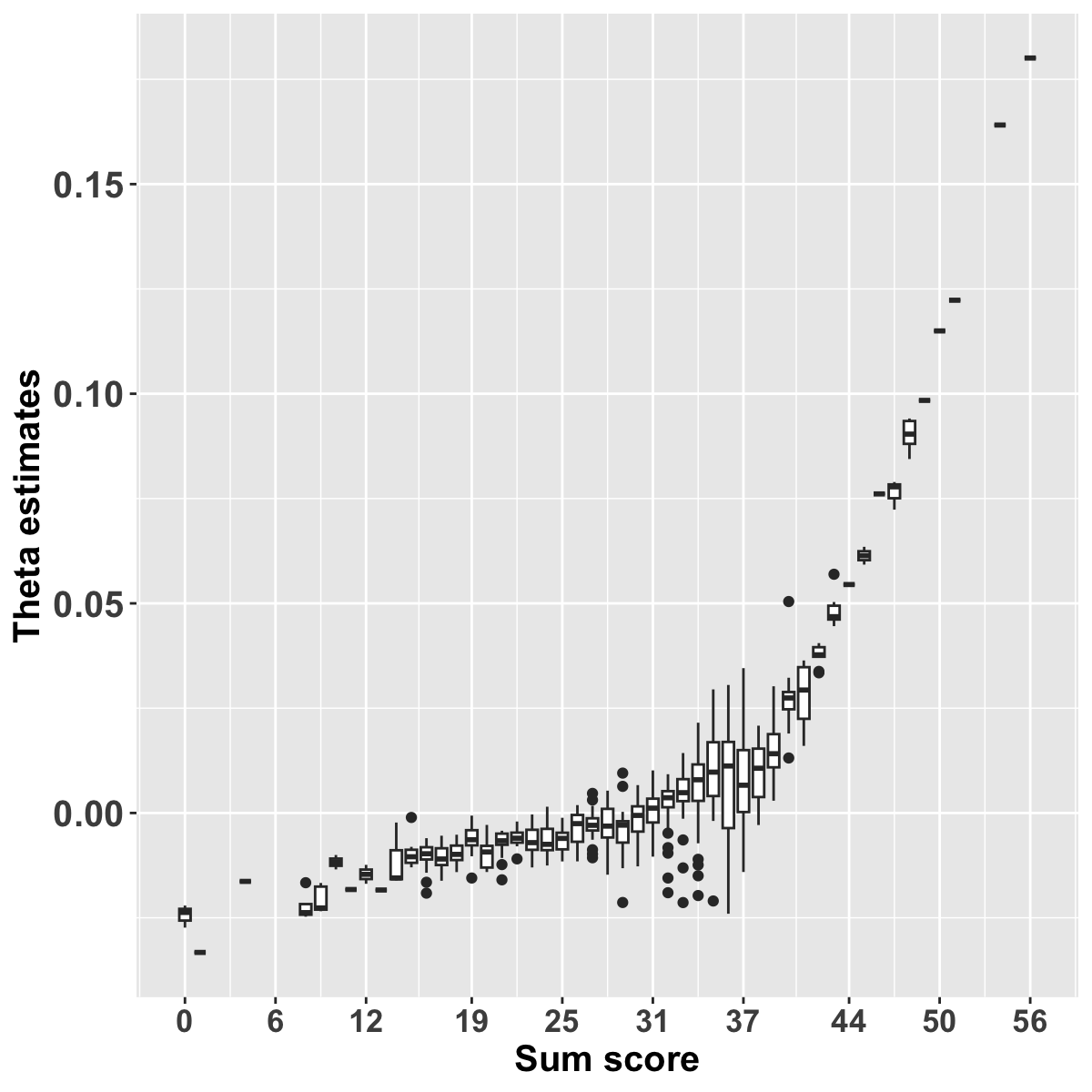

the TDRI dataset. (a) Boxplots of the posterior samples for βi. (b) Boxplots
of the point estimate for θk as a function

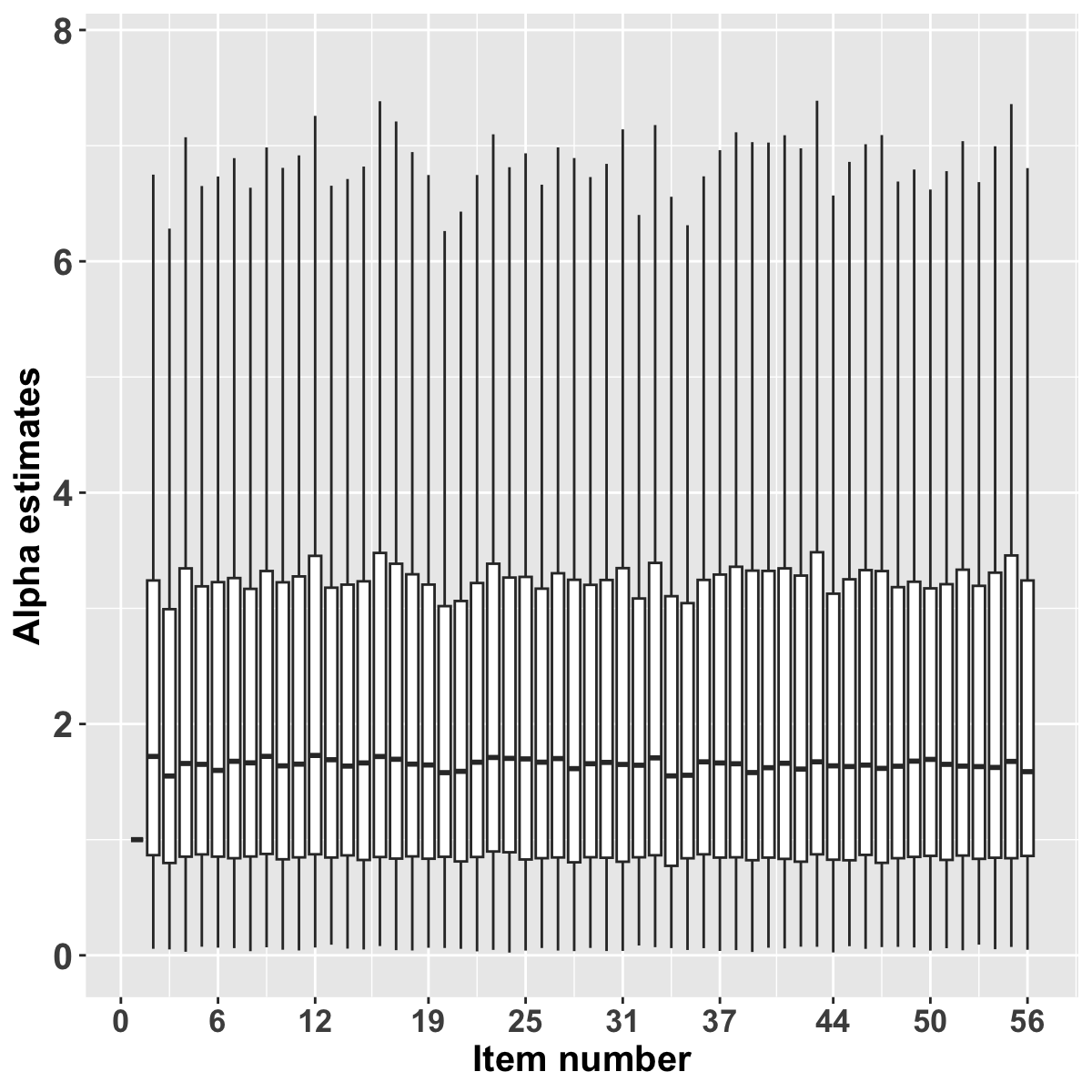

of the total sum scores of positive responses. (c) Box plots of the
posterior samples for αi.
Figure 19 illustrates the results of the
plot() function with the "beta", "theta", and "alpha" options
for the 2PL LSIRM, respectively. Similarly to the 1PL LSIRM, \(\beta_i\)
decreases for later items, indicating that later items are more
difficult than earlier items. In addition, respondents with more
correctly answered items (that is, higher sum scores) have higher
\(\theta_k\) estimates. Lastly, the distribution of the posterior samples
for \(\alpha_i\) is similar across all items.

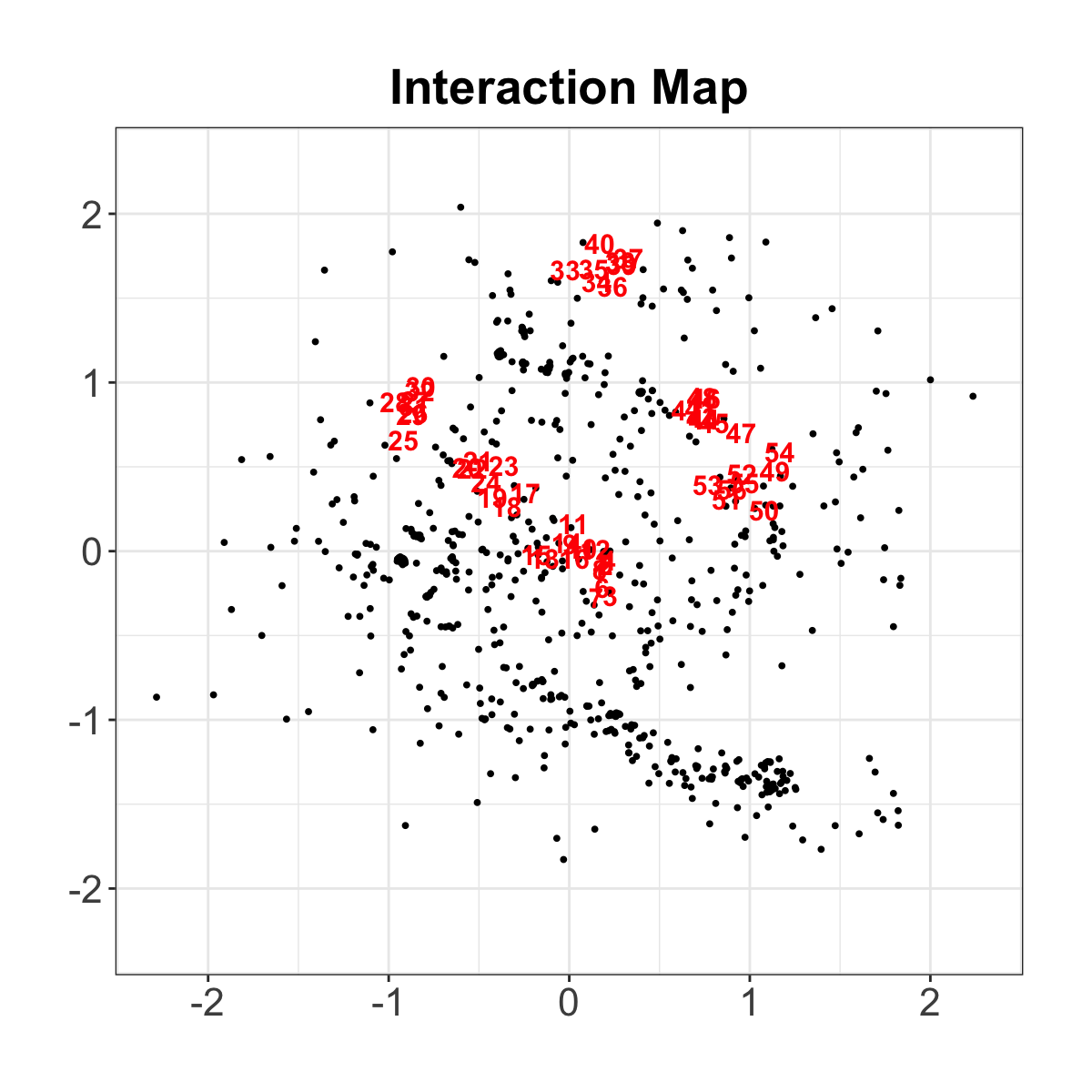

The plot() function can be used to create a visualization of the
interaction map based on the 2PL LSIRM by setting option argument as

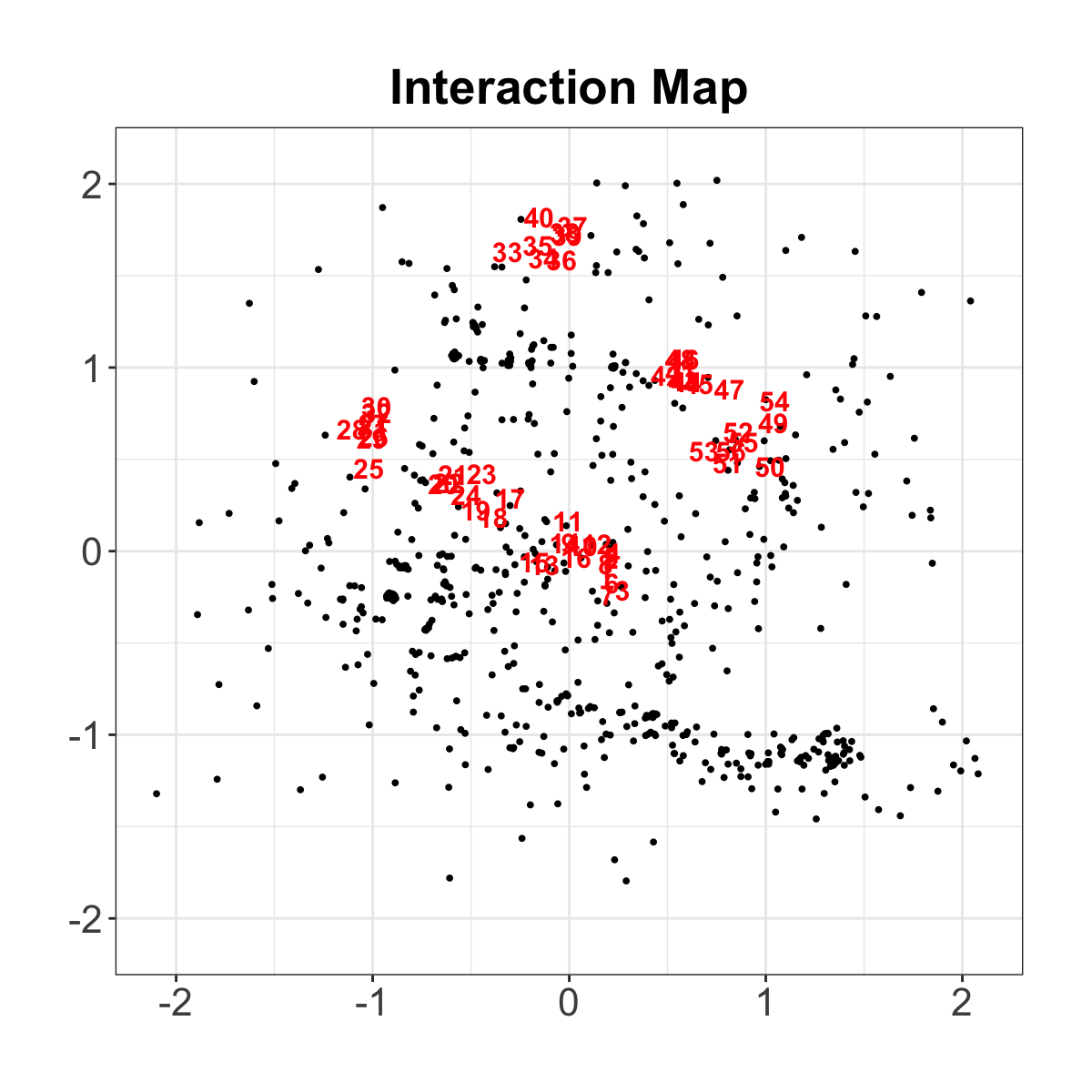

"interaction". Figures 20 and
21 show the original and rotated
interaction maps, respectively. In the interaction maps based on the 1PL
and 2PL LSIRM, we notice that although the clustering of items is
similar, the distances between item groups appear smaller in the
interaction map of the 2PL LSIRM. This difference arises because the 2PL
LSRIM takes item discrimination (\(\alpha\)) into account, which explains
some degree of item-by-person interactions. The interaction map with the
oblimin rotation (b) shows a slight clockwise rotation compared to the
original interaction map (a), similarly to the 1PL LSIRM’s case.
R > plot(lsirm_result, option = "interaction", chain.idx = 1)
R > plot(lsirm_result, option = "interaction", rotation = TRUE, chain.idx = 1)
The plot() function visualizes the cluster of the latent positions of
items by using spectral clustering and the Neyman-Scott process modeling
approach, achieved by setting the cluster option to spectral and
neyman, respectively.
R > plot(lsirm_result, cluster = "spectral", chain.idx = 1)
Clustering result (Spectral Clustering):
group item
A 49, 50, 51, 52, 53, 54, 55, 56
B 25, 26, 27, 28, 29, 30, 31, 32, 33, 34,
35, 36, 37, 38, 39, 40
C 41, 42, 43, 44, 45, 46, 47, 48
D 1, 2, 3, 4, 5, 6, 7, 8, 9, 10,
11, 12, 13, 14, 15, 16
E 17, 18, 19, 20, 21, 22, 23, 24
R > plot(lsirm_result, cluster = "neyman", chain.idx = 1)
|==================================================| 100%
Clustering result (Neyman-Scott process):
group item
A 33, 34, 35, 36, 37, 38, 39, 40
B 49, 50, 51, 52, 53, 54, 55, 56
C 41, 42, 43, 44, 45, 46, 47, 48
D 17, 18, 19, 20, 21, 22, 23, 24
E 25, 26, 27, 28, 29, 30, 31, 32
F 1, 2, 3, 4, 5, 6, 7, 8
G 9, 10, 11, 12, 13, 14, 15, 16
Figure 23 and 24 display the result of spectral clustering and the Neyman-Scott process approach, respectively. The interpretation of gray dots, numbers, alphabets, and contours is the same as the 1PL LSIRM case. Spectral clustering resulted in 5 clusters, whereas the Neyman-Scott process approach resulted in 7 clusters. That is, the Neyman-Scott process approach identified more item groups than the spectral clustering. The overall clustering results are similar to the 1PL LSIRM case.
The flexible modeling options discussed with the 1PL LSIRM can be
applied to the 2PL LSIRM. That is, fixed_gamma fixes the distance
weight \(\gamma\) to 1 and spikenslab assigns a spike and slab prior to
\(\gamma\). Additionally, the two missing data options,
missing_data = "mcar" and missing_data = "mar", are available for
the 2PL LSIRM.
R > lsirm_result <- lsirm(data ~ lsirm2pl(fixed_gamma = TRUE))
R > lsirm_result <- lsirm(data ~ lsirm2pl(spikenslab = TRUE))
R > lsirm_result <- lsirm(data ~ lsirm2pl(missing_data = "mcar"))
R > lsirm_result <- lsirm(data ~ lsirm2pl(missing_data = "mar"))5 Lsirm for continuous item responses data
We consider an extension of the LSIRM for continuous item response data (LSIRM-continuous), which is done by using an appropriate link function following the generalized linear model framework (McCullagh and Nelder 2019).
Statistical framework
Consider the continuous item response data consisting of the \(N \times P\) matrix \(\boldsymbol{Y} = \left\{ y_{k,i} \right\} \in \mathbb{R}^{N\times P}\). By choosing the identity link function for continuous item responses, the 1PL LSIRM-continuous is given as follows: \[\begin{aligned} y_{k,i} \mid \boldsymbol{\theta}, \boldsymbol{\beta}, \boldsymbol{\gamma},\boldsymbol{Z}, \boldsymbol{W},\sigma_{\epsilon}^2 = \theta_{k}+\beta_{i}-\gamma d (\boldsymbol{z_{k}},\boldsymbol{w_{i}}) + \epsilon_{k,i}, \; \; \theta_{k} \sim N(0, \sigma^2), \; \; \epsilon_{k,i} \sim N (0, \sigma_{\epsilon}^2). \end{aligned}\] where \(\theta_k\) and \(\beta_i\) are the main effects of the respondent \(k\) and the item \(i\), respectively. \(\boldsymbol{z_k}\) and \(\boldsymbol{w_i}\) are the latent positions of the respondent \(k\) and the item \(i\), respectively. An additional error term \(\epsilon_{k,i} \sim N(0, \sigma_{\epsilon}^2)\) explains residuals unexplained by the 1PL LSIRM-continuous. A shorter distance between \(\boldsymbol{w_i}\) and \(\boldsymbol{z_k}\) indicates that the respondent \(k\) is likely to give a higher response value to item \(i\) given the main effects of the respondent and the item.
It is straightforward to extend the 1PL LSIRM-continuous to the 2PL version by adding item discrimination (or slope) parameters \(\alpha_i\). The 2PL LSIRM-continuous for \(y_{k,i}\) is given as follows: \[\begin{aligned} y_{k,i} \mid \boldsymbol{\theta},\boldsymbol{\alpha}, \boldsymbol{\beta}, \boldsymbol{\gamma},\boldsymbol{Z}, \boldsymbol{W},\sigma_{\epsilon}^2 = \alpha_{i}\theta_{k}+\beta_{i}-\gamma d (\boldsymbol{z_{k}},\boldsymbol{w_{i}}) + \epsilon_{k,i}, \; \; \theta_{k} \sim N(0, \sigma^2), \; \; \epsilon_{k,i} \sim N (0, \sigma_{\epsilon}^2). \end{aligned}\] The interpretations of the model parameters in the 2PL LSIRM-continuous are similar to the case of the 1PL LSIRM-continuous and the 2PL LSIRM. For model identifiability, one of the item slopes is fixed to 1, e.g., \(\alpha_{1} =1\).
The likelihood function of the 1PL LSIRM-continuous is given as \[\begin{aligned} \mathbf{L}\left(\boldsymbol{Y=y|\theta,\beta},\gamma,\boldsymbol{Z,W},\sigma_{\epsilon}^2\right) & =\prod_{k=1}^{N}\prod_{i=1}^{P}\mathbf{L}(Y_{k, i}=y_{k, i}|\theta_{k}, \beta_{i},\gamma,\boldsymbol{z_{k},w_{i}},\sigma_{\epsilon}^2), \\ & = \prod_{k=1}^{N}\prod_{i=1}^{P} N(y_{k, i,};\theta_k +\beta_i - \gamma || {\boldsymbol{z_k}} - {\boldsymbol{w_i}} ||, \sigma_{\epsilon}^2), \end{aligned}\] and the likelihood function of the 2PL LSIRM-continuous is given as \[\begin{aligned} \mathbf{L}\left(\boldsymbol{Y=y|\theta,\alpha,\beta},\gamma,\boldsymbol{Z,W},\sigma_{\epsilon}^2\right) & = \prod_{k=1}^{N}\prod_{i=1}^{P} N(y_{j, i};\alpha_i\theta_k +\beta_i - \gamma|| {\boldsymbol{z_k}} - {\boldsymbol{w_i}} ||, \sigma_{\epsilon}^2). \end{aligned}\]
-0.75cm
Parameter Estimation
Following is the posterior distribution of LSRIM-continuous. \[\begin{aligned} \pi\left(\boldsymbol{\theta, \beta}, \gamma, \boldsymbol{Z, W}, \sigma_{\epsilon}^2 | \boldsymbol{Y=y} \right) &\propto \prod_{k=1}^{N}\prod_{i=1}^{P}N(y_{k, i,};\theta_k +\beta_i - \gamma || {\boldsymbol{z_k}} - {\boldsymbol{w_i}} ||, \sigma_{\epsilon}^2) \\ &\times \prod_{k=1}^N \pi(\theta_k) \times \prod_{i=1}^P \pi(\beta_i) \times \pi(\gamma) \times \prod_{k=1}^N \pi(\boldsymbol{z_{k}}) \times \prod_{i=1}^P \pi(\boldsymbol{w_{i}}) \times \pi(\sigma_{\epsilon}^2) \end{aligned}\] The priors of the model parameters in the LSIRM-continuous are set the same as the priors for the LSIRM. For the error term \(\sigma_{\epsilon}^2\), we set the prior as follows: \[\begin{aligned} \sigma_{\epsilon}^{2}|a_{\sigma_{\epsilon}},b_{\sigma_{\epsilon}} & \sim\text{Inv-Gamma}(a_{\sigma_{\epsilon}},b_{\sigma_{\epsilon}}),\ a_{\sigma_{\epsilon}}>0,\ b_{\sigma_{\epsilon}}>0. \end{aligned}\] The conditional posterior distributions of the LSIRM-continuous are similar to the LSIRM, which are given in the Github site. The jumping rule defaults remain the same as in the binary case (shown in the Github site).
An Illustrated Example
We demonstrate the application of the LSIRM-continuous using the Big Five Personality Test (FPT) dataset (Goldberg 1992), which is included in the package. Data were collected from 1,015,342 respondents using an interactive online personality test from 2016 to 2018. The “Big-Five Factor Markers” from the international personality item pool were used in the test, which consists of 50 questions with response categories 1 = disagree, 3 = neutral, and 5 = agree based on a five-point Likert scale. Negatively worded items were reverse-coded. For illustration purposes, we randomly selected a sample of 3,000 respondents from the original data. We treated the ordinal item responses as continuous data, which is a common practice in applied research and is generally considered acceptable for other models, such as factor analysis.
The main fitting function for running the 1PL and 2PL LSIRM-continuous is identical to the 1PL and 2PL LSIRM for binary data. The function automatically identifies the data type and applies the appropriate models. Following is the code for data pre-processing and 1PL LSIRM-continuous fitting.
R > data <- lsirm12pl::BFPT
R > data[(data==0)|(data==6)] = NA
R > reverse <- c(2, 4, 6, 8, 10, 11, 13, 15, 16, 17,
18, 19, 20, 21, 23, 25, 27, 32, 34,
36, 42, 44, 46)
R > data[, reverse] <- 6 - data[, reverse]
R > data <- data[complete.cases(data),]
R > head(data)
EXT1 EXT2 EXT3 ... OPN8 OPN9 OPN10
1 2 3 2 ... 2 4 4
2 1 3 3 ... 4 3 4
3 4 3 3 ... 2 4 4
5 1 4 3 ... 3 5 3
6 1 3 2 ... 3 5 3
8 3 5 4 ... 4 3 4
R > lsirm_result <- lsirm(data ~ lsirm1pl(niter = 25000, nburn = 5000, nthin = 10,
jump_beta = 0.08, jump_theta = 0.3,
jump_gamma = 1.0,
chains = 4, multicore = 2, seed = 2025))To ensure convergence of the parameters, a different number of
iterations and jumping rules of parameters are applied in this example.
The estimated results for each chain are returned in the list containing
estimated information on
\(\boldsymbol{\theta,\ \beta},\ \gamma,\ \boldsymbol{Z,\ W},\ {\sigma}\),
and \(\sigma_\epsilon\). The functions summary(), diagnostics(), and
gof() described for the 1PL LSIRM can be applied similarly to obtain a
summary, diagnosis, and goodness-of-fit results, respectively.
R > diagnostic(lsirm_result, draw.item = list(beta = c("AGR1")))
diagnostic()
function on the results of the 1PL LSIRM-continuous fitted to the FPT
dataset. The top left is the trace plot, the top right is the posterior
density plot, the bottom left is the autocorrelation plot, and the
bottom right is the Gelman-Rubin-Brooks plot. Different colors represent
different MCMC chains.Figure 26 displays the diagnostic results for
\(\beta_{AGE_1}\) obtained using the diagnostic() function. The results
suggest the convergence of \(\beta_{AGE_1}\) is achieved for this model.
Figure 27 shows
the result of the goodness of fit assessment for the continuous example
data. Unlike binary data, ROC is not available for continuous data, so
the results of the gof() function include only the boxplots of the
average predicted response values (item-wise means) against the observed
item-wise means (marked with red dots). In this example, the red dots
are located close to the midlines of the boxplots, implying a
satisfactory model fit.
R > gof(lsirm_result, chain.idx = 1)
gof() function. The box plots of the average
posterior predicted response value for items against the average
observed response value for each item indicated by red dots.Same as before, the plot() function can be used to summarize the
parameter estimate of \(\beta_i\) and \(\theta_k\).
R > plot(lsirm_result, option = "beta", chain.idx = 1)
R > plot(lsirm_result, option = "theta", chain.idx = 1) Figure 28 shows the boxplots of the posterior samples for \(\beta_i\). The parameter estimate of \(\beta_{35}\) is the smallest , while the estimates for \(\beta_{41}\) to \(\beta_{50}\) are relatively high. Figure 29 shows the boxplots of the point estimates of \(\theta_k\) as a function of the sum scores of the observed responses binned into 10 groups to prevent overlap and improve readability on the x-axis. As expected, higher sum scores are aligned with higher \(\theta_k\) values (indicating socially desirable characteristics).
plot() function on the 1PL LSIRM-continuous fitted to the
FPT dataset. (a) Boxplots of the posterior samples for βi. (b) Boxplots
of the point estimates of θk as a function
of the total sum scores of the responses binned into 10 groups

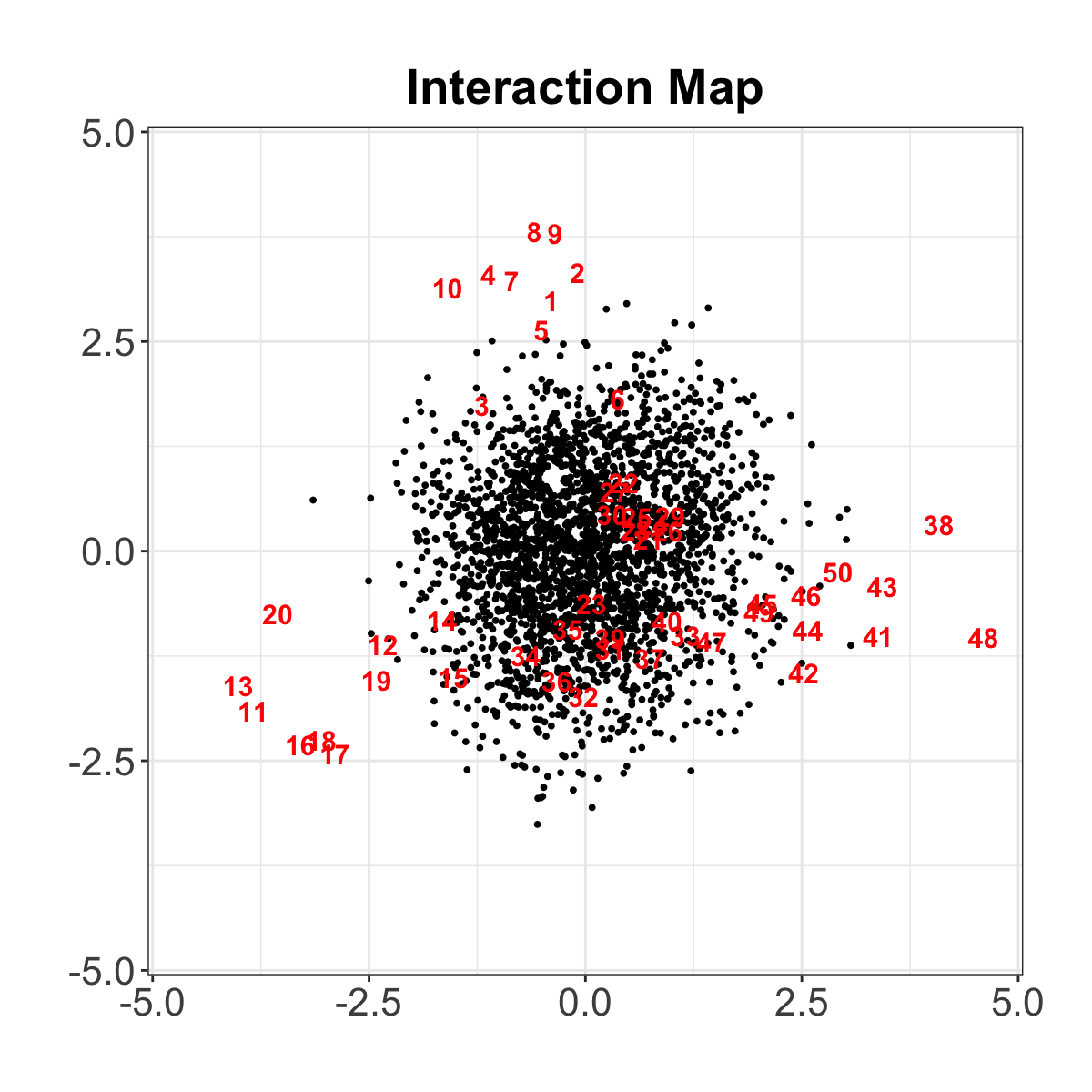

Figure 31 illustrates the interaction map derived from the 1PL LSIRM-continuous. In the interaction map, the latent positions of the respondents are positioned around the center, while the items are scattered in a triangular pattern showing roughly three clusters (in the north, west, and east) in addition to the cluster around the center. The original interaction map is slightly rotated counterclockwise in the rotated interaction map, so that the items are more closely placed to the two coordinates.
R > plot(lsirm_result, chain.idx = 1)
R > plot(lsirm_result, rotation = TRUE, chain.idx = 1)
Figure 34 and Figure 35 depict the result of spectral clustering and the Neyman-Scott process modeling approach for the BFPT example dataset, respectively. Gray dots, numbers with colors, alphabets, and contours have the same interpretations as the clustering results presented earlier with the binary LSIRM models. In Figure 35, the items in cluster C, highlighted in purple and located near the center of the interaction map, are closer to the latent positions of most people compared to other items. This implies that these items are more likely to receive higher response values. Conversely, items in clusters that are positioned farther from the center, such as clusters A, B, and E, are distant from many (but different groups of) respondents, indicating they are likely to receive lower response values by those who are far away from the corresponding item clusters.
R > plot(lsirm_result, cluster = "spectral", chain.idx = 1)
Clustering result (Spectral Clustering):
group item
A 11, 13, 16, 17, 18, 20
B 38, 41, 42, 43, 44, 45, 46, 48, 49, 50
C 1, 2, 3, 4, 5, 7, 8, 9, 10
D 6, 21, 22, 24, 25, 26, 27, 28, 29, 30
E 12, 14, 15, 19, 23, 31, 32, 33, 34, 35,
36, 37, 39, 40, 47
R > plot(lsirm_result, cluster = "neyman", chain.idx = 1)
|==================================================| 100%
Clustering result (Neyman-Scott process):
group item
A 38, 41, 42, 43, 44, 45, 46, 48, 49, 50
B 1, 2, 3, 4, 5, 7, 8, 9, 10
C 6, 21, 22, 24, 25, 26, 27, 28, 29, 30
D 23, 31, 32, 33, 34, 35, 36, 37, 39, 40, 47
E 11, 12, 13, 14, 15, 16, 17, 18, 19, 20
The flexible modeling options discussed with the binary LSIRM can be applied to the functions for the LSIRM-continuous.
R > lsirm_result <- lsirm(data ~ lsirm1pl(fixed_gamma = TRUE))
R > lsirm_result <- lsirm(data ~ lsirm1pl(spikenslab = TRUE))
R > lsirm_result <- lsirm(data ~ lsirm1pl(missing_data = "mcar"))
R > lsirm_result <- lsirm(data ~ lsirm1pl(missing_data = "mar"))6 Conclusion
In this paper, we introduced the R package lsirm12pl for estimating the LSIRM (Jeon et al. 2021) and its extensions. The LSIRM is a powerful extension of conventional IRT models that allow for the estimation and visualization of potential interactions between respondents and items in an interaction map, a low dimensional Euclidean space. The original LSIRM framework was proposed for binary item response data based on the 1PL IRT base model. To broaden its applicability, we extended the original LSIRM to cover different response types and model specifications. Further, we added several useful options, e.g., for handling missing data, item clustering, and model assessment.
It is worth noting that one may observe some variability in clustering results across multiple chains. Such variability stems from at least three factors: First, clustering is an unsupervised method, meaning that results are not uniquely determined and may naturally vary across Markov chains. Second, we apply the Neyman-Scott Process clustering to the posterior distributions of the LSIRM model, and the clustering outcomes are therefore directly influenced by the estimated LSIRM results. Third, Bayesian models inherently incorporate uncertainty, reflected in the posterior distributions and subsequently in the clustering outcomes. Having said that, we noted in our empirical analysis that the overall clustering structure was pretty stable across multiple chains. For critical applications, we recommend implementing a consensus clustering approach by aggregating results across multiple chains to identify the most robust and stable groupings.
A fully Bayesian approach was used for model estimation with a Metropolis-Hastings-within-Gibbs sampler. The lsirm12pl package offers default estimation settings for priors, jumping rules, number of iterations, burn-ins, and thinning. The default estimation setting works reasonably well in a broad range of situations, but users can manually revise the estimation settings if desired. In addition, the package lsirm12pl offers convenient supplemental functions to evaluate, summarize, visualize, diagnose, and interpret the estimated results. We provided detailed illustrations of the package with real data examples available in the package. We hope that these illustrations guide researchers in using the lsirm12pl package for the analysis of their own datasets.
The R package
lsirm12pl is our
first step in making the LSIRM approach more applicable and usable in
practice. The code is written using
Rcpp
(Eddelbuettel and François 2011; Eddelbuettel 2013; Eddelbuettel and Balamuta 2018) and
RcppArmadillo
(Eddelbuettel and Sanderson 2014) in R for efficient computation. For example, in our first
data example with 726 respondents and 56 test items, the computation
time for one chain using a single core lsirm1pl was 1.93 minutes on an
Apple M1 laptop. We provide additional details of our package
implementation in the package GitHub site
(https://github.com/jiniuslab/lsirm12pl).
We will continue to update the package by incorporating additional
modeling, data analysis, and visualization options to make the
lsirm12pl package
more useful in a wider range of situations. For example, we are
currently engaged in the development of other extensions, such as for
ordinal and longitudinal data. As advancements are made, we will
systematically include them in the software package. This ongoing
development will further enhance the utility and applicability of the
LSIRM in various practical scenarios.
7 Acknowledgement
We thank the Editor, Associate Editor, and reviewers for their constructive comments. We also thank Dr. Won Chang for constructive comments on our work. This work was partially supported by the National Research Foundation of Korea [grant number NRF-2020R1A2C1A01009881, RS-2023-00217705, RS-2024-00333701; Basic Science Research Program awarded to IHJ], [grant number NRF-2025S1A5C3A0200632411; awarded to IHJ and MJ], and the ICAN (ICT Challenge and Advanced Network of HRD) support program [grant number RS-2023-00259934], supervised by the IITP (Institute of Information & Communications Technology Planning & Evaluation). Correspondence should be addressed to Ick Hoon Jin, Department of Applied Statistics, Department of Statistics and Data Science, Yonsei University, Seoul, Republic of Korea. Go, Kim, and Park are co-first authors and listed in alphabetical order.
8 Supplementary materials
Supplementary materials are available in addition to this article. It can be downloaded at RJ-2025-021.zip
9 CRAN packages used
ltm, eRm, mirt, pcIRT, lsirm12pl, GPArotation, kernlab, Rcpp, RcppArmadillo
10 CRAN Task Views implied by cited packages
AnomalyDetection, Cluster, HighPerformanceComputing, MachineLearning, MissingData, NaturalLanguageProcessing, NumericalMathematics, Optimization, Psychometrics
11 Note
This article is converted from a Legacy LaTeX article using the texor package. The pdf version is the official version. To report a problem with the html, refer to CONTRIBUTE on the R Journal homepage.
