1 Introduction
Paid research studies are essential for determining the influence of new interventions or treatments and for providing quantitative evidence in various domains, such as healthcare, psychology, and politics. However, conducting such studies often involves a limited budget and a large pool of potential volunteers, which poses a challenge in selecting the best sample to meet the research objectives. Poor samples may result in biased or inaccurate estimates, low statistical power, and even misleading conclusions. Therefore, finding a good sampling strategy is crucial for researchers and practitioners.
Consider a constrained sampling problem commonly encountered in paid research studies. Suppose, in a research study to evaluate a new intervention, \(N=500\) volunteers register to participate. Upon registration, the investigators collect basic demographic information, such as gender (female or male) and age groups (\(18\sim25\), \(26\sim64\), \(65\) and above) for each volunteer. Treating gender and age as stratification factors, we obtain \(m=6\) subgroups. However, due to budget limitations, the study could only accommodate \(n=200\) participants. Let \(N_i\) denote the frequency of volunteers within the \(i\)th subgroup, where \(i=1,\dots,m\). We call the integer number of participants sampled from each subgroup, \(n_i\), the exact allocation, and the corresponding proportion \(n_i/N_i\) the approximate allocation. The goal is to select a sample of \(200\) participants \(\mathbf n = (n_1, \dots, n_m)\), such that \(\sum_{i=1}^m n_i = 200\) from the pool of \(N=500\) volunteers to evaluate the intervention effect most accurately, subject to the constraint that no subgroup is oversampled beyond the number of available volunteers within that subgroup, that is, \(n_i \le N_i\). This constraint is the most commonly encountered in paid research studies (see Section 3.1 for details, and for constraints of other forms, please refer to Section 3.2).
Commonly used sampling strategies include simple random sampling, stratified sampling, and cluster sampling. Simple random sampling is the most straightforward form of probability sampling, where each element has an equal chance of being selected (Tillé 2006). Proportionally stratified sampling involves dividing the population into homogeneous subgroups, such as gender and age groups, and applying random sampling to sample proportionally within each subgroup (Lohr 2019). Cluster sampling, on the other hand, splits the population into heterogeneous clusters, for example, based on the locations of volunteers, and randomly selects some clusters as the sample units. However, these methods have their drawbacks. Cluster sampling is relatively low-cost but less precise than simple random sampling. Stratified sampling can produce more efficient estimators of population means, but it requires finding well-defined and relevant subgroups that cover the entire population (Levy and Lemeshow 2008). Moreover, these existing methods are based on assumptions that may not hold if model estimation is the primary goal of the paid research study.
In the proposed
CDsampling package,
we implement the sampling strategy based on optimal design theory (with
main functions liftone_GLM(), liftone_constrained_GLM(),
liftone_MLM(), and ), which can improve the accuracy of the
intervention effect estimation. Optimal design theory is a branch of
experimental design that aims to find the best allocation of
experimental units to achieve a specific optimality criterion such as
minimizing the variance of estimation or equivalently maximizing the
information obtained from the design. For example, D-optimality
maximizes the determinant of the information matrix, which minimizes the
estimators’ expected volume of the joint confidence ellipsoid.
A-optimality minimizes the trace of the inverse information matrix,
equivalent to minimizing the average of the variances of the estimators.
E-optimality minimizes the maximum eigenvalue of the inverse information
matrix, which minimizes the largest expected semi-axis of the confidence
ellipsoid and protects against the worst possible case (Fedorov 1972;
Atkinson, Donev, and Tobias 2007; M. Yang and Stufken 2012; Fedorov and
Leonov 2014). In this paper, we focus on D-optimality due to its overall
good performance and mathematical simplicity (Zocchi and Atkinson 1999;
Atkinson, Donev, and Tobias 2007). According to (Huang, Tong, and Yang
2025), the constrained D-optimal sampling strategies work well for paid
research studies or clinical trials. To implement
the recommended sampling strategy, we develop an R package called
CDsampling (namely,
Constrained D-optimal
sampling), available on CRAN at
https://cran.r-project.org/package=CDsampling. To the best of our
knowledge,
CDsampling is the
first R package offering a sampling tool with constraints in paid
research studies based on optimal design theory. Package
sampling implements
random samples using different sampling schemes (Tillé and Matei 2016).
The package also provides functions to obtain (generalized) calibration
weights, different estimators, as well as some variance estimators.
Package
SamplingStrata
determines the best stratification for a population frame that ensures
the minimum sample cost with precision thresholds (Barcaroli 2014). On
the other hand, there are existing R packages for optimal designs.
Package AlgDesign
finds exact and approximate allocations of optimal designs under D-, A-,
and I-criteria (Wheeler and Braun 2019). Package
OptimalDesign
enables users to compute D-, A-, I-, and c-efficient designs with or
without replications, restricted design spaces, and under multiple
linear constraints (Harman, Filova, and Filova 2016). Package
acebayes finds
Bayesian optimal experimental designs with approximate coordinate
exchange algorithm (Antony M. Overstall, Woods, and Adamou 2020; Antony
M. Overstall et al. 2018). Package
OPDOE provides functions
for optimal designs with polynomial regression models and ANOVA
(Grömping 2011). These packages provide programming tools for finding
samplings or optimal designs under different criteria and models.
However, they do not address the specific challenges of practical
feasibility in the constrained sampling scheme of paid research studies.
The proposed
CDsampling package
fills this gap by offering an efficient sampling tool to handle general
constraints and common parametric models in paid research studies.
2 Method
Constrained lift-one algorithm
The lift-one algorithm was initially proposed by J. Yang, Mandal, and Majumdar (2016) to find D-optimal designs with binary responses. This was extended to generalized linear models (GLMs) by J. Yang and Mandal (2015) and subsequently adapted for cumulative link models by J. Yang, Tong, and Mandal (2017). The methodology was further extended to multinomial logit models (MLMs) by Bu, Majumdar, and Yang (2020).

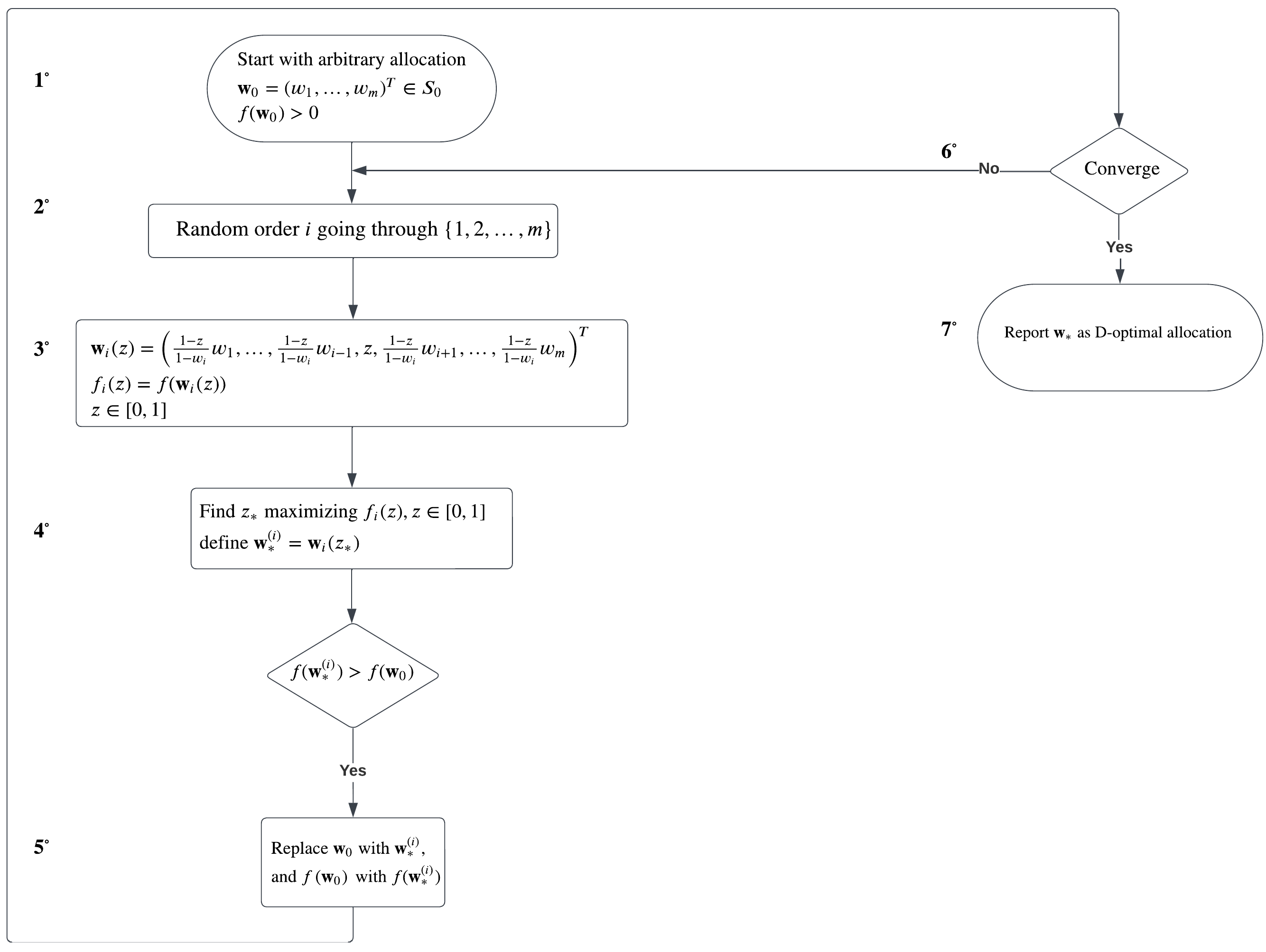

Figure 1 provides a concise summary of the lift-one algorithm applied to general parametric models. The detailed algorithm is provided in Algorithm \(3\) from the Supplementary Material of Huang, Tong, and Yang (2025). We consider a general study or experiment involving covariates \(\mathbf{x}_i = (x_{i1}, \dots, x_{id})^\top\), for \(i = 1, \dots, m\), referred to as experimental settings. In paid research studies, these covariates could be the stratification factors such as the gender and age groups in our motivating example. Here, \(m \ge 2\) denotes the number of experimental settings, which corresponds to \(m=6\), the number of gender and age groups in the motivating example. Suppose the responses follow a parametric model \(M(\mathbf x_i, \boldsymbol \theta)\), where \(\boldsymbol \theta \subseteq \mathbb{R}^p\) with \(p\ge 2\). Under regularity conditions, the Fisher information matrix of the experiment design can be written as \(\mathbf F = \sum_{i=1}^m n_i \mathbf F_i\), where \(\mathbf F_i, i=1, \dots, m\) is the Fisher information matrix at \(\mathbf x_i\) and \(n_i\) is the number of subjects allocated to the \(i\)th experimental setting. In the setting of paid research studies, \(n_i\) corresponds to the number of subjects sampled from the \(i\)th subgroup. We usually call \(\mathbf n = (n_1, \dots, n_m)^\top\) the exact allocation, where \(n=\sum_{i=1}^m n_i\), and \(\mathbf w = (w_1,\dots,w_m)^\top=(n_1/n, \dots, n_m/n)^\top\) the approximate allocation, where \(w_i \ge 0\) and \(\sum_{i=1}^m w_i = 1\) (Kiefer 1974; Pukelsheim 2006; Atkinson, Donev, and Tobias 2007). The approximate allocation is theoretically more tractable, while the exact allocation is practically more useful. In the statistical literature, approximate allocations are more commonly discussed (Kiefer 1974). The D-optimal design aims to find the optimal allocation that maximizes \(f({\mathbf w})=|\mathbf F({\mathbf w})|=|\sum_{i=1}^m w_i \mathbf F_i|\). The lift-one algorithm simplifies a complex multivariate optimization problem into a sequence of simpler univariate optimization problems. This is achieved by “lifting” and optimizing one weight \(w_i\), within the approximate allocation vector \(\mathbf w\). Specifically, in step \(3^\circ\) of the algorithm depicted in Figure 1, the determinant of the Fisher information matrix function concerning the lift-one variable is expressed as \(f(z) = f(\mathbf w_i(z))\) where the variable \(z\) substitutes for \(w_i\) in allocation \(\mathbf{w}\), and the remaining weights are adjusted proportionally, denoted as \(\mathbf w_i\). The updated weight vector is given by \[\mathbf w_i(z) = \left( \frac{1-z}{1-w_i}w_1, \ldots, \frac{1-z}{1-w_i}w_{i-1}, z, \frac{1-z}{1-w_i}w_{i+1}, \ldots, \frac{1-z}{1-w_i}w_m\right)^\top.\] The allocation that results from the convergence in step \(6^\circ\) of the algorithm is identified as the D-optimal approximate allocation.

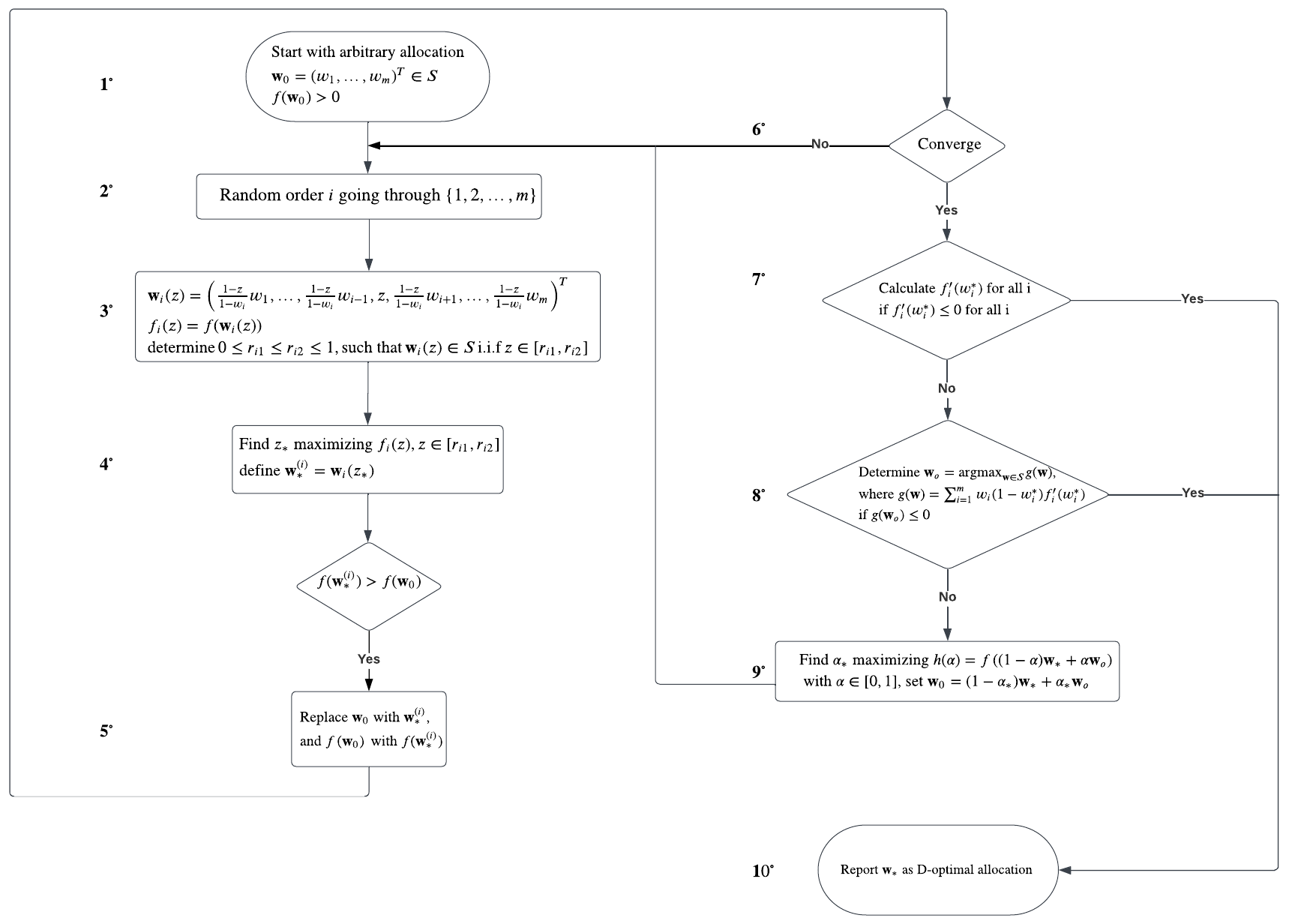

In the context of paid research studies, budgetary limitations often necessitate the selection of a subset of participants. We consider the sampling of \(n\) subjects from a larger population of \(N\), where \(n < N\). A typical constraint in such studies is \(n_i \leq N_i\), where \(N_i\) represents the number of available subjects from the \(i\)th experimental setting group. This effectively places an upper bound on the sample size for each subgroup (or stratum), ensuring the sampling process does not overdraw from any subgroup. Additional constraints may include \(n_1 + n_2 + n_3 + n_4 \leq 392\) (see the MLM example in Section 3.2), \(4n_1 \geq n_3\) (see Example S2.2 in Supplementary Material Section S2), etc. The constrained lift-one algorithm seeks the approximate allocation \({\mathbf w}\) that maximizes \(|{\mathbf F}({\mathbf w})|\), on a collection of feasible approximate allocations \(S \subseteq S_0\) where \[S_0 := \{(w_1, \ldots, w_m)^\top \in \mathbb{R}^m \mid w_i \geq 0, i=1, \ldots, m; \sum_{i=1}^m w_i = 1\}.\] The set \(S\) is presumed to be either a closed convex set or a finite union of closed convex sets. The framework of the constrained lift-one algorithm is provided in Figure 2. The details of the algorithm can be found in Algorithm 1 of Huang, Tong, and Yang (2025). In the constrained lift-one algorithm, the search for the optimal lift-one weight \(z\) in step \(3^\circ\) of Figure 2 is confined within the interval of \([r_{i1}, r_{i2}]\) (Example S2.2 in Supplementary Material Section S2 and Section S.3 in (Huang, Tong, and Yang 2025) for details of finding \([r_{i1}, r_{i2}]\)). To ensure that the resulting allocation is D-optimal, two additional decision steps, labeled steps \(7^\circ\) and \(8^\circ\), are incorporated into the algorithm. The reported allocation in step \(10^\circ\) is the constrained D-optimal approximate allocation for the study. To illustrate the difference between the lift-one algorithm and the constrained lift-one algorithm, we provide examples in Supplementary Material Section S2.

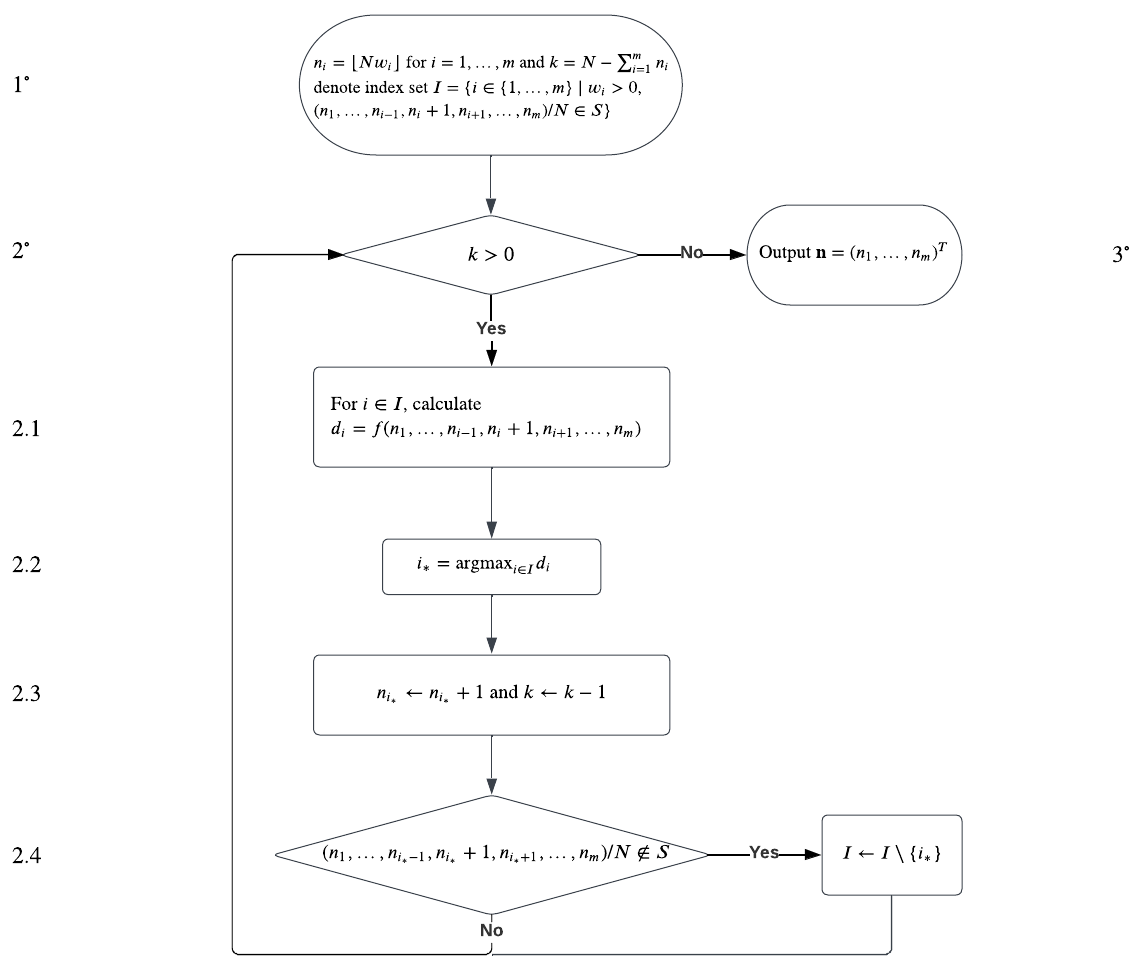

Upon obtaining the approximate allocation, we may employ the constrained approximate to exact allocation algorithm outlined in Figure 3 for the conversion of a real-valued approximate allocation to an integer-valued exact allocation. The full details of the algorithm are in Algorithm 2 of Huang, Tong, and Yang (2025). The algorithm begins by assigning a floor integer value to all subgroups \(n_i = \lfloor Nw_i\rfloor\). Subsequently, each remaining subject is added to the corresponding group in a manner that maximizes the determinant of the Fisher information matrix. This transformation provides a more pragmatic application in the actual sampling process within paid research studies.
The calculation of the Fisher information matrix \(\mathbf{F}\) and the subsequent maximization of its determinant \(|\mathbf{F}|\) are key steps in both the constrained and original (unconstrained) lift-one algorithms. The theoretical details and functions for the computation of \(\mathbf{F}\) are provided in Sections 2.2 and Section 2.3.
Fisher information for generalized linear models
The generalized linear model (GLM) broadens the scope of the traditional linear model. In the standard approach, the response variable is expected to change in direct proportion to the covariate. Yet, this isn’t always a practical assumption. Take binary outcomes, for instance, the classic linear model falls short here. Similarly, it’s unsuitable for positive-only data like count data. (Nelder and Wedderburn 1972) expanded the model to accommodate a wider range of applications.
For a GLM, we assume that response variables \(Y_1, \dots, Y_n\) are
independent and from the exponential family. Then we have (Dobson and
Barnett 2018; McCullagh and Nelder 1989)
\[E(Y_i \mid \mathbf X_i) = \mu_i,\quad g(\mu_i)=\eta_i=\mathbf X_i^\top \boldsymbol \beta\]
where \(g\) is a link function,
\(\boldsymbol \beta = (\beta_1, \beta_2,\dots, \beta_p)^\top\) is the
parameter vector of interest, and \(\mu_i\) is the conditional expectation
of response \(Y_i\) given predictors
\(\mathbf X_i = \mathbf h(\mathbf x_i) = (h_1(\mathbf x_i),\dots, h_p(\mathbf x_i))^\top\),
where \(i = 1, \dots, n\) with known and deterministic predictor functions
\(\mathbf h = (h_1, \dots, h_p)^\top\). There are various link functions
that could be used, for example, logit link
\(\eta_i = \log\frac{\mu_i}{1-\mu_i}\); probit link
\(\eta_i = \Phi^{-1}(\mu_i)\), where \(\Phi(\cdot)\) is the normal
cumulative distribution function; and complementary log-log link
\(\eta_i = \log\{-\log(1-\mu_i)\}\). Regular linear models can be
considered as GLMs with the identity link function and normal responses.
Suppose we have a design with \(m\) design points
\(\mathbf x_1, \dots, \mathbf x_m\) that has an exact allocation
\((n_1,\dots,n_m)\) where \(\sum_i n_i = n\) and corresponding approximate
allocation \((w_1,\dots,w_m)=(\frac{n_1}{n},\dots,\frac{n_m}{n})\). The
Fisher information matrix \(\mathbf F\) under GLMs can be written as
(McCullagh and Nelder 1989; Khuri et al. 2006; Stufken and Yang 2012; J.
Yang, Mandal, and Majumdar 2016):
\[\label{eq:FisherGLM}
\mathbf F = n \mathbf X^\top \mathbf W \mathbf X = n\sum_{i=1}^m w_i \nu_i {\mathbf X}_i{\mathbf X}_i^\top \tag{1}\]
where \(\mathbf X = (\mathbf X_1, \dots, \mathbf X_m)^\top\) is the
\(m\times p\) design matrix with \(\mathbf X_i = \mathbf h(\mathbf x_i)\),
\(\mathbf W = \text{diag}\{w_1\nu_1,\) \(\dots, w_m\nu_m\}\) is a diagonal
matrix with
\(\nu_i = \frac{1}{\text{Var}(Y_i)} (\frac{\partial \mu_i}{\partial \eta_i})^2\).
Here, \(\nu_i\) represents how much information the design point
\(\mathbf x_i\) contains. The explicit formats of \(\nu_i\) with different
response distributions and link functions can be found in Table 5 of the
Supplementary Material of (Huang, Tong, and Yang 2025). To calculate the
Fisher information matrix \(\mathbf{F}\) given the approximate allocation
\(\mathbf{w}\), we may use the F_func_GLM() function in the
CDsampling package.
Additionally, the W_func_GLM() function can be used to find the
diagonal elements of the matrix \(\mathbf{W}\) in the Fisher information
matrix (1) of GLM. An example of finding the Fisher
information matrix for GLM is provided in Example S1.1 of Supplementary
Material.
Fisher information for multinomial logistic model
The multinomial logistic model (MLM) is an extension of GLM aiming to manage responses that fall into multiple categories, such as rating scales and disease severity levels (Agresti 2013).
We assume that the responses \(\mathbf Y_i = (Y_{i1},\dots,Y_{iJ})\) follow a multinomial distribution with probabilities \((\pi_{i1}, \dots, \pi_{iJ})\), where \(\pi_{ij} = \text{P}(Y_i=j \mid {\mathbf x}_i)\), \(Y_i \in \{1, \ldots, J\}\) is the \(i\)th original categorical response, \(j = 1,\dots, J\), and \(\sum_j \pi_{ij} = 1\). If the response variables are nominal, in other words, there is no natural ordering among different levels, a commonly used MLM is the baseline-category logit model with the \(J\)th level selected as the baseline category. If the response variable is ordinal, that is, we have a natural ordering of response levels, there are three commonly used MLMs in the literature: cumulative logit model, adjacent logit model, and continuation-ratio logit model (Bu, Majumdar, and Yang 2020; Dousti Mousavi, Aldirawi, and Yang 2023; Wang and Yang, n.d.).
In addition to different logit models, the proportional odds (po) assumption is an important concept in MLMs. The po assumption is a parsimonious model assumption, where a model simultaneously uses all \(J-1\) logits in a single model with the same coefficients. This means the covariate effect is constant on the odds ratio among different response levels. When the assumption doesn’t hold, the model is referred to as a non-proportional odds (npo) model and has more parameters in it. When the assumption only holds for part of the parameters, the model is referred to as a partial proportional odds (ppo) model. Commonly used multinomial logit models with po, npo, or ppo assumptions can be summarized in a unified matrix form (Glonek and McCullagh 1995; Zocchi and Atkinson 1999; Bu, Majumdar, and Yang 2020): \[\mathbf C^\top \log(\mathbf L \boldsymbol \pi_i) = \mathbf X_i \boldsymbol \theta\] where \[\mathbf C^\top = \begin{pmatrix} \mathbf I_{J-1} & -\mathbf I_{J-1} & \mathbf 0^\top_{J-1} \\ \mathbf 0^\top_{J-1} & \mathbf 0_{J-1} & 1 \\ \end{pmatrix}\] is a \(J \times (2J-1)\) constant matrix, \(\mathbf L\) is a \((2J-1)\times J\) constant matrix with different formats among the four different multinomial logit models, and \(\boldsymbol \pi_i = (\pi_{i1},\dots,\pi_{iJ})^\top\). The model matrix \(\mathbf X_i\) is defined in general as \[\mathbf X_i = \begin{pmatrix} \mathbf h_1^\top(\mathbf x_i)& & & \mathbf h_c^\top(\mathbf x_i)\\ & \ddots & & \vdots\\ & & \mathbf h_{J-1}^\top (\mathbf x_i) & \mathbf h_{c}^\top (\mathbf x_i)\\ \mathbf 0^\top_{p_1} & \dots & \mathbf 0^\top_{p_{J-1}} & \mathbf 0^\top_{p_c} \end{pmatrix}_{J \times p} \] and the parameter \(\boldsymbol \theta=(\boldsymbol\beta_1^\top, \dots, \boldsymbol \beta^\top_{J-1}, \boldsymbol\zeta^\top)^\top\) consists of \(p=p_1 + \dots + p_{J-1}+p_c\) unknown parameters. Here \(\mathbf h_j^\top(\cdot) = (h_{j1}(\cdot),\dots, h_{jp_j}(\cdot))\) are known functions to determine \(p_j\) predictors associated with unknown parameters \(\boldsymbol \beta_j = (\beta_{j1}, \dots, \beta_{jp_{j}})^\top\) in \(j\)th response category, and \(\mathbf h_c^\top(\cdot) = (h_{1}(\cdot),\dots, h_{p_c}(\cdot))\) are known functions to determine \(p_c\) predictors associated with proportional odds parameters \(\boldsymbol \zeta = (\zeta_1, \dots, \zeta_{p_c})^\top\). If \(\mathbf h_j^\top(\mathbf x_i)\equiv1\), the model is a po model; if \(\mathbf h_c^\top(\mathbf x_i)\equiv0\), the model is an npo model.
According to Theorem 2.1 in (Bu, Majumdar, and Yang 2020), the Fisher
information matrix under a multinomial logistic regression model with
independent observations can be written as
\[\label{eq:F_sum}
\mathbf F = \sum_{i=1}^m n_i \mathbf F_i \tag{2}\]
where
\(\mathbf F_i = (\frac{\partial{\boldsymbol\pi_i}}{\partial{\boldsymbol \theta^\top}})^\top \text{diag}(\boldsymbol \pi_i)^{-1}\frac{\partial \boldsymbol \pi_i}{\partial \boldsymbol \theta^\top}\)
with
\(\frac{\partial \boldsymbol \pi_i}{\partial \boldsymbol \theta^\top} = (\mathbf C^\top \mathbf D_i^{-1} \mathbf L)^{-1}\)
and \(\mathbf D_i = \text{diag}(\mathbf L \boldsymbol \pi_i)\). Explicit
forms of \((\mathbf C^\top \mathbf D_i^{-1} \mathbf L)^{-1}\) can be found
in Section S.3 of the Supplementary Material of (Bu, Majumdar, and Yang
2020). To calculate the Fisher information matrix \(\mathbf F\) for the
MLM, one may use the function F_func_MLM() in the
CDsampling package.
An example of finding the Fisher information matrix for MLM is provided
in Example S1.2 of the Supplementary Material.
3 Examples
The methods described in Section 2 are implemented in the proposed R package
CDsampling. The
CDsampling package
comprises \(16\) functions, as detailed in
Table 1. The primary functions of the
CDsampling package
are liftone_constrained_GLM() and liftone_constrained_MLM().
Additionally, the package includes the original (unconstrained) lift-one
algorithm for general experimental designs, accessible via the
liftone_GLM() and liftone_MLM() functions. Two datasets trial_data
and trauma_data are provided for illustration purposes.
| Usage | Function | |
|---|---|---|
| Model | Calculating \(\mathbf W\) matrix diagonal elements of
generalized linear model (see
Section 2.2); providing input for
function liftone_GLM() and liftone_constrained_GLM(). |
W_func_GLM() |
| Calculating Fisher information matrix and its determinant of generalized linear model (see Example S1.1 in Supplementary Material). | F_func_GLM(), Fdet_func_GLM() |
|
Calculating Fisher information matrix of multinomial
logit model at a specific design point (see
Section 2.3); using as input of
liftone_MLM() and liftone_constrained_MLM(). |
Fi_func_MLM() |
|
| Calculating Fisher information matrix and its determinant of multinomial logit model (see Example S1.2 in Supplementary Material). | F_func_MLM(), Fdet_func_MLM() |
|
Using in approxtoexact_constrained_func() to find
constrained uniform exact allocation. |
Fdet_func_unif() |
|
| Sampling | Finding unconstrained D-optimal approximate allocation for generalized linear model and multinomial logit model (see Section S2 in Supplementary Material). | liftone_GLM(), liftone_MLM() |
| Finding constrained D-optimal approximate allocation for generalized linear model and multinomial logit model (see Section 3). | liftone_constrained_GLM(),
liftone_constrained_MLM() |
|
| Transferring approximate allocation to exact allocation (see Section 3). | approxtoexact_constrained_func() |
|
| Finding constrained uniform exact allocation for bounded constraint (see Section 3.1). | approxtoexact_func()
bounded_uniform() |
|
| Example Specific | Finding \(I\) set for exact allocation conversion in
trial_data and trauma_data examples (see
Section 3 and Section S4 in Supplementary
Material). |
iset_func_trauma(),
iset_func_trial() |
In the remainder of this section, we present two examples to illustrate the usage of the CDsampling package for sampling problems in paid research studies, using datasets provided by CDsampling. All results in this section were generated using R version 4.3.2 on a macOS Sonoma 14.6.1 system.
Applications in paid research study: \(\tt trial\_data\) example
The trial_data dataset is simulated data for a toy example of paid
research studies. This study includes a cohort of \(500\) patients for a
clinical trial, with gender and age as stratification factors. A
logistic regression model incorporates these factors as covariates:
gender (coded as \(0\) for female and \(1\) for male) and age (coded as
two dummy variables \(age\_1\) and \(age\_2\) with
\((age\_1, age\_2) = (0, 0)\) for age group \(18\sim25\); \((1, 0)\) for age
group \(26\sim64\), and \((0, 1)\) for age group \(65\) and above). For
simplicity, the study assumes binary gender options and a tripartite age
categorization. In total, there are \(m=6\) combinations of covariate
factors. In practice, non-binary gender options and a “prefer not to
answer” choice may be included to respect gender diversity and protect
patient confidentiality. The response \(Y\) denotes the treatment’s
efficacy (\(0\) indicating ineffectiveness, \(1\) indicating effectiveness).
The data is generated by the logistic regression model
\[\label{eq:triallogisticmodel}
{\rm logit} \{P(Y_{ij}=1 \mid x_{gender\_i}, x_{age\_1i}, x_{age\_2i})\} = \beta_0 + \beta_1 x_{gender\_i} + \beta_{21} x_{age\_1i} + \beta_{22} x_{age\_2i} \tag{3}\]
with \((\beta_0, \beta_1, \beta_{21}, \beta_{22}) = (0,3,3,3)\), where
\(i=1, \ldots, 6\) stands for the \(i\)th covariate combination, and
\(j = 1, \ldots, N_i\) is an index of patients who fall into the \(i\)th
covariate combination or sampling subgroups.

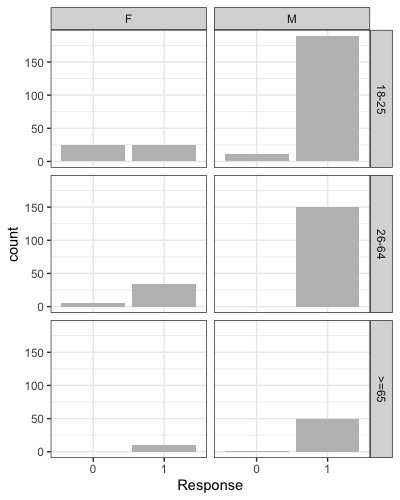

Figure 4 illustrates the distribution of treatment
efficacy across different gender and age groups.
trial_data of
CDsampling
package.In this example, it is posited that a sample of \(n=200\) participants is desired from the population of \(N=500\) volunteers due to budget constraints. The objective is to examine the variation in efficacy rates across gender and age demographics. Should a pilot study or relevant literature provide approximate values for the model parameters, a constrained lift-one algorithm may be employed to find a locally D-optimal design. Conversely, if only partial parameter information is available, the expectation can be deduced from some prior distributions, and the constrained lift-one algorithm can be utilized to determine an EW D-optimal allocation (substituting \(\mathbf W\) in the Fisher information matrix (1) with \(E(\mathbf W)\)).
There are \(m=6\) design points, corresponding to gender and age group combinations \((x_{gender\_i},\) \(x_{age\_1i}, x_{age\_2i}) = (0,0,0)\), \((0,1,0)\), \((0,0,1)\), \((1,0,0)\), \((1,1,0)\), and \((1,0,1)\), respectively. The numbers of available volunteers in the six categories are \((N_1, N_2, \ldots, N_6) = (50, 40, 10,\) \(200, 150, 50)\). Our goal is to find the constrained D-optimal allocation \((w_1, w_2, \dots, w_6)\) in the set of all feasible allocations \(S = \{(w_1, \ldots,\) \(w_m)^T \in S_0 \mid n w_i \leq N_i, i=1, \ldots, m\}\).
We consider the logistic regression model (3), to find the locally D-optimal design, we assume, for illustrative purposes, that the model parameters \((\beta_0, \beta_{1}, \beta_{21}, \beta_{22})\) \(=(0,3,3,3)\). We may define the parameters and the model matrix as follows. Subsequently, we find the \(\mathbf W\) matrix in Equation (1) for the Fisher information matrix \(\mathbf F\).
> beta = c(0, 3, 3, 3) #coefficients
> #design matrix
> X=matrix(data=c(1,0,0,0,1,0,1,0,1,0,0,1,1,1,0,0,1,1,1,0,1,1,0,1), ncol=4, byrow=TRUE)
> W=W_func_GLM(X=X, b=beta, link="logit") #find W as input of constrained liftoneTo define the number of design points, sample size, and constraints with \(S\), we use the following R codes (see Section S3 in the Supplementary Material of (Huang, Tong, and Yang 2025) for details on finding \(r_{i1}\) and \(r_{i2}\) in step 3 of the constrained liftone algorithm in Figure 2):
> rc = c(50, 40, 10, 200, 150, 50)/200 #available volunteers/sample size
> m = 6 #design points
> g.con = matrix(0,nrow=(2*m+1), ncol=m) #constraints
> g.con[1,] = rep(1, m)
> g.con[2:(m+1),] = diag(m)
> g.con[(m+2):(2*m+1), ] = diag(m)
> g.dir = c("==", rep("<=", m), rep(">=", m)) #direction
> g.rhs = c(1, rc, rep(0, m)) #righ-hand side
> #lower bound in step 3 of constrained liftone
> lower.bound=function(i, w){
+ rc = c(50, 40, 10, 200, 150, 50)/200
+ m=length(w)
+ temp = rep(0,m)
+ temp[w>0]=1-pmin(1,rc[w>0])*(1-w[i])/w[w>0];
+ temp[i]=0;
+ max(0,temp);
+ }
> #upper bound in step 3 of constrained liftone
> upper.bound=function(i, w){
+ rc = c(50, 40, 10, 200, 150, 50)/200
+ min(1,rc[i]);
+ }To identify the subgroups of the output D-optimal allocations, we may add an optional label for each of the \(m=6\) covariatres combination or subgroups as “F, 18-25”, “F, 26-64”, “F, >=65”, “M, 18-2”, “M, 26-6”, “M, >=65” using the following codes:
> label = c("F, 18-25", "F, 26-64", "F, >=65", "M, 18-25", "M, 26-64", "M, >=65")Then, we run the constrained lift-one algorithm with to find the constrained D-optimal approximate allocation.
> set.seed(092)
> approximate_design = liftone_constrained_GLM(X=X, W=W, g.con=g.con, g.dir=g.dir,
+ g.rhs=g.rhs, lower.bound=lower.bound, upper.bound=upper.bound, reltol=1e-10,
+ maxit=100, random=TRUE, nram=4, w00=NULL, epsilon=1e-8, label=label)The design output is presented below:
> print(approximate_design)
Optimal Sampling Results:
================================================================================
Optimal approximate allocation:
F, 18-25 F, 26-64 F, >=65 M, 18-25 M, 26-64 M, >=65
w 0.25 0.2 0.05 0.5 0.0 0.0
w0 0.25 0.0 0.05 0.7 0.0 0.0
--------------------------------------------------------------------------------
maximum :
2.8813e-08
--------------------------------------------------------------------------------
convergence :
TRUE
--------------------------------------------------------------------------------
itmax :
9.0
--------------------------------------------------------------------------------
deriv.ans :
0.0, 3.6017e-08, 4.8528e-07, -1.1525e-07, -1.0310e-07, -7.9507e-08
--------------------------------------------------------------------------------
gmax :
0.0
--------------------------------------------------------------------------------
reason :
"gmax <= 0"
--------------------------------------------------------------------------------The output includes several key components:
\(\mathbf w\): reports the D-optimal approximate allocation.
\(\mathbf w_0\): reports the random initial approximate allocation used to initialize optimization.
maximum: reports the maximum determinant of Fisher information matrix.
reason: reports the termination criterion for the constrained lift-one algorithm including either “all derivative \(\le\) 0” or “gmax \(\le\) 0”, which corresponds to step \(7^\circ\) and step \(8^\circ\) in the constrained lift-one algorithm in Figure 2.
In practical terms, exact allocations are more beneficial. One may use the constrained approximate to exact allocation algorithm depicted in Figure 3, which is implemented as the function.
> exact_design = approxtoexact_constrained_func(n=200, w=approximate_design$w, m=6,
+ beta=beta, link='logit', X=X, Fdet_func=Fdet_func_GLM, iset_func=iset_func_trial,
+ label=label)
> print(exact_design)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
F, 18-25 F, 26-64 F, >=65 M, 18-25 M, 26-64 M, >=65
allocation 50.0 40.0 10.0 100.0 0.0 0.0
allocation.real 0.25 0.2 0.05 0.5 0.0 0.0
--------------------------------------------------------------------------------
det.maximum :
46.1012
--------------------------------------------------------------------------------The output provides three key components for the sampling results:
allocation: reports the exact allocation of D-optimal sampling, specifying the number of subjects to sample from each subgroup.
allocation.real: reports the real-number approximate allocation used prior to integer conversion.
det.maximum: reports the maximum determinant of the Fisher information matrix by the optimal design.
In this example, the D-optimal exact allocation is to sample \(50\) subjects from the “female, \(18-25\)” subgroup, \(40\) subjects from the “female, \(26-64\)” subgroup, \(10\) subjects from the “female, \(\ge 65\)” subgroup, and \(100\) subjects from the “male, \(18-25\)” subgroup. Such a design may not explore all the design space and may lead to extreme design cases. In practice, allocating some subjects to the omitted subgroups “male, \(26-64\)” and “male, \(\ge 65\)” could improve robustness and reduce the risk of overfitting.
Alternatively, one may aim for EW D-optimal allocations when partial
coefficient information is available with the \({\mathbf W}\) matrix
substituted by the expectation (EW stands for the expected weight). To calculate these expectations, one may define
prior distributions for the parameters based on available information.
For instance, in this scenario, we assume the following independent
prior distributions: \(\beta_0\sim\) uniform\((-2,2)\), \(\beta_1\sim\)
uniform\((-1,5)\), \(\beta_{21}\sim\) uniform\((-1,5)\), and \(\beta_{22}\sim\)
uniform(-1,5). Subsequently, the diagonal elements of \({\mathbf W}\) are
determined through integration. For \(i=1,\dots,m\) and
\(\eta_i = \beta_0 + x_{gender\_i}\beta_1+ x_{age\_i1}\beta_{21}+ x_{age\_i2}\beta_{22}\),
we calculate the key component \(E(\nu_i)\) of the \(i\)th diagonal element
of \({\mathbf W}\) through:
\[\int_{-1}^{5} \int_{-1}^{5} \int_{-1}^{5} \int_{-2}^{2} \frac{\exp(\eta_i)}{(1+\exp(\eta_i))^2} {\rm Pr}(\beta_0){\rm Pr}(\beta_{1}){\rm Pr}(\beta_{21}){\rm Pr}(\beta_{22}) \, d\beta_0 d\beta_1 d\beta_{21} d\beta_{22}\]
where \(\rm{Pr}(\cdot)\) stands for the corresponding probability density
function. We use the hcubature() function in the
cubature package to
calculate the integration as illustrated by the R codes below.
> unif.prior <- rbind(c(-2, -1, -1, -1), c(2, 5, 5, 5)) #prior parameters
> #find expectation of W matrix given priors
> W.EW.unif = matrix(rep(0,6))
> for (i in 1:6){
+ x = X[i,]
+ W.EW.unif[i] = hcubature(function(beta) dunif(beta[1], min=unif.prior[1,1],
max=unif.prior[2,1])*dunif(beta[2], min=unif.prior[1,2], max=unif.prior[2,2])*
dunif(beta[3], min=unif.prior[1,3], max=unif.prior[2,3])*dunif(beta[4],
min=unif.prior[1,4], max=unif.prior[2,4])*(exp(x[1]*beta[1]+x[2]*beta[2]+x[3]*
beta[3]+x[4]*beta[4])/(1+exp(x[1]*beta[1]+x[2]*beta[2]+x[3]*beta[3]+x[4]*beta[4]))^2),
lowerLimit = unif.prior[1,], upperLimit = unif.prior[2,])$integral
+ }Given the expectation of \({\mathbf W}\), the functions
liftone_constrained_GLM() and are used for deriving the constrained EW
D-optimal approximate allocation and the corresponding exact allocation,
respectively. This process follows a similar procedure to that used for
local D-optimal approximate allocation.
> set.seed(123)
> approximate_design_EW = liftone_constrained_GLM(X=X, W=W.EW.unif, g.con=g.con,
+ g.dir=g.dir, g.rhs=g.rhs, lower.bound=lower.bound, upper.bound=upper.bound,
+ reltol=1e-12, maxit=100, random=TRUE, nram=4, w00=NULL, epsilon=1e-10, label=label)
> exact_design = approxtoexact_constrained_func(n=200,
+ w=approximate_design_EW$w, m=6, beta=beta, link='logit', X=X, Fdet_func=Fdet_func_GLM,
+ iset_func=iset_func_trial, label=label)The output is summarized with print() function and presented below:
> print(exact_design_EW)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
F, 18-25 F, 26-64 F, >=65 M, 18-25 M, 26-64 M, >=65
allocation 48.0 40.0 10.0 43.0 19.0 40.0
allocation.real 0.2406 0.2 0.05 0.2102 0.0991 0.2001
--------------------------------------------------------------------------------
det.maximum :
25.59
--------------------------------------------------------------------------------In situations when the model parameters are unknown, the constrained
uniform allocation is applicable. This method entails sampling an equal
number of patients from each category within the given constraints. The
selection criterion is \(n_i = \min\{k, N_i\}\) or \(\min\{k, N_i\}+1\) with
\(k\) satisfying
\(\sum_{i=1}^m \min\{k, N_i\} \leq n < \sum_{i=1}^m \min\{k+1, N_i\}\),
where \(N_i\) represents the maximum allowable number for each category.
This is an example of a bounded design problem, where each category has
an upper boundary. The function bounded_uniform() can be used to find
the constrained uniform allocation with the trial_data example and
“allocation” in the output representing the constrained uniform
allocation.
> bounded_uniform(Ni=c(50, 40, 10, 200, 150, 50), nsample=200, label=label)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
F, 18-25 F, 26-64 F, >=65 M, 18-25 M, 26-64 M, >=65
allocation 38.0 38.0 10.0 38.0 38.0 38.0
--------------------------------------------------------------------------------Alternatively, we may also use approxtoexact_constrained_func() to
find the same constrained uniform exact allocation. This function can be
used under fairly general constraints. To find the constrained uniform
exact allocation using , we suggest starting with one subject in each
stratum or subgroup, which corresponds to the approximate allocation
\(\mathbf{w_{00}}=(1/200,1/200,1/200,1/200,1/200,1/200)\) in this case.
> w00 = rep(1/200, 6) #initial approximate allocation
> unif_design = approxtoexact_constrained_func(n=200, w=w00, m=6, beta=NULL,
+ link=NULL, X=NULL, Fdet_func=Fdet_func_unif, iset_func=iset_func_trial, label=label)
> print(unif_design)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
F, 18-25 F, 26-64 F, >=65 M, 18-25 M, 26-64 M, >=65
allocation 38.0 38.0 10.0 38.0 38.0 38.0
allocation.real 0.005 0.005 0.005 0.005 0.005 0.005
--------------------------------------------------------------------------------
det.maximum :
792351680.0
--------------------------------------------------------------------------------The iset_func_trial() function in the
CDsampling package
is specifically designed for the trial_data example, which defines the
set \(I\) in step \(1^\circ\) and step \(2.4\) in the constrained approximate
to exact algorithm depicted by
Figure 3. This function serves as a
template that users can adapt to their specific constraints by modifying
the codes. The package includes two such template functions: and with
details provided in Section S4 of Supplementary Material.
To perform a comparison analysis on different sampling strategies, including the constrained D-optimal allocation, the constrained EW D-optimal allocation with uniform priors, the constrained uniform allocation, simple random sample without replacement (SRSWOR), as well as the full data (all the \(500\) patients enrolled), we simulate their responses \(Y_{ij}\)’s based on model (3) with parameter values \((0,3,3,3)\). We apply each sampling strategy to obtain a sample of \(n=200\) observations out of \(500\), and estimate the parameters using the \(200\) observations. The exception is the full data method, where estimation is performed using all \(500\) patients. We use the root mean square error (RMSE) to measure the accuracy of the estimates (see Section 4 of (Huang, Tong, and Yang 2025) for more theoretical and technical details). We repeat the procedure \(100\) times and display the corresponding RMSEs in Figure 5 and simulation codes in Supplementary Material Section S3 (Wickham 2016; Wickham et al. 2023). Obviously, if we use the full data (all \(500\) patients) to fit the model, its RMSE attains the lowest. Besides that, the constrained locally D-optimal allocation and the constrained EW D-optimal allocation have a little higher RMSEs than the full data estimates but outperform SRSWOR and the constrained uniform allocation. The sampling strategy based on the constrained uniform allocation doesn’t need any model information and is a more robust sampling scheme, which is still better than SRSWOR.
Applications in paid research study: \(\tt trauma\_data\) example
In the CDsampling
package, trauma_data is a dataset of \(N=802\) trauma patients from
(Chuang-Stein and Agresti 1997), stratified according to the trauma
severity at the entry time of the study with \(392\) mild and \(410\)
moderate/severe patients enrolled. The study involved four treatment
groups determined by the dose level, \(x_{i1} = 1\) (Placebo), \(2\)
(Low dose), \(3\) (Medium dose), and \(4\) (High dose). Combining with
severity grade (\(x_{i2} = 0\) for mild or \(1\) for
moderate/severe), there are \(m=8\) distinct experimental settings
with
\((x_{i1}, x_{i2}) = (1,0), (2,0), (3,0), (4,0), (1,1), (2,1), (3,1), (4,1)\),
respectively. The responses belong to five ordered categories, Death
(\(1\)), Vegetative state (\(2\)), Major disability (\(3\)),
Minor disability (\(4\)) and Good recovery (\(5\)), known as the
Glasgow Outcome Scale (Jennett and Bond 1975).

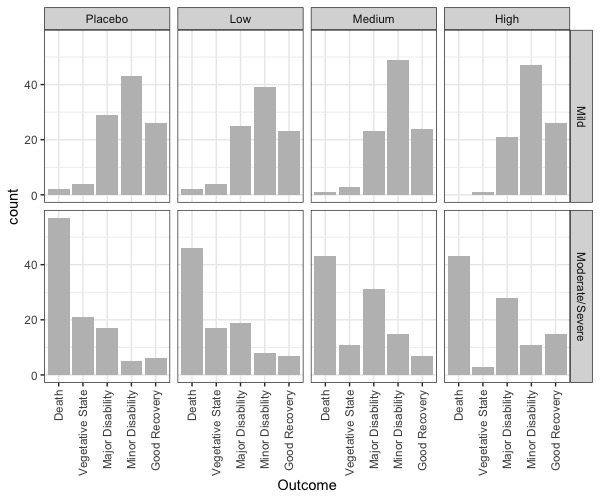

Figure 6 shows the distribution of outcomes over
severity grades and dose levels.
dose levels
(Placebo, Low, Medium, and High) and severity grades (Mild,
Moderate/Severe) groups and their treatment outcomes in trauma_data of
CDsampling
package.In this example, we have \(m=8\) subgroups, which are combinations of the
two covariates categories: dose levels and severity grades. We aim
to enroll \(n=600\) patients from the \(802\) available patients. The
collection of feasible allocations is inherently constrained by the
number of patients in different severity grades, defined as
\[S=\{(w_1, \ldots, w_8)^\top \in S_0 \mid n(w_1+w_2+w_3+w_4) \leq 392, ~~ n(w_5+w_6+w_7+w_8) \leq 410\}.\]
The constraints specify that in the sample, the number of patients with
mild symptoms must not exceed \(392\) across all dose levels, while those
with moderate/severe symptoms must not exceed \(410\).
The parameters fitted from the trauma_data are
\[\begin{align*}
\boldsymbol\beta &= (\hat\beta_{11}, \hat\beta_{12}, \hat\beta_{13}, \hat\beta_{21}, \hat\beta_{22}, \hat\beta_{23}, \hat\beta_{31}, \hat\beta_{32}, \hat\beta_{33}, \hat\beta_{41}, \hat\beta_{42}, \hat\beta_{43})^\top \\
&= (-4.047, -0.131, 4.214, -2.225, -0.376, 3.519, -0.302, -0.237, 2.420, 1.386, -0.120, 1.284)^\top.
\end{align*}\]
The model can be written in the following format:
\[\begin{align*}
\log\left(\frac{\pi_{i1}}{\pi_{i2}+\dots+\pi_{i5}}\right) &= \beta_{11}+\beta_{12}x_{i1}+\beta_{13}x_{i2}\\
\log\left(\frac{\pi_{i1}+\pi_{i2}}{\pi_{i3}+\pi_{i4}+\pi_{i5}}\right) &= \beta_{21}+\beta_{22}x_{i1}+\beta_{23}x_{i2}\\
\log\left(\frac{\pi_{i1}+\pi_{i2}+\pi_{i3}}{\pi_{i4}+\pi_{i5}}\right) &= \beta_{31}+\beta_{32}x_{i1}+\beta_{33}x_{i2}\\
\log\left(\frac{\pi_{i1}+\dots+\pi_{i4}}{\pi_{i5}}\right) &=\beta_{41}+\beta_{42}x_{i1}+\beta_{43}x_{i2}
\end{align*}\]
where \(i=1,\dots,8\).
We use the R codes below to define the model matrix and coefficients.
> J=5; p=12; m=8; #response levels; parameters; subgroups
> #coefficients
> beta = c(-4.047, -0.131, 4.214, -2.225, -0.376, 3.519, -0.302, -0.237, 2.420, 1.386,
+ -0.120, 1.284)
> #define design matrix of 8 subgroups
> Xi=rep(0,J*p*m); dim(Xi)=c(J,p,m);
> Xi[,,1] = rbind(c( 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 0), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,2] = rbind(c( 1, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 2, 0, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 2, 0, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 0), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,3] = rbind(c( 1, 3, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 3, 0, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 3, 0, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 3, 0), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,4] = rbind(c( 1, 4, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 4, 0, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 4, 0, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 4, 0), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,5] = rbind(c( 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 1, 1, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 1, 1, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,6] = rbind(c( 1, 2, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 2, 1, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 2, 1, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 1), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,7] = rbind(c( 1, 3, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 3, 1, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 3, 1, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 3, 1), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))
> Xi[,,8] = rbind(c( 1, 4, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0),
+ c( 0, 0, 0, 1, 4, 1, 0, 0, 0, 0, 0, 0), c( 0, 0, 0, 0, 0, 0, 1, 4, 1, 0, 0, 0),
+ c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 4, 1), c( 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0))To define the sample size, the constraints, and the functions of lower and upper boundaries \(r_{i1}\) and \(r_{i2}\), we may use the following R codes (see Section S3 in the Supplementary Material of (Huang, Tong, and Yang 2025) for details on finding \(r_{i1}\) and \(r_{i2}\)):
> nsample=600 #sample size
> constraint = c(392, 410) #mild:severe
> #lower bound function in step 3 of constrained liftone
> lower.bound <- function(i, w0){
+ n = 600
+ constraint = c(392,410)
+ if(i <= 4){
+ a.lower <- (sum(w0[5:8])-(constraint[2]/n)*(1-w0[i]))/(sum(w0[5:8]))}
+ else{
+ a.lower <- (sum(w0[1:4])-(constraint[1]/n)*(1-w0[i]))/(sum(w0[1:4]))}
+ a.lower}
> #upper bound function in step 3 of constrained liftone
> upper.bound <- function(i, w0){
+ n = 600
+ constraint = c(392,410)
+ if(i <= 4){
+ b.upper <- ((constraint[1]/n)*(1-w0[i]) - (sum(w0[1:4])-w0[i]))/(1-sum(w0[1:4]))}
+ else{
+ b.upper <- ((constraint[2]/n)*(1-w0[i]) - (sum(w0[5:8])-w0[i]))/(1-sum(w0[5:8]))}
+ b.upper}
> #define constraints
> g.con = matrix(0,nrow=length(constraint)+1+m, ncol=m)
> g.con[2:3,] = matrix(data=c(1,1,1,1,0,0,0,0,0,0,0,0,1,1,1,1), ncol = m, byrow=TRUE)
> g.con[1,] = rep(1, m)
> g.con[4:(length(constraint)+1+m), ] = diag(1, nrow=m)
> g.dir = c("==", "<=","<=", rep(">=",m))
> g.rhs = c(1, ifelse((constraint/nsample<1),constraint/nsample,1), rep(0, m))Then, we may define an optional label of the sampling subgroups that corresponds to each of the \(m=8\) subgroups using the following code:
> label=label = c("Placebo-Mild", "Low-Mild", "Medium-Mild", "High-Mild", "Placebo-Severe",
+ "Low-Severe", "Medium-Severe", "High-Severe")We then run the constrained lift-one algorithm to find the constrained
D-optimal approximate allocation using liftone_constrained_MLM()
function and convert the approximate allocation to an exact allocation
with approxtoexact_constrained_func function.
> set.seed(123)
> approx_design = liftone_constrained_MLM(m=m, p=p, Xi=Xi, J=J, beta=beta,
+ lower.bound=lower.bound, upper.bound=upper.bound, g.con=g.con, g.dir=g.dir,
+ g.rhs=g.rhs, w00=NULL, link='cumulative', Fi.func=Fi_func_MLM, reltol=1e-5,
+ maxit=500, delta=1e-6, epsilon=1e-8, random=TRUE, nram=3, label=label)
> exact_design = approxtoexact_constrained_func(n=600, w=approx_design$w, m=8,
+ beta=beta, link='cumulative', X=Xi, Fdet_func=Fdet_func_MLM,
+ iset_func=iset_func_trauma, label=label)
> print(exact_design)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
Placebo-Mild Low-Mild Medium-Mild High-Mild Placebo-Severe
allocation 155.0 0.0 0.0 100.0 168.0
allocation.real 0.2593 0.0 0.0 0.1667 0.2796
Low-Severe Medium-Severe High-Severe
allocation 0.0 0.0 177.0
allocation.real 0.0 0.0 0.2944
--------------------------------------------------------------------------------
det.maximum :
1.63163827059162e+23
--------------------------------------------------------------------------------The allocation output provides the exact allocation of the sampling
across different treatment-severity subgroups, representing the
implementable sample sizes for each subgroup. The result is derived by
converting the allocation.real, which is the D-optimal approximate
allocation outcome from liftone_constrained_MLM().
As the trauma_data example doesn’t have bounded constraints, to find
the constrained uniform sampling allocation, we use
approxtoexact_constrained_func() with one subject in each stratum or
subgroup as the input, that is, the approximate allocation
\(\mathbf w = (1/600, 1/600, 1/600, 1/600,\)
\(1/600, 1/600, 1/600, 1/600)\). The corresponding \(I\) set function is
provided in the
CDsampling package,
and it can be easily defined according to other constraints, see
Section S4 of Supplementary Material. Note that the determinant provided
by approxtoexact_constrained_func() for different designs is not
comparable, as the criteria Fdet_func differs.
> unif_design = approxtoexact_constrained_func(n=600, w=rep(1/600,8), m=8,
+ beta=NULL, link=NULL, X=NULL, Fdet_func=Fdet_func_unif, iset_func=iset_func_trauma)
> print(unif_design)
Optimal Sampling Results:
================================================================================
Optimal exact allocation:
Placebo-Mild Low-Mild Medium-Mild High-Mild Placebo-Severe Low-Severe
allocation 75.0 75.0 75.0 75.0 75.0 75.0
allocation.real 0.0017 0.0017 0.0017 0.0017 0.0017 0.0017
Medium-Severe High-Severe
allocation 75.0 75.0
allocation.real 0.0017 0.0017
--------------------------------------------------------------------------------
det.maximum :
1001129150390625
--------------------------------------------------------------------------------4 Summary
The current version of
CDsampling
implements D-optimal allocations within both paid research sampling and
general study frameworks with or without constraints. Its primary
objective is to optimize sampling allocations for better model
estimation accuracy in the studies. The package includes F_func_GLM()
and F_func_MLM() for the computation of the Fisher information matrix
of GLMs and MLMs, respectively. It is noteworthy that standard linear
regression models are special GLMs with an identity link function and
Gaussian-distributed responses, which is also supported by our package.
Theoretical results are summarized in
Section 2.2 and
Section 2.3 while illustrative examples are
provided in Supplementary Section S1.
To find standard or unconstrained D-optimal allocations, our package
implements the lift-one algorithm through functions liftone_GLM() and
liftone_MLM(). Paid research studies often impose sampling
constraints. To address this, the constrained lift-one algorithm can be
applied using functions liftone_constrained_GLM() and
liftone_constrained_MLM(). An example illustrating the difference
between the lift-one algorithm and the constrained lift-one algorithm is
provided in Supplementary Section S2 while
Section 3
presents two application examples from paid research studies.
In the absence of model information, constrained_uniform() function is
available to find a robust constrained uniform allocation with bounded
constraints, while the function can be used to find constrained uniform
allocation with more general constraints. For transitioning from
approximate to exact allocations, the package provides
approxtoexact_constrained_func() for constrained cases and for
unconstrained cases. Detailed applications for both GLMs and MLMs are
provided in Sections 3.1
and 3.2.
Future enhancements of the package may aim to incorporate a broader spectrum of optimality criteria, such as A-optimality and E-optimality, as well as some models beyond GLMs and MLMs to expand its applicability.
5 Supplementary materials
Supplementary materials are available in addition to this article. It can be downloaded at RJ-2025-008.zip
6 CRAN packages used
CDsampling, sampling, SamplingStrata, AlgDesign, OptimalDesign, acebayes, OPDOE, cubature
7 CRAN Task Views implied by cited packages
Bayesian, ExperimentalDesign, NumericalMathematics, OfficialStatistics
8 Note
This article is converted from a Legacy LaTeX article using the texor package. The pdf version is the official version. To report a problem with the html, refer to CONTRIBUTE on the R Journal homepage.
