This article presents the CvmortalityMult R package, a novel tool designed for modelling, forecasting and evaluating mortality models for several populations. The package facilitates the fitting and forecasting of multipopulation mortality models, providing accurate projections in an increasingly interconnected world characterized by minimal or no borders between countries. By incorporating different cross-validation (CV) techniques, the package allows for the assessment of the forecasting accuracy of multipopulation mortality models for specific countries or regions within a country. Through an empirical application to Spanish regions, we demonstrate the efficacy and simplicity of the CvmortalityMult R package in selecting and evaluating multipopulation mortality models. By providing accessible tools for mortality modelling, forecasting and testing, this package stands out as a valuable resource for advancing the understanding and forecasting of mortality trends across diverse populations. Its contributions extend to enhancing decision-making in critical fields such as life insurance, public health, and pension plan sustainability.
Currently, the loss of clear and defined borders between
states/countries is leading populations worldwide to experience a
similar dynamic of mortality. Indeed, mortality improvements or
reductions can rapidly spread to other countries, causing correlated
mortality dynamics, as observed with the COVID-19 pandemic. Thus,
multipopulation mortality models provide a valuable approach for
considering mortality membership in a group rather than individually (N.
Li and Lee 2005). These models enable the joint fitting of multiple
populations, regions in the same country, or both sexes simultaneously.
On the basis of the original Lee and Carter (1992) model, many researchers have developed models to fit the mortality of related populations or countries with similar socioeconomic statutes or even both sexes in the same population (Brouhns, Denuit, and Vermunt 2002; Debón, Montes, and Martı́nez-Ruiz 2011; Dowd et al. 2011; Jarner and Kryger 2011; J. S.-H. Li and Hardy 2011; Russolillo, Giordano, and Haberman 2011; Villegas and Haberman 2014; Danesi, Haberman, and Millossovich 2015; Chen and Millossovich 2018; Bégin, Sanders, and Xu 2023). The application of these multipopulation mortality models is relevant in diverse contexts, facilitating the concurrent modelling of multiple populations. This is particularly true within the field of life insurance, where companies operate worldwide and make assumptions about future mortality trends. Therefore, using such models ensures the consistency and reliability of the products across different countries. Notably, in the European Union, where gender-neutral pricing is enforced, it is necessary to model both sexes simultaneously (Ahmadi and Li 2014). Moreover, multipopulation mortality models can include the correlation structure among populations when projecting future trends (Antonio et al. 2017; Bozikas and Pitselis 2020).
The rise of “big data” has shifted the focus of many problems, and its methods have become a new field complementary to statistics. Within this domain, “resampling methods” are fundamental tools; these techniques are based on repeatedly drawing samples from a dataset and refitting models to obtain additional information. Advances in computational power have increased researchers’ interest in these methods, which were developed in 1990. The two most common types of “resampling methods” are bootstrap and “cross-validation” (CV) methods (James, Witten, Hastie, and Tibshirani 2013).
Bootstrap is a fundamental tool in the actuarial field that has had multiple applications throughout the literature. This method has been employed for various purposes, such as prediction errors in claim insurance (England and Verrall 1999), establishing confidence bounds for discounted reserves (Hoedemakers et al. 2003), and estimating confidence intervals in mortality through different bootstrap versions (Brouhns, Denuit, and Van Keilegom 2005; Koissi, Shapiro, and Högnäs 2006; Debón, Montes, and Puig 2008; Liu and Braun 2010; D’Amato et al. 2012). The CV method divides sample data into k folds, where \(k-1\) subsets are typically employed to train the model(s), and the remaining set is used to test the forecasting accuracy (Hastie, Tibshirani, and Friedman 2009). The process is iterated k times. For time series data, preserving the chronological order of the sets is necessary. This technique has been employed in other fields, such as finance, biology, and marketing. When applying CV methods to mortality modelling, these techniques must be adapted to time series analysis to use all available data for both testing and training (Tashman 2000; Bergmeir and Benı́tez 2012), which are also known as time series CVs (Hastie, Tibshirani, and Friedman 2009). Specifically, in each iteration, the training set must consist of observations that chronologically occurred before the test set observations corresponding to the end of each series (Hyndman and Athanasopoulos 2021). Furthermore, in our analysis, each observation corresponds to a three-way array involving three categories: age, period and region or country. As a result, these methods have been adapted to assess the forecasting ability of multipopulation mortality models appropriately.
In the context of mortality modelling it should be noted that only recently researchers have applied CV techniques. However, most applications have focused on single-population models, see, for instance, Villegas et al. (2017; Hyndman et al. 2019; Atance, Debón, and Navarro 2020; Kessy et al. 2022; SriDaran et al. 2022; Lindholm and Palmborg 2022), and Barigou et al. (2023). To the best of our knowledge, the existing literature on the use of resampling methods in mortality modelling has focused on single-population mortality models, and among these studies, only one SriDaran et al. (2022) introduced a CV function designed for fitting, forecasting, and testing out-of-sample age-specific probabilities of death, with the selection of the testing period based on the mean squared error (MSE) measure.
This paper introduces the CvmortalityMult R package, which allows us to fit and forecast five multipopulation mortality models. Moreover, this package enables the application of CV methods to select the “best” multipopulation mortality model in forecasting among different scenarios. The idea is to determine which model produces the best forecasting outcomes for the period and the selected countries or regions. To achieve this goal, we implement several CV techniques following the terminology established by Tashman (2000) and Bergmeir and Benı́tez (2012) for evaluating time-series forecasts. Additionally, we adapt the methodology proposed by Atance, Debón, and Navarro (2020), which is primarily designed for single-population mortality models, to evaluate the forecasting ability of multipopulation mortality models over short, medium and long term horizons. The package incorporates multiple CV techniques to facilitate this evaluation.
Moreover, the package includes five variations of the classical Lee and Carter (1992) model to fit and forecast mortality in regions/populations that form part of a group rather than considering them individually. First, Russolillo, Giordano, and Haberman (2011) proposed adding a new multiplicative effect to represent different countries/regions within a multiplicative mortality model. Second, Debón, Montes, and Martı́nez-Ruiz (2011) integrated the region/country effect as an additive index through an additive model. Third, Carter and Lee (1992) and N. Li and Lee (2005) first modelled the entire group and then incorporated a specific term for each region/country using the common-factor model. Fourth, Carter and Lee (1992) and Wilmoth and Valkonen (2001) proposed the joint-K model, which includes two specific country/region terms along with a common trend. Finally, N. Li and Lee (2005) and Hyndman and Ullah (2007) extended the common-factor model by incorporating two additional region/country terms with the augmented common-factor model. These five multipopulation mortality models were chosen because of their promising results compared with those of other mortality models (Debón, Montes, and Martı́nez-Ruiz 2011; Dong et al. 2020), and their frequent usage in multipopulation modelling literature (Villegas et al. 2017). We introduce into the CvmortalityMult R package several functions that allow us to fit, forecast and evaluate those five multipopulation mortality models. However, if the functions detect only one population, they can fit the well-known Lee and Carter (1992) model.
The paper is structured as follows. Section 2 focuses on describing multipopulation mortality models. Section 3 discusses the CV methods in multipopulation mortality models. Section 4 presents the CvmortalityMult R package, installation and the main functions. Section 5 presents a case study detailing the use of the package. Finally, Section 6 draws conclusions from the results in the previous section.
In this section, we introduce five of the most important multipopulation
mortality models, which serve as benchmarks to test the forecasting
accuracy using CV methods. Indeed, the
CvmortalityMult
R package requires a set of crude age-specific probabilities of death
for age \(x\), period \(t\) and, in each region \(i\), \(\dot{q}_{x,t,i}\).
These crude rates are directly obtained as
\(\dot{q}_{x,t,i}=d_{x,t,i}/E^{0}_{x,t,i}\), where \(d_{x,t,i}\) represents
the number of recorded deaths and \(E_{x,t,i}\) denotes the initial
population exposed to risk for an age \(x\), period \(t\) and, region \(i\).
Crude mortality rates, along with other life table indicators, can be
obtained using the LifeTable
function from the MortalityLaws R
package (Pascariu 2022). This set of crude probabilities is then used to
generate smoothed and forecasted estimates, \(\hat{q}_{x,t,i}\), of the
true but unknown mortality probabilities \(q_{x,t,i}\). Therefore, in the
context of multipopulation mortality data, “one observation ahead”
corresponds to a set of data containing the probabilities of death for
all ages and populations considered for the following year.
Russolillo, Giordano, and Haberman (2011) proposed incorporating a multiplicative index term into the Lee and Carter (1992) model to shift the mortality for each region in the population group. That is: \[\textrm{logit}\left(q_{x,t,i} \right)=\textrm{log}\left(\frac{q_{x,t,i}}{1-q_{x,t,i}}\right)=a_x + b_x \cdot k_t \cdot I_i + \varepsilon_{x,t,i}; \label{EQ_ruso} \tag{1}\] where \(a_x\) captures the general age shape of the mortality curve, \(k_t\) describes the general trend of the group of populations over time, \(b_x\) represents how each age-specific probability of death reacts to changes in the general level of mortality, and \(I_i\) represents a multiplicative index associated with mortality for each member of the group of populations considered. Both \(a_x\) and \(b_x\) are the common age-dependent and time-independent parameters for all the regions considered respectively, whereas \(k_t\) is the same for all considered regions and corresponds with the time-dependent parameter, as in the initial version of Lee and Carter (1992), \(I_i\) is a different index for each population considered.
Notably, the logit link function is employed to fit the age-specific probabilities of death. The logit transformation ensures that values of \(q_{x,t,i}\) between 0 and 1 (Lee 2000) are obtained. This transformation also maintains the historical ties to the early actuarial work of Perks (1932), as noted by Haberman and Renshaw (2011).
Debón, Montes, and Martı́nez-Ruiz (2011) propose incorporating an additive index term into the Lee-Carter structure to modify the mortality of each region in the multipopulation model. Its expression is as follows: \[\textrm{logit}\left(q_{x,t,i} \right)=\textrm{log}\left(\frac{q_{x,t,i}}{1-q_{x,t,i}}\right)=a_x + b_x \cdot k_t + I_i + \varepsilon_{x,t,i}. \label{EQ_addit} \tag{2}\] As in the previous model, the same components \(a_x\), \(b_x\) and \(k_t\) are shared across all the studied regions (populations). This fact is a necessary and sufficient condition to avoid divergence in the forecasting of age-specific probabilities of death of subpopulations; see Debón, Montes, and Martı́nez-Ruiz (2011) and Ahcan et al. (2014). The number of parameters is the same as that in the model of Russolillo, Giordano, and Haberman (2011), with similar interpretations except for \(I_i\); more details are given in Debón, Montes, and Martı́nez-Ruiz (2011). However, the additive formulation provides a more straightforward structure than the multiplicative formulation does because it incorporates regional effects through an additive index term.
Carter and Lee (1992) and N. Li and Lee (2005) proposed modelling the mortality of different populations through a common long-term component for the whole group combined with an age-dependent specific term for each population \(i\). This model is represented as: \[\textrm{logit}\left(q_{x,t,i} \right)=\textrm{log}\left(\frac{q_{x,t,i}}{1-q_{x,t,i}}\right)=a_{x,i} + B_x \cdot K_t + \varepsilon_{x,t,i}, \label{EQ_CFM} \tag{3}\] where \(a_{x,i}\) represents the baseline shape of the mortality curve for each \(i\)th specific population, while the long-term change over time across the whole mortality group is captured by \(B_x \cdot K_t\). These parameters serve the same function as \(b_x\) and \(k_t\) do in previous mortality models but apply to the whole group of populations.
Carter and Lee (1992) and Wilmoth and Valkonen (2001) introduced a model that assumes two specific population age-dependent terms, and a common trend among the group of populations, is given by: \[\textrm{logit}\left(q_{x,t,i} \right)=\textrm{log}\left(\frac{q_{x,t,i}}{1-q_{x,t,i}}\right)=a_{x,i} + b_{x,i} \cdot k_{t} + \varepsilon_{x,t,i}. \label{EQ_jointk} \tag{4}\] where \(k_{t}\) represents a common mortality trend among the different considered populations while \(a_{x_{i}}\) and \(b_{x_{i}}\) are specific for each population \(i\). Indeed, the \(a_{x_{i}}\) parameter retains the same meaning as in the common factor mortality model, and \(b_{x_{i}}\) captures the effect of a time-varying mortality index \(k_t\) at age \(x\) for each population \(i\).
N. Li and Lee (2005) and Hyndman, Booth, and Yasmeen (2013) introduced two population-specific terms to the common factor model. This model is expressed as: \[\textrm{logit}\left(q_{x,t,i} \right)=\textrm{log}\left(\frac{q_{x,t,i}}{1-q_{x,t,i}}\right)=a_{x,i} + B_x \cdot K_t + b_{x,i} \cdot k_{t,i} + \varepsilon_{x,t,i}. \label{EQ_ACFM} \tag{5}\] The first three terms correspond to the components of the common-factor mortality model (3), whereas \(b_{x_i} \cdot k_{t_i}\) captures deviations in the short to medium-term changes in the age-specific probability of death for each population \(i\) to the common trend. Importantly, including the population-specific terms \(b_{x_i}\) and \(k_{t_i}\) may imply significant divergences in the mortality forecasts across different populations. Our choice of capital letters in Equations (3) and (5) follows the notation introduced by N. Li and Lee (2005), who use upper-case symbols to denote the common (or “group-wide”) Lee–Carter factor and lower-case symbols for the population-specific effects.
All the models discussed are implemented using the software R Core Team (2022) via the gnm library (Turner and Firth 2023). Details on the calibration approach can be found in Debón, Montes, and Martı́nez-Ruiz (2011). The parameters are obtained by maximizing the model’s log-likelihood, assuming a quasi-Binomial distribution of deaths in all considered models: \[L\left( q_{x,t,i}; \hat{q}_{x,t,i}\right) = \sum_{x} \sum_{t} \sum_{i} w_{x,t,i} \left\lbrace q_{x,t,i} \cdot \log \left( \hat{q}_{x,t,i}\right) + \left(1 - q_{x,t,i}\right) \cdot \log\left(1-\hat{q}_{x,t,i}\right) + \textrm{cte} \right\rbrace,\] where \(w_{x,t,i}\) corresponds to weights assigned to each age, period, and population considered, \(\hat{q}_{x,t,i}\) is derived by rearranging the terms in Equation (1): \[\hat{q}_{x,t,i} = \frac{e^{a_x + b_x \cdot k_t \cdot I_i}}{1+e^{a_x + b_x \cdot k_t \cdot I_i}},\] in the case of the multiplicative model. For the other models, the corresponding inverse transformations apply for (2) – (5). We maximize the log-likelihood function because it is an effective estimation method in the actuarial and demography literature for the parameter estimation process (Brouhns, Denuit, and Vermunt 2002; Renshaw and Haberman 2006; A. J. Cairns et al. 2009).
To project the age-specific probabilities of death, \(q_{x,t,i}\), it is essential to forecast the value of the trend parameters \(k_{t_{n}}\), \(k_{t_{n},i}\), and \(K_{t_n}\) for all the multipopulation mortality models. These models are formulated as follows: \[\begin{split} \textrm{Multiplicative} & \rightarrow \textrm{logit} \left(q_{x,t_n + s,i} \right) = a_x + b_x \cdot k_{t_n + s} \cdot I_i,\\ \textrm{Additive} & \rightarrow \textrm{logit} \left(q_{x,t_n + s,i} \right) = a_x + b_x \cdot k_{t_n + s} + I_i,\\ \textrm{Common-factor} & \rightarrow \textrm{logit} \left(q_{x,t_n + s,i} \right) = a_{x,i} + B_x \cdot K_{t_n + s},\\ \textrm{Joint-k} & \rightarrow \textrm{logit} \left(q_{x,t_n + s,i} \right) = a_{x,i} + b_{x,i} \cdot k_{t_n + s},\\ \textrm{Augmented common-factor} & \rightarrow \textrm{logit} \left(q_{x,t_n + s,i} \right) = a_{x,i} + B_x \cdot K_{t_n + s} + b_{x,i} \cdot k_{t_{\left({n} + s\right)},i},\\ \end{split}\] where \(q_{x,t_n + s,i}\) corresponds to the forecasted age-specific probability of death for age \(x\), period \(t_{n} + s\) and population \(i\), and \(k_{t_n + s}\), \(k_{t_{\left({n} + s\right)},i}\), \(K_{t_n + s}\) are the projections of the trend parameters \(k_{t_{n}}\), \(k_{t_{n},i}\), and \(K_{t_n}\) considering that \(t_n\) is the last in-sample period.
In the
CvmortalityMult
R package, three alternative approaches are considered to project the
time series \(k_t\), \(K_{t}\) and \(k_{t_i}\), assuming they follow ARIMA
(autoregressive integrated moving average model) independent processes.
First, a random walk with drift (ARIMA (0,1,0) with drift) is assumed,
which is a common assumption in the actuarial literature (A. Cairns,
Blake, and Dowd 2006; Haberman and Renshaw 2011; Villegas, Kaishev, and
Millossovich 2018). Second, the
CvmortalityMult
R package allows the user to assume the best ARIMA (p,d,q) model
according to the auto.arima
function in the forecast R- package
(Hyndman and Khandakar 2008; Hyndman et al. 2023) for each trend
parameter \(k_t\), \(K_{t}\) and/or \(k_{t_i}\), as described by Debón,
Montes, and Puig (2008), Villegas, Kaishev, and Millossovich (2018) and
Hunt and Blake (2020). The auto.arima
function determines the best
ARIMA (p,d,q) model on the basis of the outcomes according to the
corrected Akaike information criterion (AICc). Third, users can specify
the (p, d, q) order for each ARIMA model by setting the corresponding
parameters. Across the three approaches, the user can decide whether to
include different ARIMA configurations by changing the arguments in the
auto.arima
or Arima
functions as in the forecast R package.
CV is a tool that focuses on assessing the predictive power of models. Identifying the best model benefits insurance companies in actuarial and financial applications, such as pricing and reserving, where forecasting is arguably more relevant than explanation (SriDaran et al. 2022). Thus, this methodology is valuable for identifying which model is the most accurate forecaster for single-population mortality models (Atance, Debón, and Navarro 2020) and can be used for a set of related populations. This section describes the CV methods (Burman 1989; Bergmeir and Benı́tez 2012) applied to evaluate the out-of-sample accuracy of multipopulation models.
The performance of a model varies between in-sample and out-of-sample evaluations (Bartolomei and Sweet 1989; Pant and Starbuck 1990). Therefore, partitioning data into training and test sets is fundamental for accurately assessing the forecasting ability of models. Various possibilities exist for evaluating time series forecasts, also referred to as the CV in time series (Hastie, Tibshirani, and Friedman 2009). These methods differ on the basis of the forecast horizon and the method of forecasting the out-of-sample validation, also known as “last block evaluation” in individual time series analysis (Tashman 2000; Bergmeir and Benı́tez 2012). Among the different available methods, we have adapted several approaches in CvmortalityMult R package to assess the forecasting ability of multipopulation mortality models from different perspectives. Specifically, we follow the terminology established by Tashman (2000) and Bergmeir and Benı́tez (2012) to evaluate time series forecasting but adapt it for multipopulation mortality models.

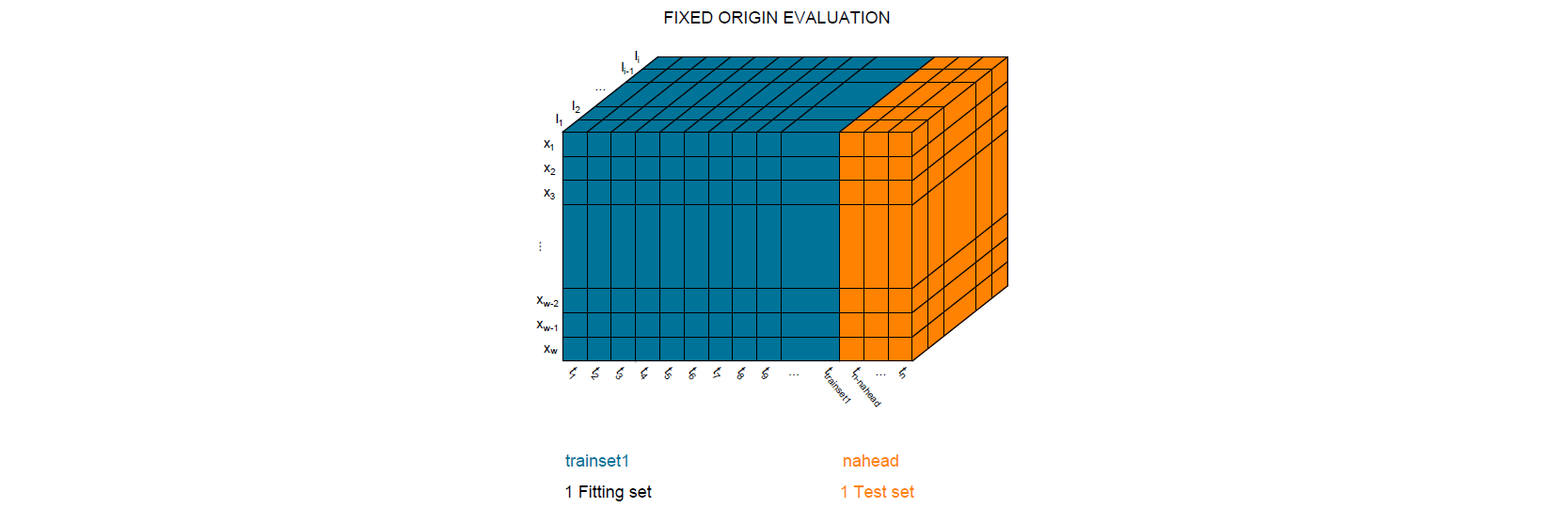

Fixed-origin evaluation, also known as the out-of-sample test or hold-out method (Lachenbruch and Mickey 1968; Tashman 2000), is one of the most commonly used methods for assessing the forecasting accuracy of mortality models (Ahcan et al. 2014; Atance, Balbás, and Navarro 2020). In this approach, adapted for time series analysis, the dataset is chronologically divided only once into training and test sets. The model is fitted using the training set, with its final point as the fixed origin for forecasting, as shown 1 for a three-way array that incorporates three dimensions: ages in rows, periods in columns, and regions in the third dimension. This fixed-origin method generates a single forecast to predict all or specific periods in the test set. The forecasting accuracy is then evaluated for different forecast horizons.
This CV approach has also been employed for assessing the forecasting ability of multipopulation mortality models; see, for instance, Danesi, Haberman, and Millossovich (2015), Antonio et al. (2017) and Bozikas and Pitselis (2020).
trainset1
,
whereas the forecast horizon is defined by nahead
. To ensure the
proper application of the fixed-origin evaluation, the sum of
trainset1
and nahead
must equal the total number of provided

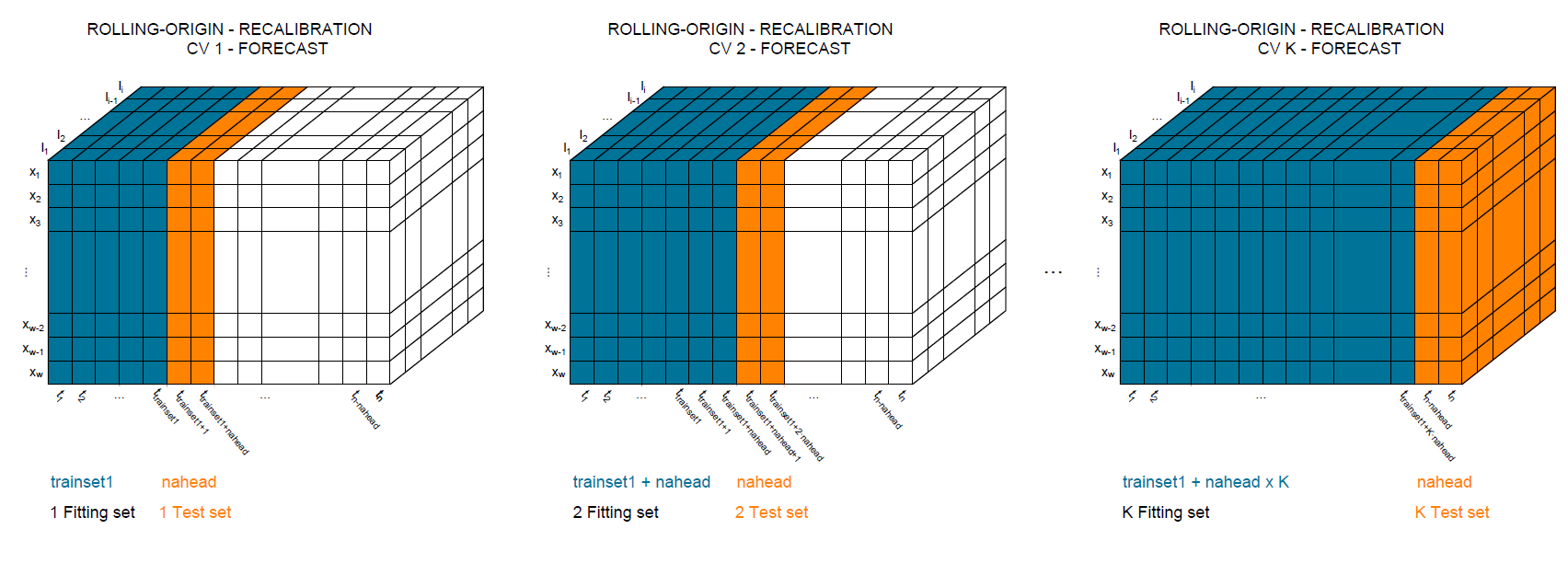

periods.In rolling-origin-recalibration (RO-recalibration) evaluation for time series, we initiate the procedure by partitioning the sample into “k” subsets of data, while maintaining the chronological order. The first subset corresponds to the training set, and forecasts are generated with a fixed horizon to assess the model’s performance. In each iteration, the model is recalibrated by incorporating all preceding information in the training set (Armstrong and Grohman 1972; Tashman 2000; Bergmeir and Benı́tez 2012; Hyndman and Athanasopoulos 2021). The test set periods are sequentially added to the training set to forecast the next set of periods, as shown in 2. Consequently, the beginning of the evaluation shifts forward at each iteration. The model’s accuracy is assessed using the average forecasting performance across the \(k\) iterations: \[\textrm{RO-recalibration}_k = \frac{1}{k}\sum^k_{i=1} \textrm{Goodness of fit measure}_i. \label{Eq.KFold} \tag{6}\] In this type of time series CV, the specific variant of rolling-origin (RO) recalibration applied depends on the size of the initial training set and the forecast horizon of each test set. For instance, k-fold CV (Hastie, Tibshirani, and Friedman 2009; James, Witten, Hastie, Tibshirani, and others 2013; Bergmeir, Hyndman, and Koo 2018) requires the training set size and forecast horizon for each test set to be equal. Notably, to our knowledge, the application of the k-fold CV for analysing the forecasting proficiency of multipopulation mortality models has yet to be documented. We recommend that the initial training set contain more periods than the forecast horizon does to ensure reliable results. If the training and test set sizes differ, the common version RO-recalibration should be applied.
Notably, the “leave-one-out CV” (LOOCV) (Burman 1989; Shao 1993) is a
special case of RO-recalibration, where the forecast horizon is equal to
one, regardless of the initial training set size. Unlike approaches that
generate two subsets of comparable size, LOOCV is a distinct approach
that involves selecting and forecasting a single observation as the test
set, whereas the preceding available observations constitute the
training set. To implement this approach, the procedure is repeated (n -
trainset1
) times, where \(n\) denotes the total number of observations
in the dataset and (trainset1
) is the size of the initial training
set.
Among the different resampling methods, this technique is widely acknowledged for assessing the predictive performance of single mortality models, as evidenced in various studies, such as those in H. Li and O’Hare (2019), Atance, Debón, and Navarro (2020), Barigou et al. (2023), and Atance and Navarro (2024). Additionally, only one preliminary work Atance and Debón (2022) applied RO-recalibration LOOCV, i.e., the prediction of multipopulation mortality models moving forward by one year for each iteration.
trainset1
, whereas nahead
specifies both the forecast horizon and

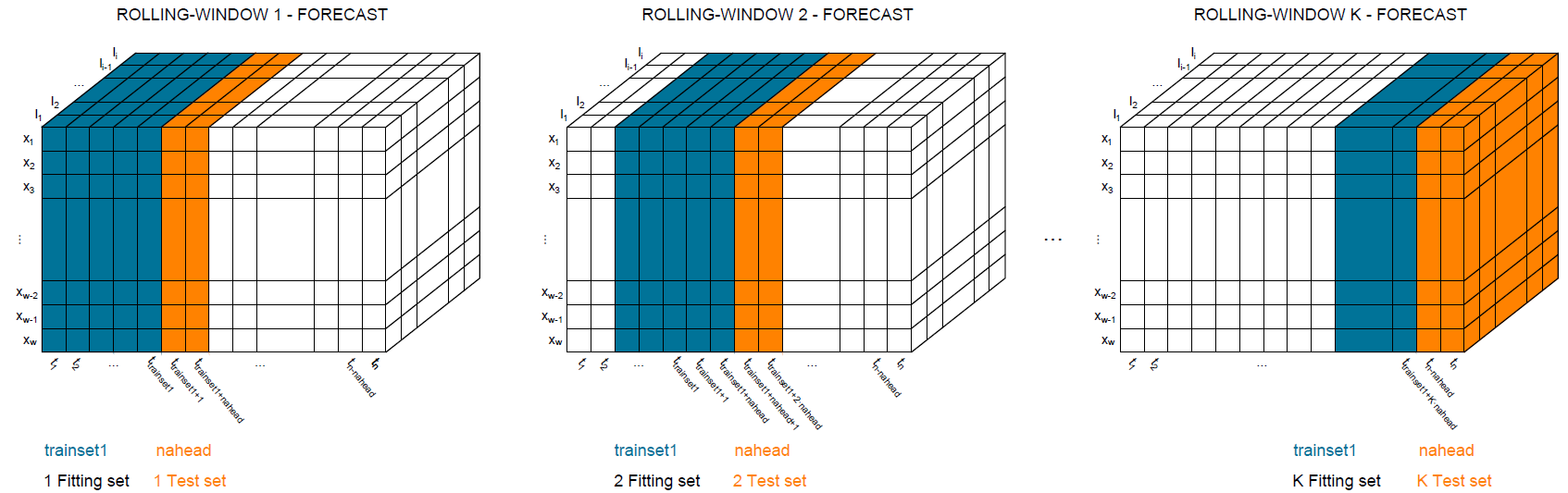

the size of each test set.“Rolling-window evaluation” is similar to RO-recalibration but maintains a constant training set size across each forecast iteration (Armstrong and Grohman 1972; Tashman 2000). It is also referred to as “time series CV” (TSCV) (Hart 1994; Bergmeir and Benı́tez 2012), “fixed-size rolling-window” (Swanson and White 1997), or “fixed-size rolling sample” (Callen et al. 1996). Data are partitioned into training and test sets as in previous techniques. In each iteration, the training set incorporates the forecasted periods from the test set while discarding the earliest observations and preserving chronological order, as shown in 3. The model and the forecast origin are also recalibrated at each window/iteration. The forecasting accuracy of the model is assessed using the same procedure as that in RO-recalibration, as expressed in Eq. ((6)).
Similar to the RO-recalibration technique, there are different variants of rolling-window evaluation. Indeed, the common CV, k-fold CV and LOOCV approaches are also variants. However, in these approaches, the training set size is constant throughout the iterations.
trainset1
,
remains consistent across iterations, starting with an initial training
set. The argument nahead
specifies both the forecast horizon and the
size of each test set.To our knowledge, the CvmortalityMult R package provides the first function for analysing the forecasting ability of multipopulation mortality models using CV techniques. Notably, RO recalibration and rolling-window evaluation have not previously been implemented in any R package for assessing the forecasting accuracy of multipopulation mortality models. The CvmortalityMult R package addresses this gap by enabling the application of various time series CV methods.
Table 1 introduces the main functions incorporated in the CvmortalityMult R package, along with a brief description of every function. Furthermore, these functions have been categorized into four groups: fitting, forecasting, plotting, and CV. In the following sections, we explain with several examples the procedural details and parameter structure essential for using the primary functions of the package.
Initially, the procedure involves the use of five mortality multipopulation functions to calibrate age-specific probabilities of death across various regions (populations). Notably, the CvmortalityMult R package allows for the fitting of a single-mortality model when the user provides data for only one population.

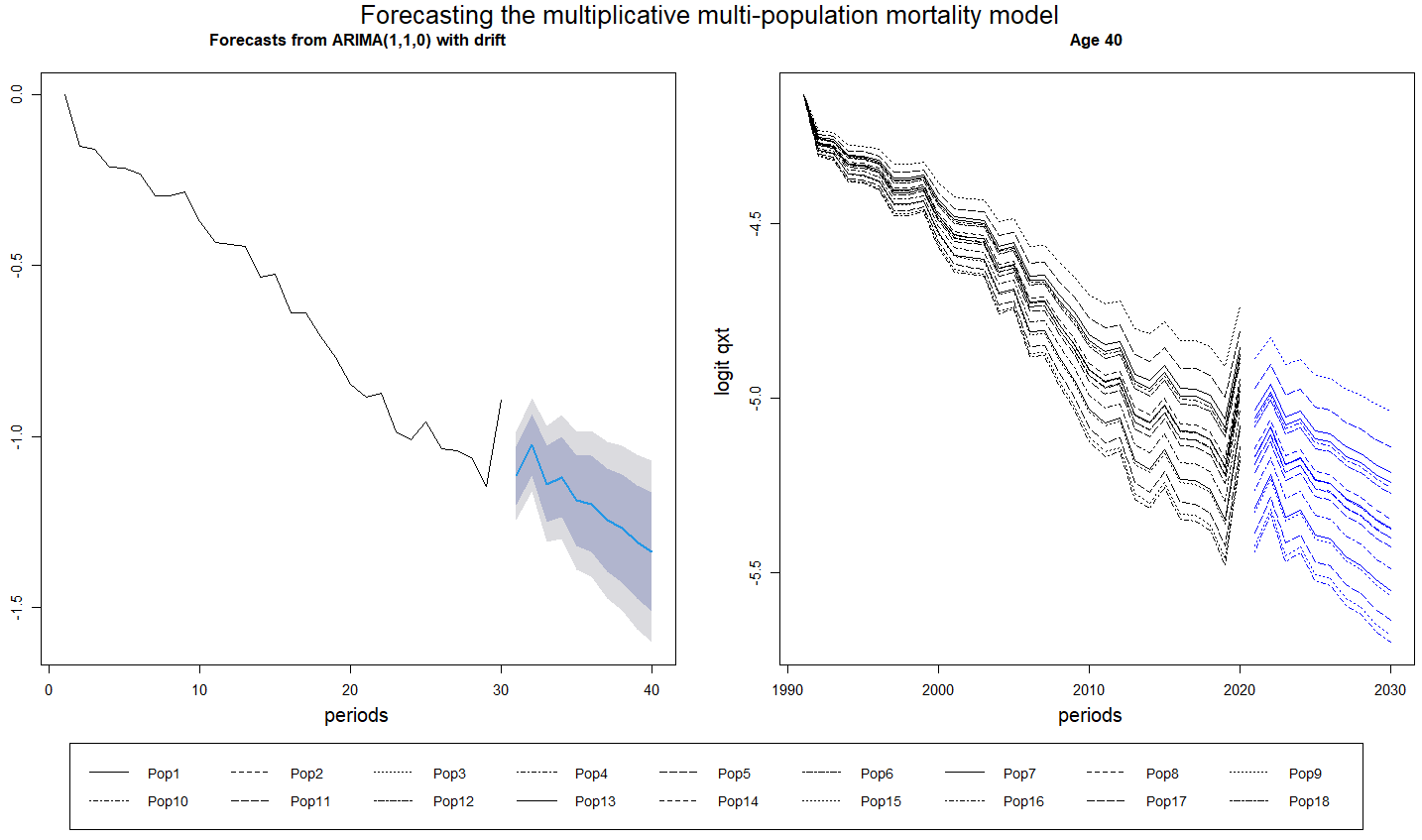

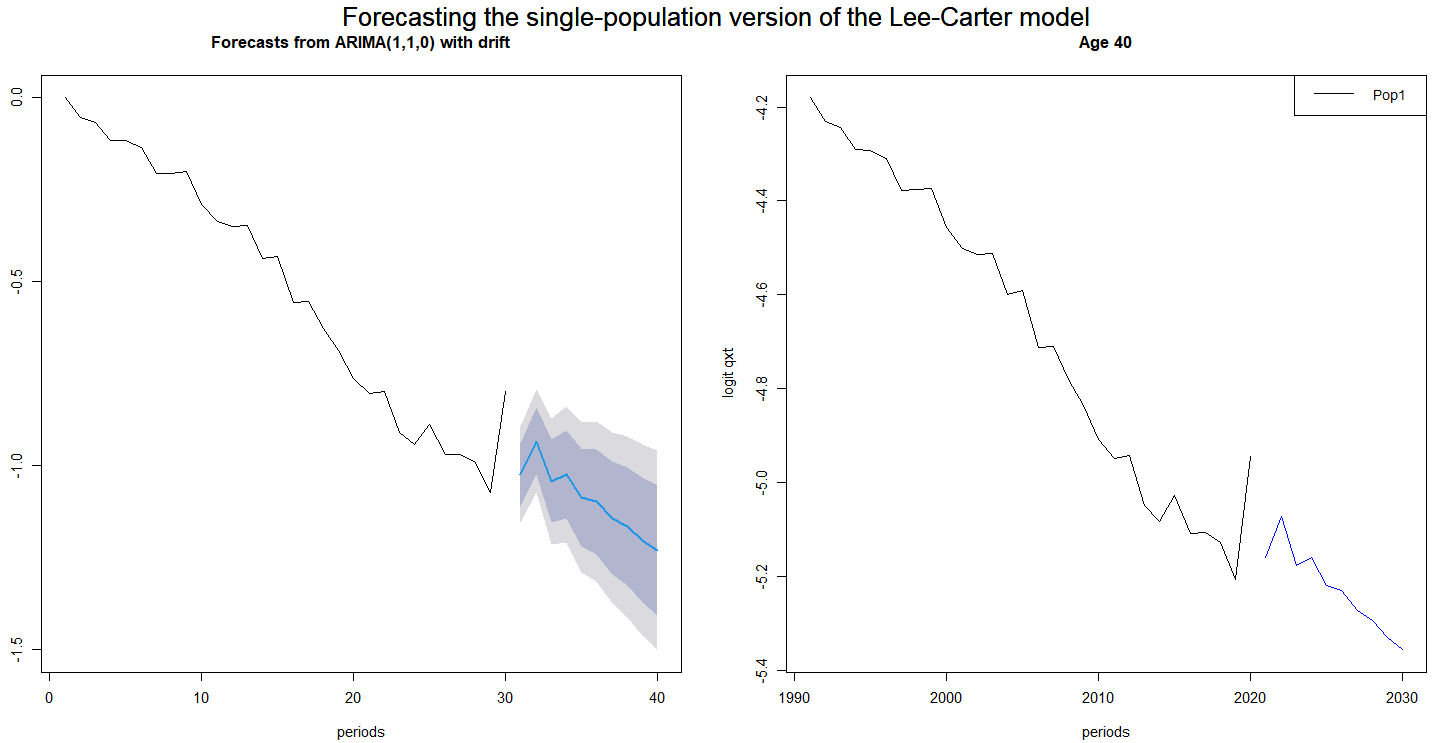

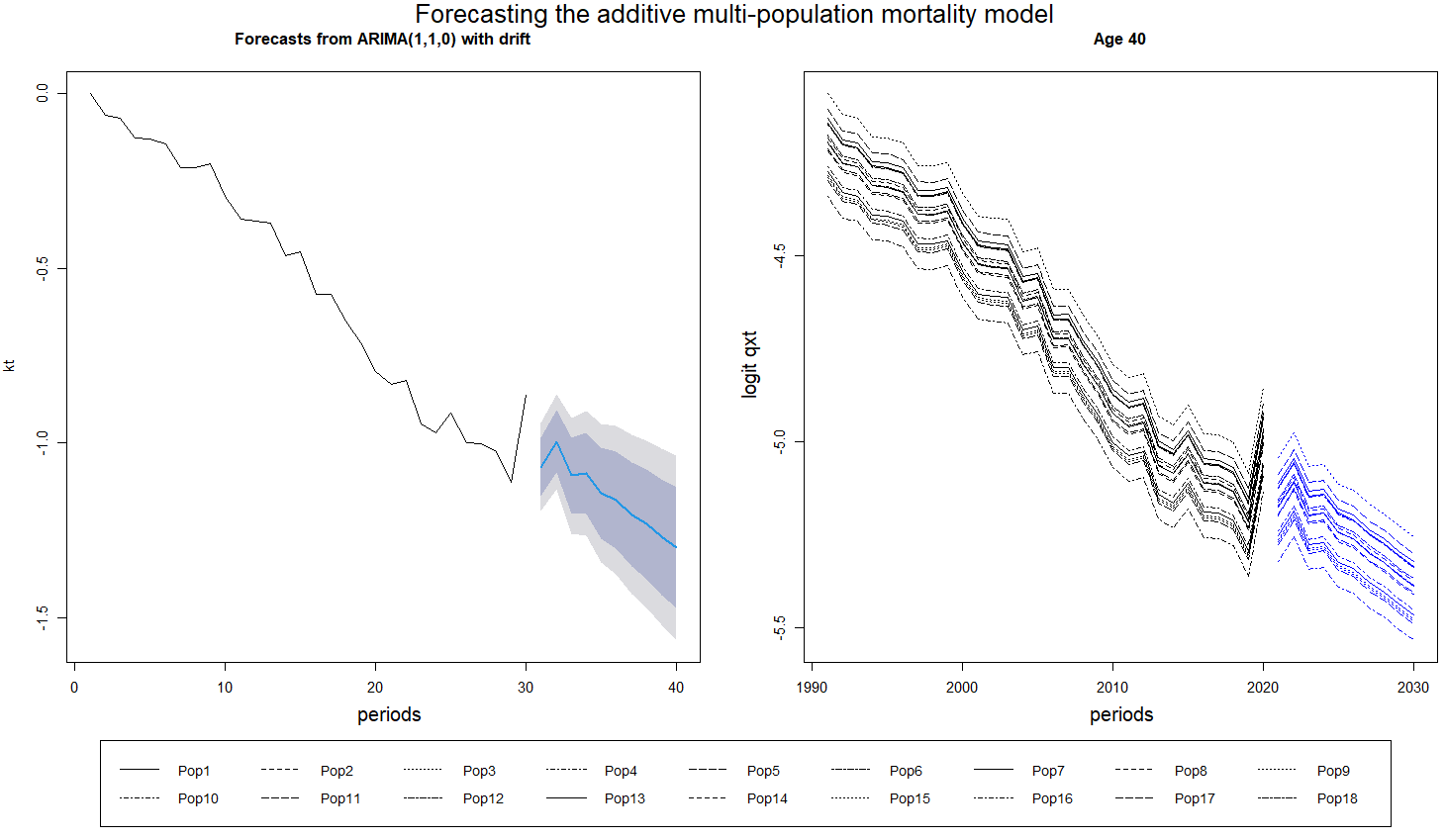

During the forecasting stage, the package subsequently facilitates age-specific probabilities of death projections under various \(ARIMA (p,d,q)\) specifications, employing the object obtained in the preceding step. During the plotting stage, users have the opportunity to visualize the parameters obtained in the initial fitting stage, forecasts of the age-specific probability of death, and displays specific values across the Spanish regions in a geographical map. This procedure allows for a comprehensive understanding of the behaviour exhibited by each population under consideration.
Finally, during the CV stage, we introduce the function for applying different resampling methods to assess the forecasting accuracy of multipopulation mortality models. This function enables the modification of the fitting and forecasting periods, uses the functions of the preceding steps, and allows for the evaluation of the model forecasting performance using various goodness-of-fit measures. Notably, the structure of the multipopulation mortality data was aligned with a three-way array (age \(\times\) time \(\times\) region/population). For each probability of death, data are available for different ages, periods and regions/populations. Consequently, the applications of CV techniques need to be adapted to evaluate the projecting ability of these models effectively.
Notably, this paper does not include an example of every function argument. However, the reader is referred to the function documentation and the package vignette for a complete description of the CvmortalityMult R package.
Function name | Brief description | |
---|---|---|
Fitting | fitLCmulti() |
Fitting the multiplicative, additive, |
common-factor, joint-k or | ||
augmented common-factor multipopulation | ||
mortality models, and the single version | ||
of the Lee-Carter model. | ||
Forecasting | forecast.fitLCmulti() |
Forecasting the multiplicative, additive, |
or S3 method forecast() |
common-factor, joint-k or | |
augmented common-factor multipopulation | ||
mortality models, and the single version | ||
of the Lee-Carter model. | ||
Plotting | plot.fitLCmulti() |
Plot the parameters for |
the S3 method plot() |
the multipopulation or single-population | |
mortality models. | ||
plot.forLCmulti() |
Plot the forecasting parameters for | |
the S3 method plot() |
the multipopulation or single-population | |
mortality models. | ||
SpainMap() |
Plot the regions of | |
Spain with the percentiles of the | ||
variable chosen by the users. | ||
CV | multipopulation_cv() |
CV techniques using the |
methods described in Section 3. | ||
Measures of accuracy | MeasureAccuracy() |
Measure for testing the accuracy |
of the single-population or multipopulation | ||
mortality models. |
Two datasets are included in the package: SpainRegions
and SpainNat
.
These datasets originate from the Spanish National Institute (Instituto
Nacional de Estadística, INE). Life tables and abridged lifetables were
obtained with the methodology proposed by Muriel, Cantalapiedra, and
López (2010) on the basis of the work in Elandt-Johnson and Johnson
(1980). On the one hand, the SpainRegions
dataset comprises 10800
observations, encompassing 20 age groups, 30 periods (1990 - 2020), and
18 regions for both males and females in Spain, including national data
(the regions in Spain are referred to as autonomous communities). On the
other hand, the SpainNat
dataset contains 600 observations,
corresponding to national data for males and females in Spain covering
20 age groups, 30 periods (this dataset was created for the application
of a single-population mortality model, and it can be obtained as a
subgroup of the SpainRegions
database). These datasets are structured
as a data frame and include the following variables:
ccaa
: A vector of the 17 different regions of Spain, including

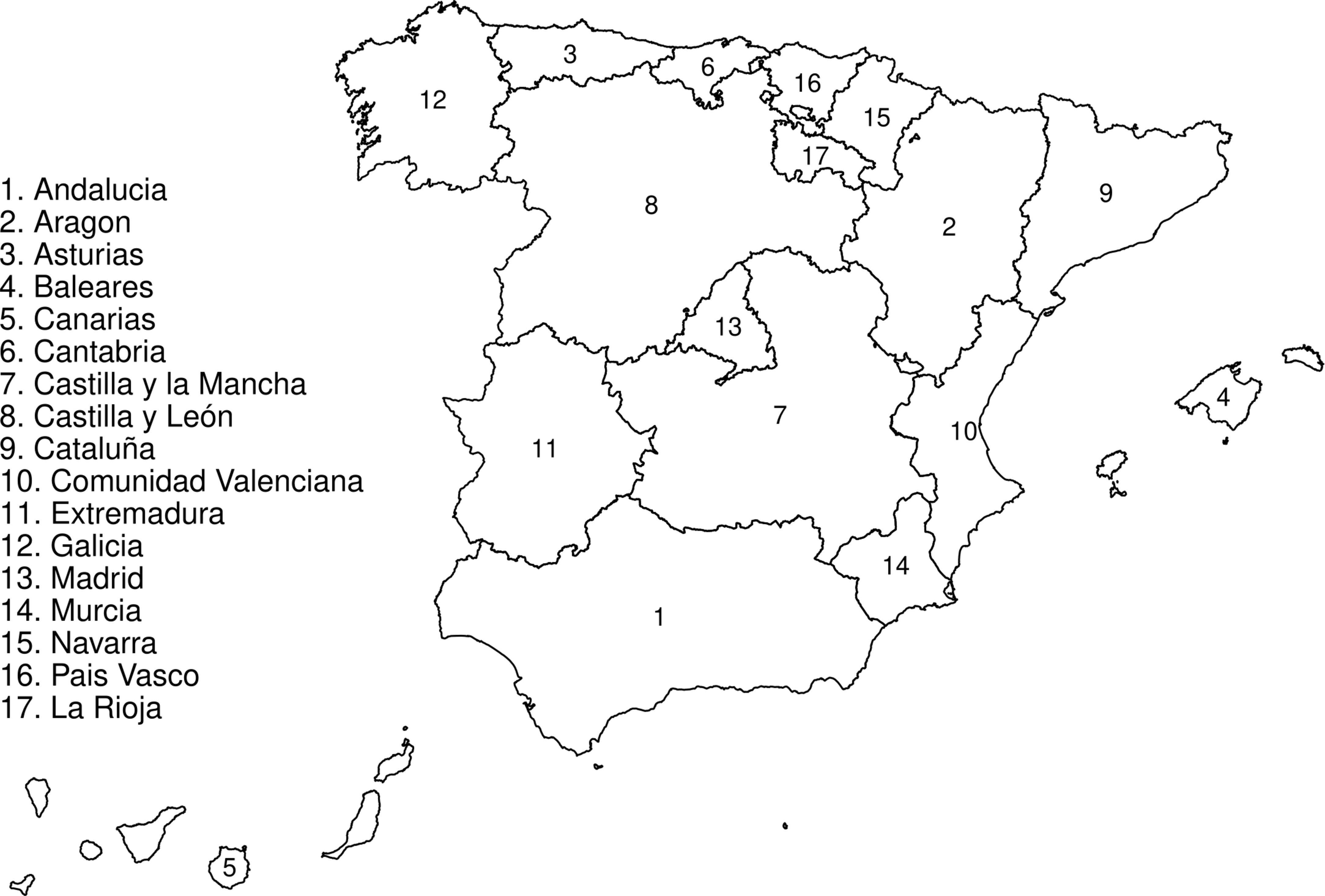

national data. Figure 4 shows the identification of each region on the
Spanish map.
years
: A vector of the period range, spanning from 1990 - 2020 for
both datasets.
ages
: A vector of the age groups (children under 1 year, between 1
year and 5 years, and then by groups of 5 years, with the last group
being between 90 and 94 years).
qx_male
: A vector of the age-specific probabilities of death for the
male population.
qx_female
: A vector of the age-specific probabilities of death for
the female population.
lx_male
: A vector of the estimated number of individual males living
in each age group during each period in a specific region/population,
based on an initial group of \(l_{0}=100,000\) individuals aged 0
(Pitacco et al. 2009).
lx_female
: A vector of the estimated number of individual females
alive in each age group during each period in a specific
region/population.
series
: The sex included in both datasets “male and female
population”.
label
: A tag indicating the dataset type, either “Spain regions” or
“Spain National population”.
Furthermore, we have included the dataset regions
, which contains the
geographical values of the Spanish regions. The SpainMap
function
facilitates the creation of a map displaying the Spanish regions along
with the variables incorporated in this dataset.
Model fitting of the age-specific probabilities of death, \(q_{x,t,i}\) (at age \(x\), period \(t\), and \(i\) region/population), under a quasi-Binomial distribution of deaths and a logit link is performed using the gnm package developed by Turner and Firth (2023).
The proposed multipopulation mortality models present challenges related to parameter identifiability. The parameter solution for the considered multipopulation mortality models \(\left(a_{x}, a_{x_{i}}, b_{x}, B_{x}, b_{x_{i}}, k_{t}, K_{t}, k_{t_{i}}, I_{i}\right)\) are not unique, as any transformation of these parameters that preserves the model structure is also a solution, highlighting inherent identifiability problems in mortality models (Enchev, Kleinow, and Cairns 2017; Villegas, Kaishev, and Millossovich 2018). This identifiability problem is addressed as follows: by setting \(k_{t_0} = 0\), \(b_0 = 1\) and \(I_1 = 1\) for the multiplicative model; by setting \(k_{t_0} = 0\), \(b_0 = 1\) and \(I_1 = 0\) for the additive model (Debón, Montes, and Martı́nez-Ruiz 2011), by setting \(B_{0}=1\), and \(K_{t_0}=0\) for the common-factor model (Carter and Lee 1992), by setting \(b_{0,1}=1\), and \(k_{t_0} = 0\) for the joint-K model (Carter and Lee 1992), and by setting \(B_{0}=1\), \(b_{0,1}=1\), \(K_{t_0}=0\), and \(k_{t_{0,1}}=0\) for the augmented-common-factor model (N. Li and Lee 2005).
The fitLCmulti()
facilitates the fitting of multipopulation mortality
models, including the multiplicative model (Russolillo, Giordano, and
Haberman 2011), additive model (Debón, Montes, and Martı́nez-Ruiz 2011),
common-factor model (CFM) (Carter and Lee 1992), joint-K model (Carter
and Lee 1992) and augmented common-factor model (ACFM) (N. Li and Lee
2005). It also supports fitting a single version of the Lee-Carter model
(Lee and Carter 1992) in the
CvmortalityMult
R package. The synopsis of this function is outlined below:
fitLCmulti(model, qxt, periods, ages, nPop, lxt = NULL)
The fitting function requires the following information as input:
The model
refers to the multipopulation mortality model chosen to
fit the mortality rates. The available options include
c(’additive’, ’multiplicative’, ’CFM’, ’joint-K’, ’ACFM’)
. Users
must select one model to fit.
qxt
is a vector or matrix containing the crude age-specific
probabilities of death for every age, period, and region. The function
automatically identifies the data structure (vector or matrix) that
users provide.
lxt
is a vector or matrix with the estimated number of individual
males alive in each age group during each period in a specific region.
The function automatically identifies the data structure (vector or
matrix) that users provide. If this argument is not included (NULL
),
the function internally estimates this value to obtain the parameters
for fitting the multipopulation mortality model.
The periods
, and ages
vectors reflect the period range and age
range, respectively, from the dataset.
nPop
is a numeric value that indicates the number of
populations/regions considered in the dataset.
Importantly, for the effective utilization of the fitting functions, the
array or matrix containing the qxt
and lxt
(if it is included)
should be organized chronologically with the primary or general
population placed first. This fact is essential for the ACFM, which
needs to fit first the mortality of the whole group. In the dataset
labelled SpainRegions
, the principal population pertains to the
mortality data encompassing the entire nation of Spain and is positioned
as the first entry in the dataset.
We demonstrate the application of this function by fitting the additive
and multiplicative multipopulation mortality models to the
SpainRegions
dataset for both male and female cases. However, the
other multipopulation mortality models can be applied only by modifying
the model
input. Indeed, in the explanation of the function
fitLCmulti()
in the
CvmortalityMult
R package, users can find examples of how other multipopulation
mortality models (common-factor, joint-k and augmented common-factor)
are fitted and forecasted for male Spain regions. Additionally, we
generate a vector containing the lower age in each age group considered
in the paper.
> SpainRegions
Mortality Datafor males and females
Spain Regions 1991 : 2020
Years 0 : 90
Abridged Ages > ages <- c(0, 1, 5, 10, 15, 20, 25, 30, 35, 40,
+ 45, 50, 55, 60, 65, 70, 75, 80, 85, 90)
In fact, multiplicative and additive multipopulation mortality models can be fitted using the following code:
> additive_Spainmales <- fitLCmulti(model= 'additive', qxt = SpainRegions$qx_male,
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_male)
> additive_Spainfemales <- fitLCmulti(model= 'additive', qxt = SpainRegions$qx_female,
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_female)
> multi_Spainmales <- fitLCmulti(model= 'multiplicative', qxt = SpainRegions$qx_male,
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_male)
> multi_Spainfemales <- fitLCmulti(model = 'multiplicative', qxt = SpainRegions$qx_female,
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_female)
The output from the fitting functions is an object of the class
fitLCmulti
, which provides a brief summary of the fitting process,
including among other things, the following information:
ax
, bx
, kt
, and Ii
are the estimated parameters for the
multipopulation mortality models.
formula
, and model
refer to the gnm formula and the fitted
multipopulation mortality model, respectively.
data.used
includes mortality rates to fit the mortality data.
qxt.crude
refers to the crude values of the probabilities of death
for every age, period, and region. These values are provided by the
user for fitting the selected mortality model.
qxt.fitted
, and logit.qxt.fitted
are the fitted values of the
probabilities of death for every age, period, and region using the
multipopulation mortality model on a probability or logit scale
\(\left(\frac{q_{x,t}}{1-q_{x,t}} \right)\).
Once we have adjusted the crude age-specific probabilities of death for
different groups of ages, periods, and regions, the plot.fitLCmulti()
function allows us to show the parameters obtained.

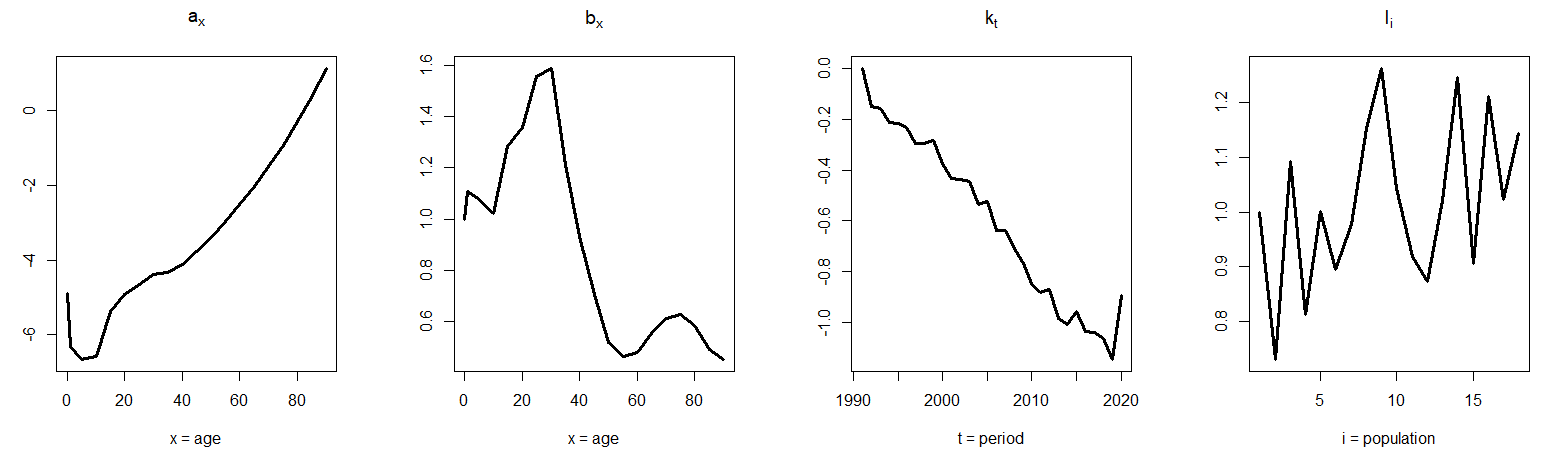

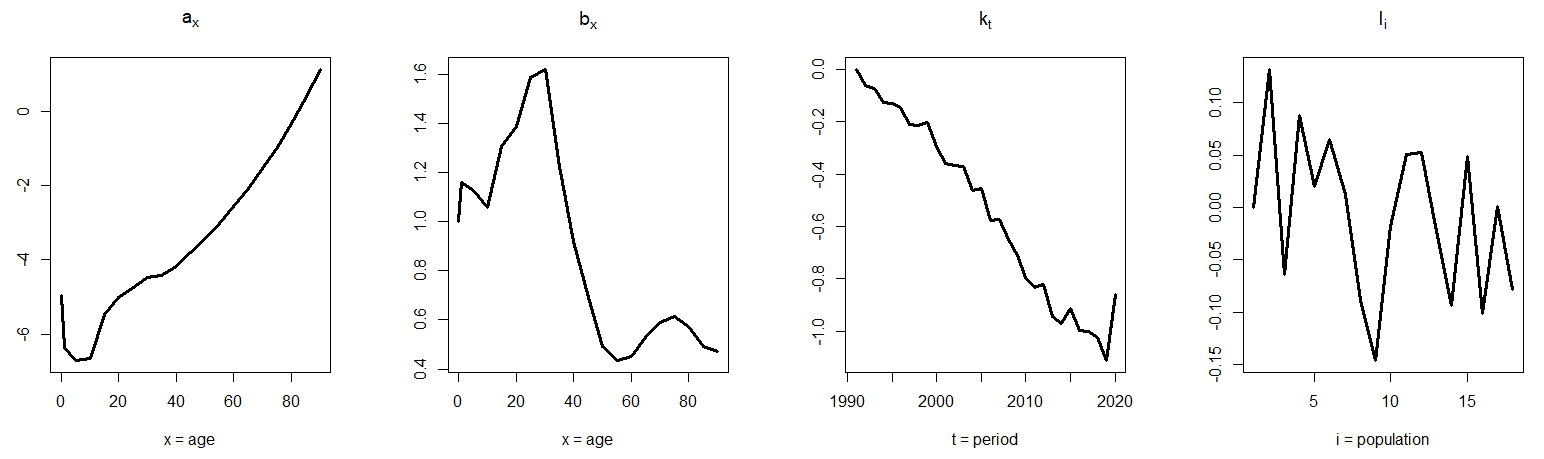

Figures 5 and 6 provide the fitted parameters of the additive
and multiplicative multipopulation mortality models, respectively, for
male populations in Spain. The plots are generated using the following
code:
> plot(additive_Spainmales)
> plot(multiplicative_Spainmales)
Notably, the plot.fitLCmulti()
function generates different plots
depending on the selected model. For example, if the augmented
common-factor model is chosen by setting model = ’ACFM’
, the plot
function will display the estimated parameters, \(a_{x_i}\), \(B_x\), \(K_t\),
\(b_{x_i}\), and \(k_{t_i}\), for the provided populations.

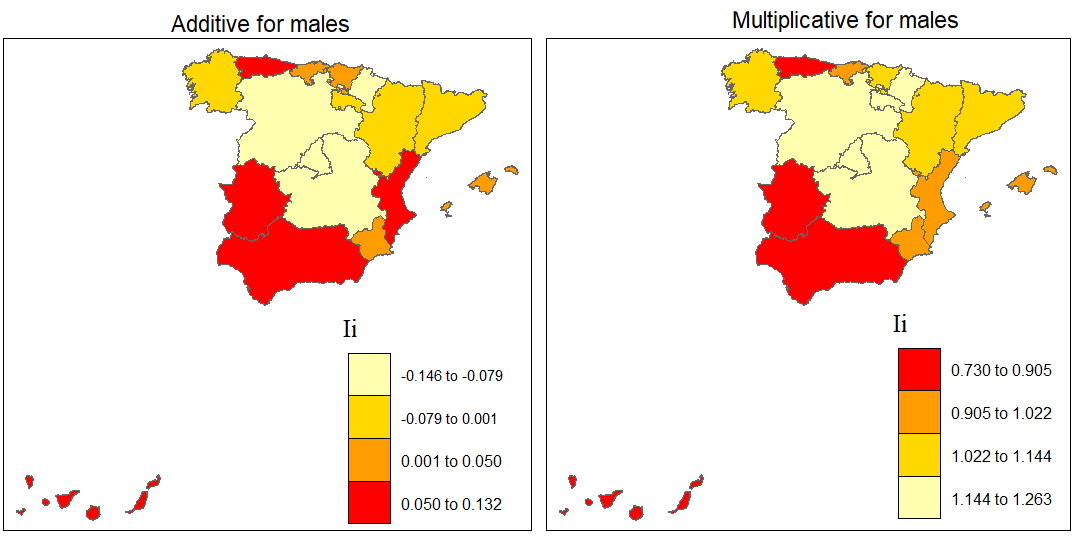

Our example is the dataset of Spanish regions. We have included the
SpainMap
function in the package. This function facilitates the
plotting of the \(I_i\) parameters of the regions of Spain in
Figure 7. We
recommend reviewing the regions
dataset to identify the order of the
regions before using the SpainMap
function. In the context of
multipopulation mortality models, the multiplicative and additive
indices for the regions of Spain (with the reminder that the first
population is the national dataset and will not be shown) can be
obtained with the following code:
> SpainMap(multiplicative_Spainmales$Ii[2:18],
+ main = c("Multiplicative for males"),
+ name = c("Ii"))
> SpainMap(regionvalue = additive_Spainmales$Ii[2:18],
+ main = c("Additive for males"),
+ name = c("Ii"), bigred = FALSE)
Additionally, the fitting function applies to a single population. Specifically, we design this function to fit cases where mortality data are provided for only one population, and the Lee-Carter mortality model for a single population is fitted. Users can implement this by using the following R code:
> LC_SpainNatmales <- fitLCmulti(model = 'additive', qxt = SpainNat$qx_male,
+ periods = c(1991:2020), ages = c(ages), nPop = 1, lxt = SpainNat$lx_male)
> LC_SpainNatfemales <- fitLCmulti(model = 'multiplicative', qxt = SpainNat$qx_female,
+ periods = c(1991:2020), ages = c(ages), nPop = 1, lxt = SpainNat$lx_female)
We use two of the five multipopulation models to demonstrate the
operation of the function for one-single population independently of the
model provided. However, there is no need to specify this argument in
the fitLCmulti
function, as it inherently fits the Lee-Carter version
for a single population.
Similarly, the parameters of the Lee-Carter model for single-population
mortality can be plotted using the plot.fitLCmulti()
function.

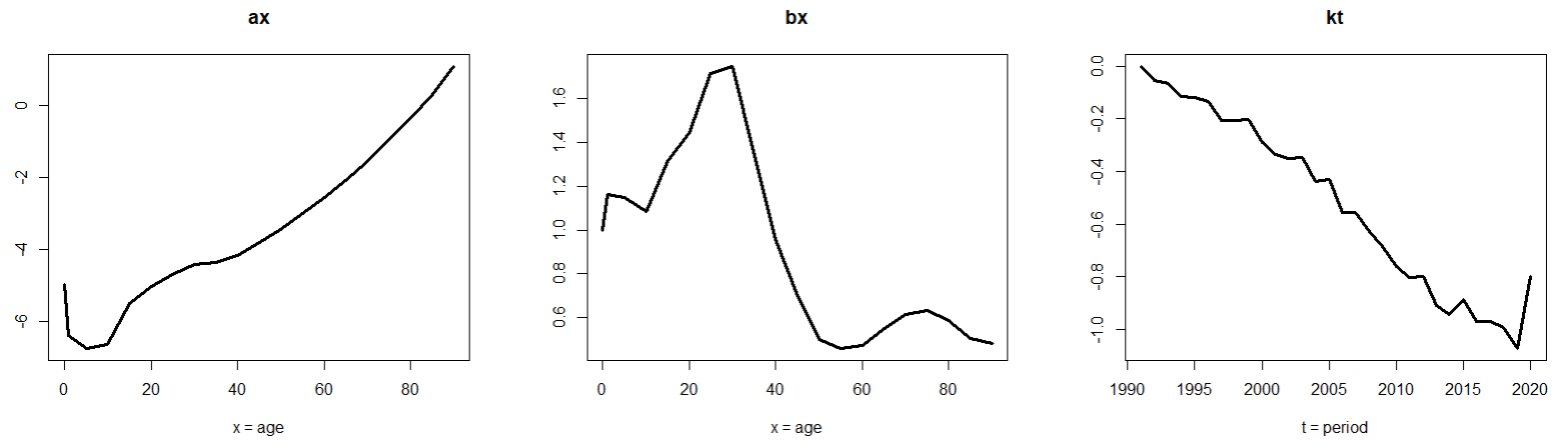

Therefore, Figure 8 can be obtained using the following code:
plot(LC_SpainNatmales)
From Figures 5-8, several interesting results emerge:
All the left panels, \(a_x\), correspond to the average behaviour of age-specific probabilities of death across all studied periods and regions.
The second panels, \(b_x\), demonstrate how age-specific probabilities of death for each age group (considering all regions) respond to changes in mortality trend, as captured by \(k_t\). Large values of \(b_x\) are observed among Spanish males between 20 and 40 years of age; therefore, there is a substantial reduction in the age-specific probabilities of death in this age group (1991 - 2020). This phenomenon is attributed to the impact of AIDS and drugs on Spanish males during the 1980s and 1990s, which led to an initial increase in age-specific probabilities of death and total deaths in these age groups, followed by a significant decline in age-specific probabilities of death due to the introduction of new therapies and medications during the 1990s and 2000s (Felipe, Guillén, and Perez-Marin 2002; Debón et al. 2008; Atance, Balbás, and Navarro 2020), as can be observed in \(b_{x}\) for the additive and multiplicative models.
The third panels reveal the impact of the COVID-19 pandemic on the trend parameter \(k_t\) for all considered models among males in Spain. Similar trends can be observed for females, although these trends are not shown. However, they can be generated by modifying the fitting object in the plot function. The incorporation of 2020 into the model fitting process induces an upturn in age-specific probabilities of death in the final observed period, disrupting the declining trend observed in the preceding years (1990 - 2019).
Finally, the right panels, \(I_i\), in the multipopulation approach depict the geographical distribution of the indices corresponding to each region. These panels allow us to discern distinct regional behaviours on the basis of the chosen multipopulation approach. To complement this presentation, we have included Figure 7, which displays the values of \(I_i\) for Spanish males in each region using the additive and multiplicative models with the regions with the highest mortality highlighted in red. Notably, the parameter \(I_i\) leads to a different interpretation in each model. In the multiplicative model, higher values indicate lower age-specific probabilities of death as the region value is multiplied by the trend parameter. Therefore, with a decreasing trend parameter, as observed in the case of Spain, higher values of \(I_i\) correspond to lower age-specific probabilities of death. Conversely, the additive model incorporates the region index to the general trend among the regions (\(a_x + b_x \cdot k_t\)). Consequently, lower values or the most negative index regions present lower age-specific probabilities of death.
The
CvmortalityMult
R package enables the projection of future age-specific probabilities
of death using the ARIMA (p,d,q) processes. This projection applies to
the trend parameters, \(k_t\), \(K_t\), and \(k_{t,i}\) in multipopulation
mortality models. Two common assumptions for the trend parameters \(k_t\),
\(K_t\), and \(k_{t,i}\) in the actuarial and demography literature are
often considered: first, a multivariate random walk with drift
(ARIMA(0,1,0)) (A. Cairns, Blake, and Dowd 2006; A. J. Cairns et al.
2009; Haberman and Renshaw 2011; Villegas et al. 2017), and second, the
selection of the best ARIMA (p,d,q) process (Renshaw and Haberman 2006;
Debón, Montes, and Puig 2008; Villegas et al. 2017; Atance, Balbás, and
Navarro 2020) for estimating the future values of \(k_t\), \(K_t\), and
\(k_{t_i}\). To estimate the future values of the trend parameters \(k_t\),
\(K_t\), and \(k_{t_i}\), we employ the forecast
function from the
forecast R package (Hyndman and Khandakar 2008), allowing the
projection of the future values for various types of ARIMA processes
considered in our package. In the
CvmortalityMult
R package, users can choose different ARIMA processes,
ktmethod=c(’arima010’,’arimapdq’, ’arimauser’)
. The selection process
is applied for single or all trend parameters considered in each
multipopulation or single-population mortality model. The ellipsis
argument (...
) provides users with the flexibility to include
different ARIMA configurations, changing the arguments in the
auto.arima
or Arima
functions, depending on the ktmethod
provided.
This functionality mirrors the behavior of the forecast R package
for time series (Hyndman and Khandakar 2008). Additionally, users must
provide nahead
, indicating the number of periods to forecast the
future value of age-specific probabilities of death for each considered
region. For example, the code below provides future age-specific
probabilities of death for Spanish male and female regions for the next
ten years (nahead = 10
), using different ARIMA options in the package:
> fut_additive_Spainmales <- forecast(object = additive_Spainmales,
+ nahead = 10, ktmethod = 'arimapdq')
> fut_multiplicative_Spainmales <- forecast(object = multiplicative_Spainmales,
+ nahead = 10, ktmethod = 'arima010')
> fut_additive_Spainfemales <- forecast(object = additive_Spainfemales,
+ nahead = 10, ktmethod = 'arimapdq')
> fut_multiplicative_Spainfemales <- forecast(object = multiplicative_Spainfemales,
+ nahead = 10, ktmethod = 'arima010')
The outputs from these forecast functions are objects of the class
forLCmulti
, which provides a brief summary of the forecasting process,
with the following information:
ax
, bx
, kt
, and Ii
provide the estimated parameters for the
multipopulation mortality models.
arimakt
provides the ARIMA (p,d,q) process considered to adjust the
time series \(k_t\), \(K_t\), or \(k_{t_i}\) and the obtained coefficients.
kt.fut
provides the future values of \(k_t\), \(K_t\), or \(k_{t,i}\)
using the selected ARIMA (p,d,q) configurations for the nahead
periods.
kt.futintervals
provides estimates of the future values of \(k_t\),
\(K_t\), or \(k_{t,i}\) for the point forecast (kt.fut
). Additionally,
it includes the lower and upper 80% and 95% confidence intervals,
utilizing the chosen ARIMA (p,d,q) process for the specified nahead
periods.
formula
and model
define the gnm
formula and the forecasted
multipopulation mortality model, respectively.
qxt.crude
represents the crude values of the probabilities of death
for every age, period, and region. These values are provided by the
user for fitting the selected mortality models.
qxt.future
, and logit.qxt.future
represent the future values of
the probabilities of death for every, age, period and region using the
chosen multipopulation mortality model in the probability or logit
scale.
Once we have projected the age-specific probabilities of death from
different ages, periods, and regions, the plot.forLCmulti()
function
allows us to show the projected values of trend parameters \(k_t\), \(K_t\),
and \(k_{t_i}\). The logit death probabilities for the mean in-sample age
and the out-of-sample forecast are shown for all the populations
considered. Figures 9 and 10 provide these interesting results for the
additive and multiplicative multipopulation mortality models,
respectively, for males in Spain. The visualizations are generated with
the following code:
> plot(fut_additive_Spainmales)
> plot(fut_multiplicative_Spainmales)
Similarly, during the forecasting process, users can employ the same function to project future values of age-specific probabilities of death when providing data for a single population. Specifically, the function forecasts age-specific probabilities of death using the Lee-Carter model for a single population, as demonstrated below:
> fut_LC_Spainmales <- forecast(object = LC_SpainNatmales,
+ nahead = 10, ktmethod = 'arimapdq')
> fut_LC_Spainfemales <- forecast(object = LC_SpainNatfemales,
+ nahead = 10, ktmethod = 'arima010')
Equally, for the single-population mortality model, users can plot two remarkable results. For example, Figure 11 can be obtained using the following code:
> plot(fut_LC_Spainmales)
In this section, we present the CV function developed in the CvmortalityMult R package to evaluate the forecasting ability of multipopulation mortality models with different CV methods. Thus, the CV time series function uses the next synopsis:
multipopulation_cv(qxt, model = c('multiplicative', 'additive', 'CFM', 'joint-K', 'ACFM'),
+ periods, ages, nPop, lxt = NULL,
+ nahead, trainset1, fixed_train_origin = TRUE,
+ ktmethod = c('arimapdq', 'arima010', 'arimauser'), order = NULL,
+ measures = c('SSE', 'MSE', 'MAE', 'MAPE', 'All'))
This CV function requires the following information as input:
qxt
, lxt
, periods
, ages
, nPop
, ktmethod
and order
should
match the corresponding values used as in the fitting and forecasting
functions for the multipopulation and single mortality models as
inputs.
model = c(’multiplicative’, ’additive’, ’CFM’, ’joint-K’, ’ACFM’)
specifies the multipopulation mortality model that users wish to
assess for forecasting ability using the specific resampling
technique. Users can apply the multiplicative, additive,
common-factor, joint-K, and augmented common-factor multipopulation
models and the single version of the Lee-Carter model presented in
this paper separately.
measures = c(’SSE’, ’MSE’, ’MAE’, ’MAPE’, ’All’)
denotes the
adjustment measure that users wish to employ for testing the
forecasting ability of the model using the specific resampling
technique. If measures = c(’All’)
, all the measures will be provided
by the function. Additionally, each accuracy measure has a dedicated
help function to clarify the underlying equations. Users can access
this help function in the
CvmortalityMult
R package using the following code: ?MeasureAccuracy
, where users
can select the specific measure of accuracy for testing the
age-specific mortality rates (SSE, MSE, MAE or MAPE).
trainset1
specifies the number of chronological periods to consider
as the initial training set. This value must be greater than 2 to meet
the minimum time series size (Hyndman and Khandakar 2008).
Additionally, we recommend that this value be greater than nahead
to
maintain consistency among the forecasts in every iteration (Tashman
2000).
nahead
is the number of periods to project ahead in each iteration
and the size of each test set among the selected CV techniques.
Moreover, it should be noted that the multipopulation_cv()
function
aims to maintain a uniform length for all the testing sets
(iterations). However, the last test set may have fewer periods to
align with the total number of periods provided by the user as
(periods
).
fixed_train_origin = c(TRUE, FALSE, ’add_remove1’)
is a logical
variable that specifies whether the starting point of the initial
training set remains fixed throughout the CV process. This option
allows users to maintain a constant starting point where the model
will be fitted in every iteration or allow it to shift, thereby
determining whether a rolling window evaluation is applied. By
default, the package sets fixed_train_origin = TRUE
, meaning that
the first period in the training set remains fixed across all
iterations and the model recalibrations of the CV method. However,
users can opt to allow the training set starting point to shift by
setting fixed_train_origin = FALSE
or
fixed_train_origin = ’add_remove1’
, thereby implementing a
rolling-window evaluation while keeping the training set size constant
in each iteration, defined by the user by nahead
argument. When
fixed_train_origin = FALSE
, in every iteration, the user-defined
nahead
periods are removed from the beginning of the training set,
while the next nahead
periods are added to the training set from the
previous test set. Consequently, the number of projected periods
(nahead
) also determines how many periods are added or deleted in
every iteration. In contrast, when
fixed_train_origin = ’add_remove1’
, the training set size is also
fixed across iterations. However, only one new period is added and one
period is removed in each forecast. This process allows users to
evaluate the forecasting accuracy of nahead
-step-ahead projections
using more test samples. Users may specify
fixed_train_origin = ’add_remove1’
, and any value of nahead
greater than or equal to one, provided it is consistent with the
number of periods available in the dataset. Notably, when
nahead = 1
, the configuration fixed_train_origin = ’add_remove1’
yields results equivalent to those obtained using
fixed_train_origin = FALSE
, which means in a LOOCV method keeping
the same size of the training set (trainset1
) across iterations.
The sizes of nahead
and trainset1
can be determined by the temporal
correlation within the values of the analysed series by using “blocks”
of data rather than choosing data randomly (Racine 2000; Bergmeir and
Benı́tez 2012).
With this function, the user can apply different CV methods for
multipopulation models depending on three main inputs that must be
provided: nahead
, trainset1
, and fixed_train_origin
. Indeed, the
following CV techniques can be applied:
Fixed-origin evaluation is implemented by setting the arguments
so that nahead
+ trainset1
= periods
while keeping the default
value of fixed_train_origin = TRUE
.
RO-recalibration evaluation requires that trainset1
> 2 and
that fixed_train_origin = TRUE
remain at its default value,
regardless of the value assigned to nahead
. Specifically, when
nahead = 1
, leave-one-out CV (LOOCV) is applied. When
nahead = trainset1
, k-fold CV (CV) is performed. For all other
values, a standard time series CV approach is used while keeping the
origin of the first training set fixed in all possible options.
Rolling-window evaluation requires setting
fixed_train_origin = FALSE
or
fixed_train_origin = ’add_remove1’
, independently of the values
assigned to nahead
and trainset1
. As in the previous CV
technique, if nahead = 1
, a LOOCV approach with a rolling window
of 1 is applied, which remains equivalent whether
fixed_train_origin
is set to FALSE
or ’add_remove1’
. When
nahead > 1
and fixed_train_origin = FALSE
, the training set is
updated by incorporating and discarding nahead
periods in each
iteration. Conversely, when fixed_train_origin = ’add_remove1’
,
the training set updates by adding and removing only one observation
per iteration while forecasting nahead
periods.
We present the results for RO-recalibration using the standard CV
approach for male Spanish regions. The main input parameters are set as
follows: trainset1 = 8
, nahead = 5
and fixed_train_origin = TRUE
(default value). This procedure is applied to the five multipopulation
mortality models included in the package. To replicate these results,
the user can use the following code:
> SpainRegions
> ages <- c(0, 1, 5, 10, 15, 20, 25, 30, 35, 40,
+ 45, 50, 55, 60, 65, 70, 75, 80, 85, 90)
> cv_SM_multi <- multipopulation_cv(qxt = SpainRegions$qx_male,
+ model = c('multiplicative'), #see options below
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_male,
+ trainset1 = 8, nahead = 5, ktmethod = c('arimapdq'), measures = c("MSE"))
While we executed to female Spanish regions an RO-recalibration was
performed using trainset1 = 10
, nahead = 1
and
fixed_train_origin = TRUE
(default value). This configuration
corresponds to a LOOCV approach, which fixes the origin in the first
training, using the following code:
> loocv_SF_multi <- multipopulation_cv(qxt = SpainRegions$qx_female,
+ model = c('multiplicative'), #see options below
+ periods = c(1991:2020), ages = c(ages), nPop = 18, lxt = SpainRegions$lx_female,
+ trainset1 = 10, nahead = 1, ktmethod = c('arimapdq'), measures = c("MSE"))
Available values for
model = ’additive’, ’multiplicative’, ’CFM’, ’joint-K’
, and ’ACFM’
.
Changing the string assigned to model
is sufficient to switch to the
corresponding specification. The output from the CV function is an
object of the MultiCv
class, which provides a brief summary of the CV
method employed, including the following information:
ax
, bx
, Ii
, kt.fitted
, kt.future
, and kt.arima
correspond
to the same outputs as those in the adjustment and forecast functions.
However, since the adjustment process has been repeated several times
(depending on the process), each of these outputs is a list of the
iterations executed, denoted as follows:
loop-h from period-1 to period-2
, where “h” denotes the
corresponding iteration.
meas_ages
, meas_periodsfut
, meas_pop
, and meas_total
represent
the accuracy measures provided by the resampling technique, each
emphasizing different aspects of the forecasting ability. Indeed, the
objective of the
CvmortalityMult
R package is to provide a tool for evaluating the forecasting
accuracy of multipopulation models from various ages, namely, across
different age groups, future periods, regions considered, or a global
measure spanning all ages, future periods, and regions considered.
This function allows users the flexibility to choose the specific
viewpoint they wish to prioritize in the decision-making process
regarding forecasting capabilities.
model
, and CV_method
designate the multipopulation mortality model
and the CV-method that users wish to apply for testing the forecasting
ability, respectively. Users can apply both, the multiplicative and
additive models presented in this paper separately.

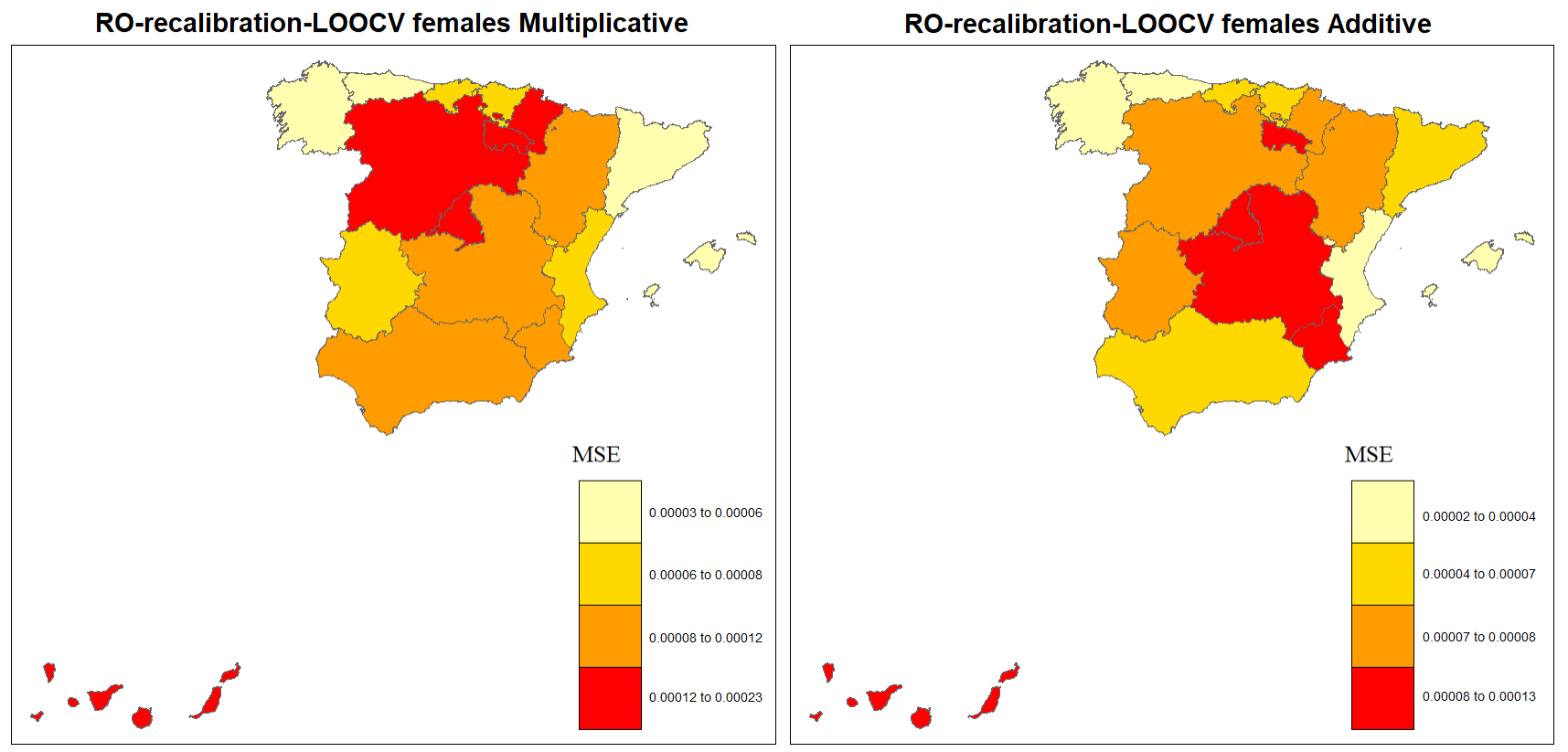

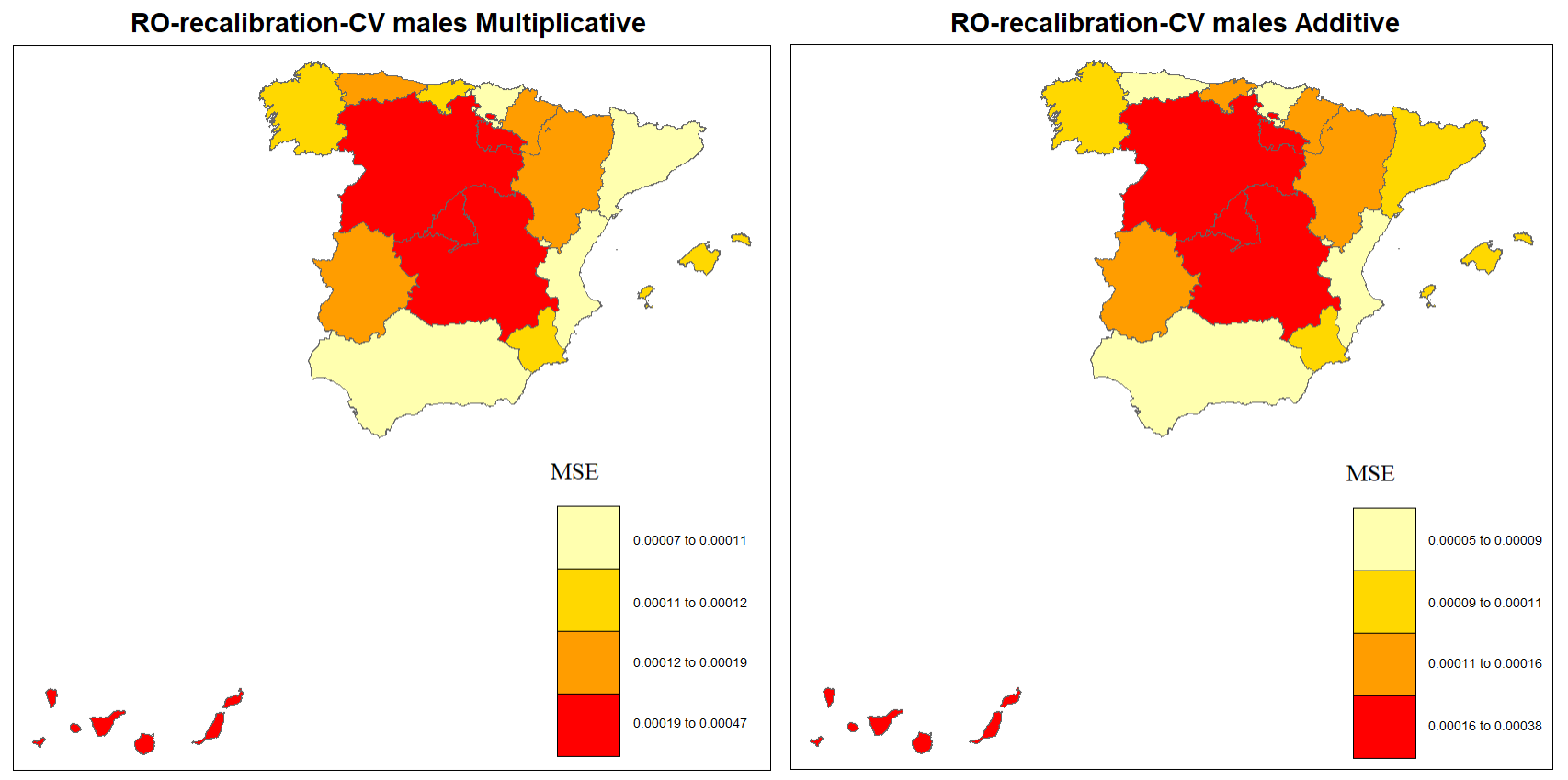

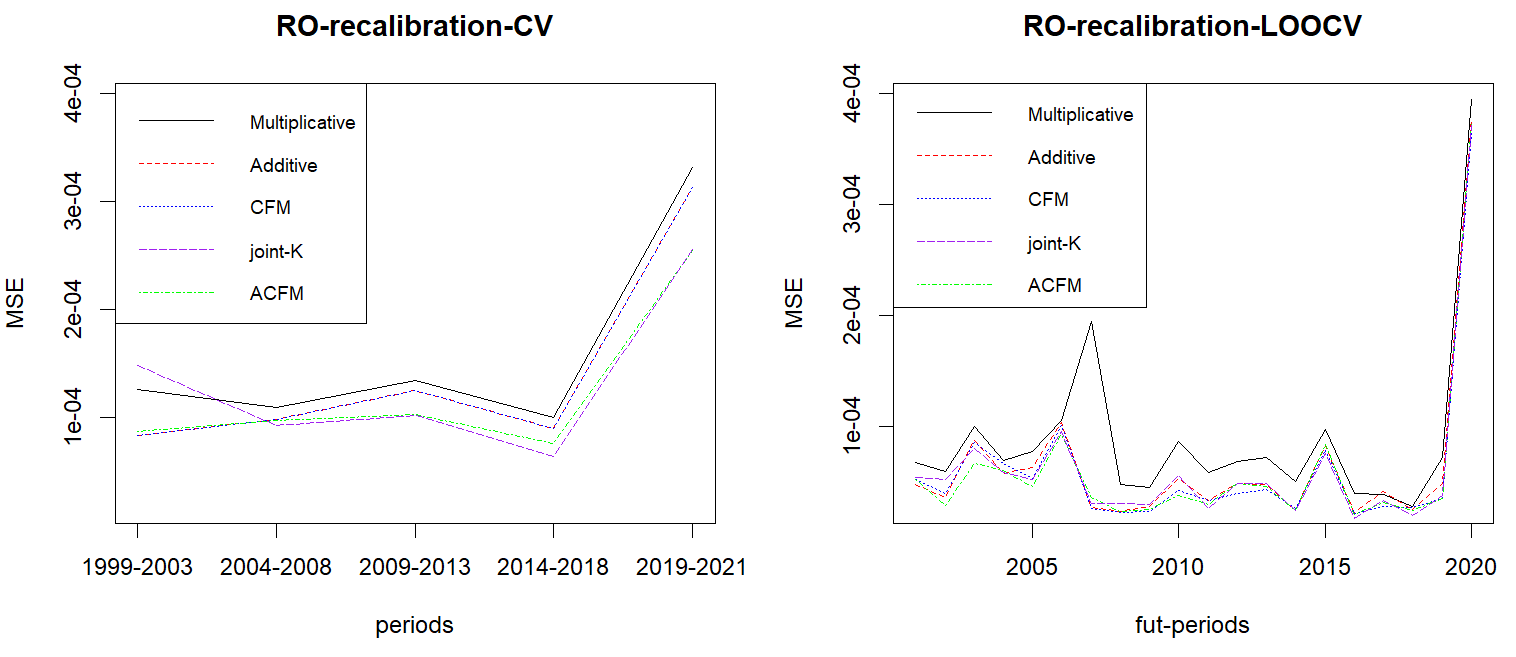

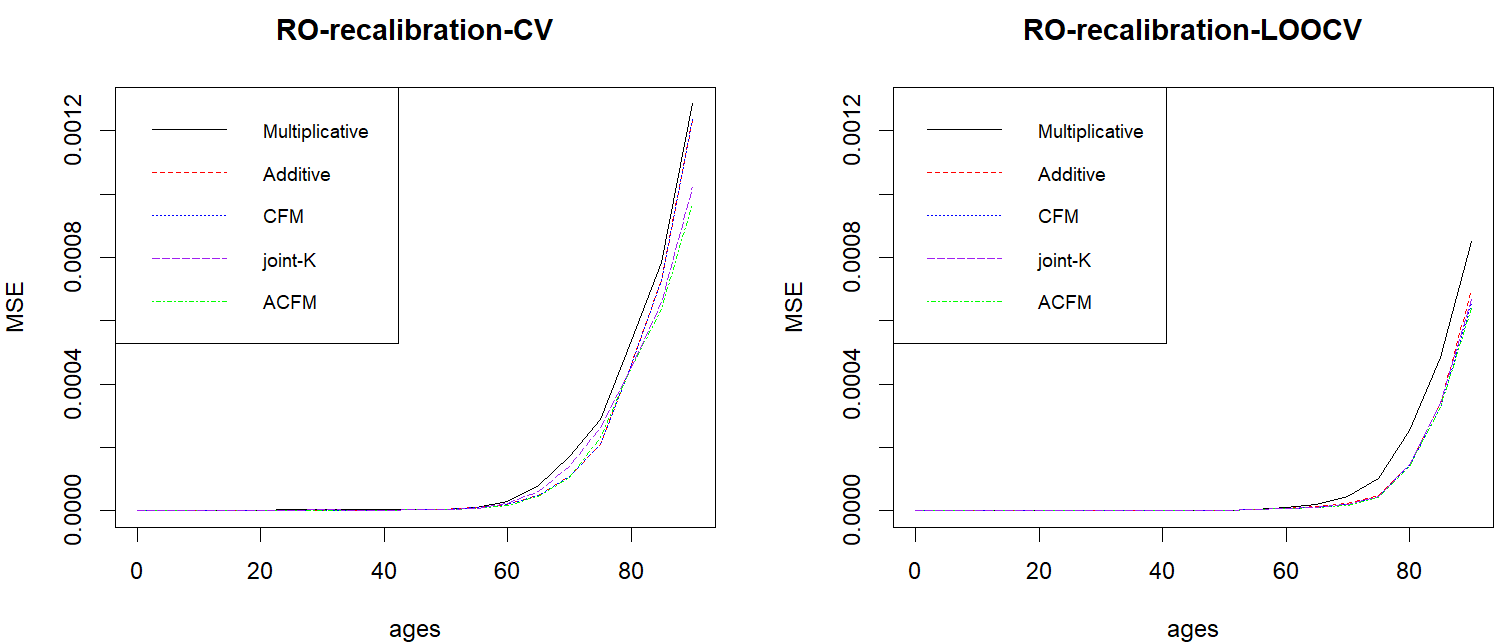

Figures 12-13 present the results of the CV techniques for the
five multipopulation mortality models applied across ages, periods and
regions, respectively. Additionally, we have included Figures
14 and
15 with the
MSE measure throughout different regions of Spain only for the
multiplicative and additive multipopulation mortality models. The result
of the other models are available upon request to the authors and can be
found in the reproduction file. These plots can be reproduced using the
R script entitled CvmortalityMult_reproduction.R
. From
Figures 13-15, we note the following points:
The ACFM and joint-K models present lower forecasting results when the MSE measure is used across the ages and future periods considered, using both CV time series techniques.
The five considered models yield similar results for the age range 0 - 60, whereas for the last section of the mortality curve (60 - 90), the ACFM and joint-K model perform better in terms of the forecasting results.
Concerning the forecasting periods, the ACFM and joint-K models demonstrate better forecasting results in the medium term, as captured by RO-recalibration CV. However, while the five models exhibit comparable results when evaluating short-term forecasting ability, RO-recalibration LOOCV with the multiplicative model yields the worst result.
The MSE measures for the different regions of Spain considered for each CV method are shown in Figures 14 and 15. The multipopulation mortality model produces different results depending on the region. Specifically, the multiplicative model yields the best forecasting results for Galicia, Pais Vasco, Cataluña, and Comunidad Valencia. In contrast, depending on the CV model and population considered, the additive model produces superior outcomes for Galicia, Asturias, Pais Vasco, Cataluña, Comunidad Valencia, and Andalucia.
Notably, the CV function allows the computation of global measures of forecasting ability considering all ages, future periods, and regions, as shown in Table 2. The results indicate that the ACFM and joint-K model for standard CV, whereas the CFM and ACFM for LOOCV demonstrate better forecasting ability when all available forecasting information is used. This finding is consistent with the observations mentioned above.
Therefore, the
CvmortalityMult
R package displays the forecasting ability of the multipopulation
mortality models in various ways, allowing the user to determine the
most suitable model for their specific objectives. We present two
alternatives to assess the forecasting ability of the models but there
are other additional CV time series techniques that can be implemented
with the multipopulation_cv()
function modifying nahead
, trainset1
and fixed_train_origin
.
CV method | Multipopulation mortality model | ||||
---|---|---|---|---|---|
Common CV males | Multiplicative | Additive | CFM | joint-K | ACFM |
MSE | 0.000160 | 0.000142 | 0.000142 | 0.000132 | 0.000124 |
LOOCV females | Multiplicative | Additive | CFM | joint-K | ACFM |
MSE | 0.000089 | 0.000066 | 0.000061 | 0.000062 | 0.000059 |
multipopulation mortality models.
multipopulation mortality models.
multipopulation mortality models.
Accurately forecasting age-specific probabilities of death is essential for dealing with life-contingent risk, ensuring solvency within the European (re)insurance industry, and addressing the sustainability of public pension system plans, among other purposes. Multipopulation mortality models offer a valuable approach to forecasting age-specific probabilities of death. These models allow the incorporation of data from regions in the same country or group of countries with similar characteristics, transcending borders in a globalized context, where national and international movements occur daily. Moreover, these models are recommended to enrich mortality data with observations from different regions in the same country or group of countries sharing similar characteristics. The CvmortalityMult R package facilitates access to five of these multipopulation mortality models, providing an R interface to the functions necessary for model fitting and forecasting simply.
Furthermore, comparing various models can be challenging when the most suitable model is selected. Indeed, CV methods offer a valuable tool for evaluating the forecasting ability of models. The CvmortalityMult R package allows the application of several CV time series techniques, for assessing the forecasting ability of multiple populations over short, medium and long term horizon. To the best of our knowledge, the CvmortalityMult R package is the first to apply these methods to multipopulation mortality models, especially for three-way array data. Users only need to provide multipopulation mortality data, specify the number of periods to be used as the training or testing set, and decide whether it remains fixed at the origin of the first training set. Then, the CvmortalityMult R package computes various measures highlighting different forecasting ability aspects. Consequently, users can prioritize selecting the most appropriate multipopulation mortality model on the basis of their specific requirements and perspectives.
The authors express their gratitude to the anonymous referees for their
thorough review and valuable feedback on the manuscript. Appreciation is
also extended to Christoph Bergmeir for clarifying doubts related to
cross-validation terminology in time series, which has influenced the
final version of the manuscript.
A. Debón’s work was partially supported by grants PID2023-152106OB-I00
and CIAICO/2023/272, funded by MCIN/AEI/10.13039/501100011033 and the
Generalitat Valenciana, respectively.
D. Atance acknowledges the support of Generalitat Valenciana through
projects CIGE/2023/7 (Conselleria de Educación, Universidades y Empleo).
Supplementary materials are available in addition to this article. It can be downloaded at RJ-2025-018.zip
This article is converted from a Legacy LaTeX article using the texor package. The pdf version is the official version. To report a problem with the html, refer to CONTRIBUTE on the R Journal homepage.
Text and figures are licensed under Creative Commons Attribution CC BY 4.0. The figures that have been reused from other sources don't fall under this license and can be recognized by a note in their caption: "Figure from ...".
For attribution, please cite this work as
Atance & Debón, "CvmortalityMult: Cross-Validation for Multi-Population Mortality Models", The R Journal, 2025
BibTeX citation
@article{RJ-2025-018, author = {Atance, David and Debón, Ana}, title = {CvmortalityMult: Cross-Validation for Multi-Population Mortality Models}, journal = {The R Journal}, year = {2025}, note = {https://doi.org/10.32614/RJ-2025-018}, doi = {10.32614/RJ-2025-018}, volume = {17}, issue = {2}, issn = {2073-4859}, pages = {231-257} }
