1 Introduction
There is a resurgence of interest in interpretable machine learning models, with rule learning providing an appealing combination of intrinsic comprehensibility, as humans are naturally used to working with rules, with well-documented predictive performance and scalability. Association rule classification (ARC) is a subclass of rule-learning algorithms that can quickly generate a large number of candidate rules, a subset of which is subsequently chosen for the final classifier. The first, and with at least three packages (Hahsler et al. 2019), the most popular such algorithm was Classification Based on Associations (CBA) (Liu et al. 1998). There are also multiple newer approaches, such as SBRL (Yang et al. 2017) or RCAR (Azmi and Berrado 2020), both available in R (Michael Hahsler 2024; Yang et al. 2024).
A major limitation of ARC approaches is that they typically trade off the ability to process numerical data for the speed of generation. On the input, these approaches require categorical data. If there are numerical attributes, these need to be converted to categories, typically through some discretization (quantization) approach, such as MDLP (Fayyad and Irani 1993). Association rule learning then operates on prediscretized datasets, which results in the loss of predictive performance and larger rule sets.
The Quantitative Classification Based on Associations method (QCBA) (Kliegr and Izquierdo 2023) is a collection of several algorithms that postoptimize rule-based classifiers learnt on prediscretized data with respect to the original raw dataset with numerical attributes. As was experimentally shown in Kliegr and Izquierdo (2023), this makes the models often more accurate and consistently smaller and thus more interpretable.
This paper presents the qCBA R package, which implements QCBA and is available on CRAN. The qCBA R package was initially developed to postprocess results of CBA implementations, as these were the most common rule learning systems in R, but it can now also handle results of other rule learning approaches such as SBRL. The three CBA implementations in CRAN – rCBA (Kuchař and Kliegr 2019), arc (Kliegr 2016) and arulesCBA (Michael Hahsler 2024) introduced in Hahsler et al. (2019) rely on the fast and proven arules package (Hahsler et al. 2011) to mine association rules, which is also the main dependency of the qCBA R package.
2 Primer on building rule-based classifiers for QCBA in R
This primer will show how to use QCBA with CBA as the base rule learner. Out of the rule learners supported by QCBA, CBA is the most widely supported in CRAN and also scientifically most cited (as of writing). This primer is standalone and intends to show the main concepts through code-based examples. However, it uses the same dataset and setting as the going example in the open-access publication (Kliegr and Izquierdo 2023), which contains graphical illustrations as well as formal definitions of the algorithms (as opposed to R-code examples here).
Brief introduction to association rule classification
Before we present the details of the QCBA algorithm, we start by covering the foundational methods of association rule learning and classification.
Input data Association rules are historically mined on transactions, which is also the format used by the most commonly used R package arules. A standard data table (data frame) can be converted to a transaction matrix. This can be viewed as a binary incidence matrix, with one dummy variable for each attribute-value pair (called an item). In the case of numerical variables, discretization (quantization) is a standard preprocessing step. It is required to ensure that the search for rules is fast and the conditions in the discovered rules are sufficiently broad.
Association rules Algorithms such as Apriori (Agrawal and Srikant 1994) are used for association rule mining. An association rule has the form \(r: antecedent \rightarrow consequent\), where both \(antecedent\) and \(consequent\) are sets of items. The arules package, which is the most popular Apriori implementation in CRAN, calls the antecedent the left-hand side of the rule (\(lhs\)) and the consequent the right-hand side (\(rhs\)). Each set is interpreted as a conjunction of conditions corresponding to individual items. When all these conditions are met, then the rule predicts that its consequent is true for a given input data point. Formally, we say that a rule covers a transaction if all items in the rule’s antecedent are contained in the transaction. A rule correctly classifies the transaction if the transaction is covered and, at the same time, the items in the rule consequent are contained in the transaction.
Rule interest measures Each rule is associated with some quality
metrics (also called rule interest measures). The two most important
ones are the confidence and support of rule \(r\). Confidence is
calculated as \(conf(r)=a/(a+b)\), where \(a\) is the number of transactions
matching both the antecedent and consequent and \(b\) is the number of
transactions matching the antecedent but not the consequent. Support is
calculated either as \(a\) (absolute support) or \(a\) divided by the total
number of transactions (relative support). In the association rule
generation step, confidence and support are used as constraints in
association rule learning. Another important constraint to prevent a
combinatorial explosion is a restriction on the length of the rule
(minLen and maxLen parameters in
arules), defined as the
threshold on the minimum and maximum count of items in the rule
antecedent and consequent.
Association Rule Classification models ARC algorithms process candidate association rules into a classifier. An input to the ARC algorithm is a set of pre-mined class association rules (CARs). A class association rule is an association rule that contains exactly one item corresponding to one of the target classes in the consequent. The classifier-building process typically amounts to a selection of a subset of CARs (Vanhoof and Depaire 2010). Some ARC algorithms, such as CBA, use rule interest measures for this: rules are first ordered and then some of them are removed using data coverage pruning and default rule pruning (step 2 and step 3 of the CBA-CB algorithm as described in Liu et al. (1998). Some ARC algorithms also include a rule with an empty antecedent (called default rule) at the end of the rule list to ensure that the classifier can always provide a prediction even if there is no specific rule matching that particular transaction.
Types of ARC models CBA produces rule lists: the rule with the highest priority in the pruned rule list is used for classification. Other recent algorithms producing rule lists include SBRL (Yang et al. 2024). The other common ARC approach is based on rule sets, where rules are not ordered, and multiple rules can be used for classification, e.g., through voting. This second group includes algorithms such as CMAR (Li et al. 2001) or CPAR (Yin and Han 2003).
Postprocessing with Quantitative CBA QCBA is a postprocessing algorithm for ARC models built over quantized data. On the input, it can take both rule lists or rule sets. However, it always outputs a rule list. While association rule learning often faces issues with a combinatorial explosion (Kliegr and Kuchar 2019), the postprocessing by QCBA is performed on a relatively small number of rules that passed the pruning steps within the specific ARC algorithm. QCBA is a modular approach with six steps that can be performed independently of each other. The only exception is the initial refit tuning step, which processes all items in a given rule that are the result of quantization. QCBA adjusts the item boundaries so that they correspond to actual values appearing in the original training data before discretization. Benchmarks in Kliegr and Izquierdo (2023) have shown that, on average, the postprocessing with QCBA took a similar time as building the input CBA model. The most expensive step can be extension, with its complexity depending on the number of unique numerical values.
Comparison with decision tree induction A common question is the relationship between association rule classifiers and decision trees. Trees can be decomposed into rules that are similar to association rules, as each path from the root to the leaf corresponds to one rule. However, individual trees in algorithms such as C4.5 (Quinlan 1993) are built in such a way that the resulting rules are non-overlapping, while association rule learning outputs overlapping rules. Algorithms such as Apriori will output all rules that are valid in the data, given the user-specified thresholds. In contrast, decision tree induction algorithms use a heuristic, such as information gain, which results in a large number of otherwise valid patterns being skipped as rules prioritize splits that maximize the chosen heuristic.
Example
Dataset
Let’s look at the humtemp synthetic data set, which we will be using
throughout this tutorial and is bundled with the
arcPackage. There
are two quantitative explanatory attributes (Temperature and Humidity).
The target attribute is preference (subjective comfort level).
The first six rows of humtemp obtained with head(humtemp):
## Temperature Humidity Class
## 1 45 33 2
## 2 27 29 3
## 3 40 48 2
## 4 40 65 1
## 5 38 82 1
## 6 37 30 3Quantization
The essence of QCBA is the optimization of literals (conditions) created over numerical attributes in rules. QCBA thus needs to translate back the bins created during the discretization to the continuous space.
For clarity, we will perform the quantization manually using equidistant binning and user-defined cut points. An alternative approach using automatic supervised discretization is shown in Section 4.
library(qCBA)
temp_breaks <- seq(from = 15, to = 45, by = 5)
# Another possibility with user-defined cutpoints
hum_breaks <- c(0, 40, 60, 80, 100)
data_discr <- arc::applyCuts(
df = humtemp,
cutp = list(temp_breaks, hum_breaks, NULL),
infinite_bounds = TRUE,
labels = TRUE
)
head(data_discr)The result of quantization is:
## Temperature Humidity Class
## 1 (40;45] (0;40] 2
## 2 (25;30] (0;40] 3
## 3 (35;40] (40;60] 2
## 4 (35;40] (60;80] 1
## 5 (35;40] (80;100] 1
## 6 (35;40] (0;40] 3The purpose of the applyCuts() function is to ensure that within
intervals, a semicolon is used as a separator instead of the more common
comma. A semicolon is used as the standard interval separator in some
countries, such as Czechia. However, the main reason is that a comma is
already used within rules for another purpose – to separate conditions.
The use of a different separator fosters unambiguity, for example, in
situations when a rule set aimed to be optimized is read from a file.
Discovery of candidate class association rules
ARC algorithms typically first generate a large number of association rules or frequent itemsets. Typically, this step is handled internally by the ARC library (as shown in Section Demonstration of individual QCBA optimization steps).
For better clarity, in the example below, the list of CARs is generated by manually invoking the apriori algorithm.
txns <- as(data_discr, "transactions")
appearance <- list(rhs = c("Class=1", "Class=2", "Class=3", "Class=4"))
rules <- arules::apriori(
data = txns,
parameter = list(
confidence = 0.5,
support = 3 / nrow(data_discr),
minlen = 1,
maxlen = 3
),
appearance = appearance
)The first line converts the input data into items, attribute-value
pairs such as Temperature=(40;45] or Class=3. The appearance
defines which items can appear in the consequent of the rules
(right-hand side, rhs). This data format is required for association
rule learning. On the second line, there are several standard additional
parameters typically used for the extraction of association rules. The
confidence threshold of 0.5 and support of 1% is recommended
(Liu et al. 1998). However, since the humtemp dataset
has fewer than 100 rows, the support threshold would correspond to the
support of just 1 transaction, which would miss the purpose of this
threshold to address overfitting by eliminating rules that are backed by
only a small number of instances. We, therefore, set the minimum support
threshold to 3 transactions (expressed as a percentage in the code
snippet). The minlen and maxlen express that rules must contain at
most two items in the condition part (antecedent).
The discovered rules, shown with inspect(rules), are shown below:
lhs rhs support confidence coverage lift #
{Humidity=(80;100]} => {Class=1} 0.11111111 0.8000000 0.1388889 3.600000 4
{Temperature=(15;20]} => {Class=2} 0.11111111 0.5714286 0.1944444 2.057143 4
{Temperature=(30;35]} => {Class=4} 0.13888889 0.6250000 0.2222222 2.045455 5
{Temperature=(25;30]} => {Class=4} 0.13888889 0.5000000 0.2777778 1.636364 5
{Temperature=(25;30], Humidity=(40;60]} => {Class=4} 0.08333333 0.6000000 0.1388889 1.963636 3In this listing, coverage and lift, as defined in the Hahsler et al. (2007) documentation, are additional rule quality measures not used by the qCBA package. Count (abbreviated with # in the listing) corresponds to the support of the rule represented as an integer value rather than a proportion.
Learn classifier from candidate CARs
Out of the five discovered rules, we create a CBA classifier. The following lists the conceptual steps performed by CBA to transform the input rule list into a CBA model:
Rule precedence is established: rules are sorted according to confidence, support and length.
Rules are subject to pruning
data coverage pruning: the algorithm iterates through the rules in the order of precedence removing any rule which does not correctly classify at least one instance. If the rule correctly classifies at least one instance, it is retained and the instances removed (only for the purpose of subsequent steps of data coverage pruning).
default rule pruning: the algorithm iterates through the rules in the sort order, and cuts off the list once keeping the current rule would result in worse accuracy of the model than if a default rule was inserted at the place of the current rule and the rules below it were removed.
Default rule is inserted at the bottom of the list.
To supply our own list of candidate rules instead of using one generated
with cba(), we will call:
classAtt <- "Class"
rmCBA <- cba_manual(
datadf_raw = humtemp,
rules = rules,
txns = txns,
rhs = appearance$rhs,
classAtt = classAtt,
cutp = list()
)
inspect(rmCBA@rules)The reason why we invoke cba_manual() from the arc package is that
cba_manual() instead of cba() allows us to supply a custom list of
rules from which the CBA model will be built. This function would also
do the quantization, but since we already did this as part of the
preprocessing, we use cutp = list() to express that no cutpoints are
specified.
In this toy example, the CBA model, which could be displayed through the
function call inspect(rmCBA@rules), is almost identical to the
candidate list of rules shown above. The main difference is the
reordering of rules by confidence and support (higher is better) and the
addition of the default rule – a rule with an empty antecedent to the
end. Note that for brevity, the conditions in the rules in the printout
below were replaced by {...} as they are the same as in the printout on
the previous page (although mind the different order of rules). The
values of support, confidence, coverage and lift are also the same and
were omitted.
lhs rhs {...} count lhs_length orderedConf orderedSupp cumulativeConf
[1] {...} => {Class=1} {...} 4 1 0.8000000 4 0.8000000
[2] {...} => {Class=4} {...} 5 1 0.7142857 5 0.7500000
[3] {...} => {Class=4} {...} 3 2 0.6000000 3 0.7058824
[4] {...} => {Class=2} {...} 4 1 0.5000000 3 0.6521739
[5] {...} => {Class=4} {...} 5 1 0.5000000 2 0.6296296
[6] {} => {Class=2} {...} 0 0 0.5555556 5 0.6111111 The default rule ensures that the rule list covers every possible instance. The rule list is visualized in Figure 1, where the green background corresponds to Class 2 predicted by the default rule. The CBA output contains several additional statistics for each rule. The ordered versions of confidence and support are computed only from those training instances reaching the given rule. For the first rule, the ordered confidence is identical to standard confidence. The ordered support is also semantically the same but is expressed as an absolute count rather than a proportion. To compute these values for the subsequent rules, instances covered by rules higher in the list have been removed. The cumulative confidence is an experimental measure described in arc documentation.
Applying the classifier
The toy example does not contain enough data for a meaningfully large train/test split. Therefore, we will evaluate the training data. The accuracy of the CBA model on training data:
prediction_cba <- predict(rmCBA, data_discr)
acc_cba <- CBARuleModelAccuracy(
prediction = prediction_cba,
groundtruth = data_discr[[classAtt]]
)The accuracy is 0.61, and the contents of prediction_cba are the
predicted values of comfort:
[1] 2 4 2 2 1 2 2 4 4 4 4 4 4 1 4 1 4 4 4 4 4 4 4 4 1 2 2 2 2 1 2 2 2 2 2 2
Levels: 1 2 4Explaining the prediction
The predict() function from the
arc library allows for
additional output to enhance the explainability of the result. By
setting outputFiringRuleIDs=TRUE we can obtain the ID of a particular
rule that was used to classify each instance in the passed dataset.
ruleIDs <- predict(rmCBA, data_discr, outputFiringRuleIDs = TRUE)For example, we may now explain the classification of the first row of
data_discr, which is, for convenience, reproduced below:
## Temperature Humidity Class
## 1 (40;45] (0;40] 2To do so, we invoke:
inspect(rmCBA@rules[ruleIDs[1]])This returns the default rule (number 6). The reason is that the values in this instance are out of bounds of the conditions in all other rules. Now, we have a rule list ready for postoptimization with QCBA.
Postprocessing with QCBA
By working with the original continuous data, the QCBA algorithm can improve the fit of the rules and consequently reduce their count.
We will use the rmCBA model built previously:
rmqCBA <- qcba(cbaRuleModel = rmCBA, datadf = humtemp)This ran QCBA with the default set of optimization steps enabled, which correspond to the best-performing configuration #5 from (Kliegr and Izquierdo 2023).
The resulting rule list is
rules support confidence #
1 {Humidity=[82;95]} => {Class=1} 0.1111111 0.8000000 1
2 {Temperature=[22;31],Humidity=[33;53]} => {Class=4} 0.1666667 0.7500000 2
3 {Temperature=[31;34]} => {Class=4} 0.1388889 0.6250000 1
4 {} => {Class=2} 0.2777778 0.2777778 0 Note that the ‘condition_count’ column was abbreviated as # in the listing and the orderedConf and orderedSupp columns were omitted for brevity.

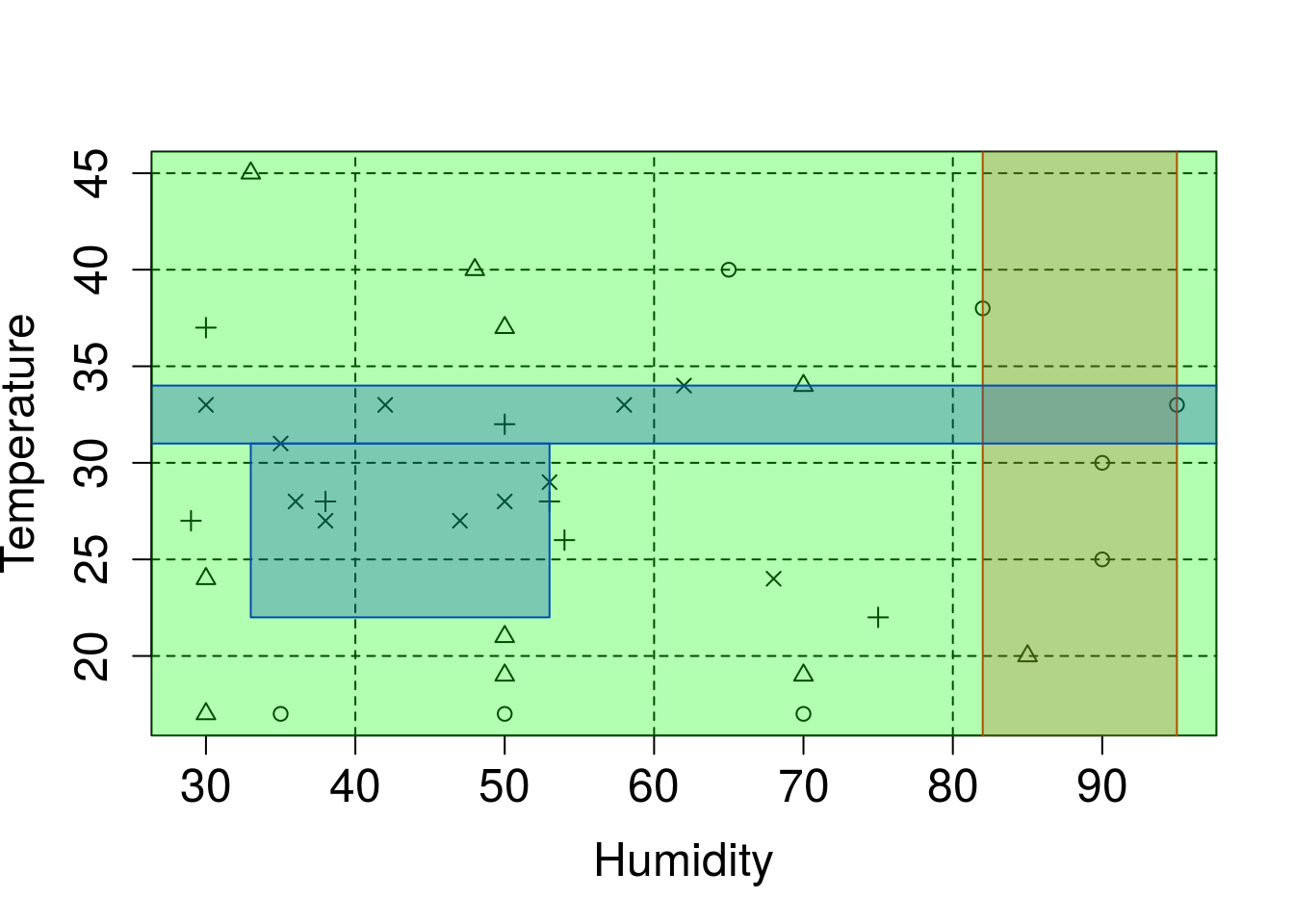

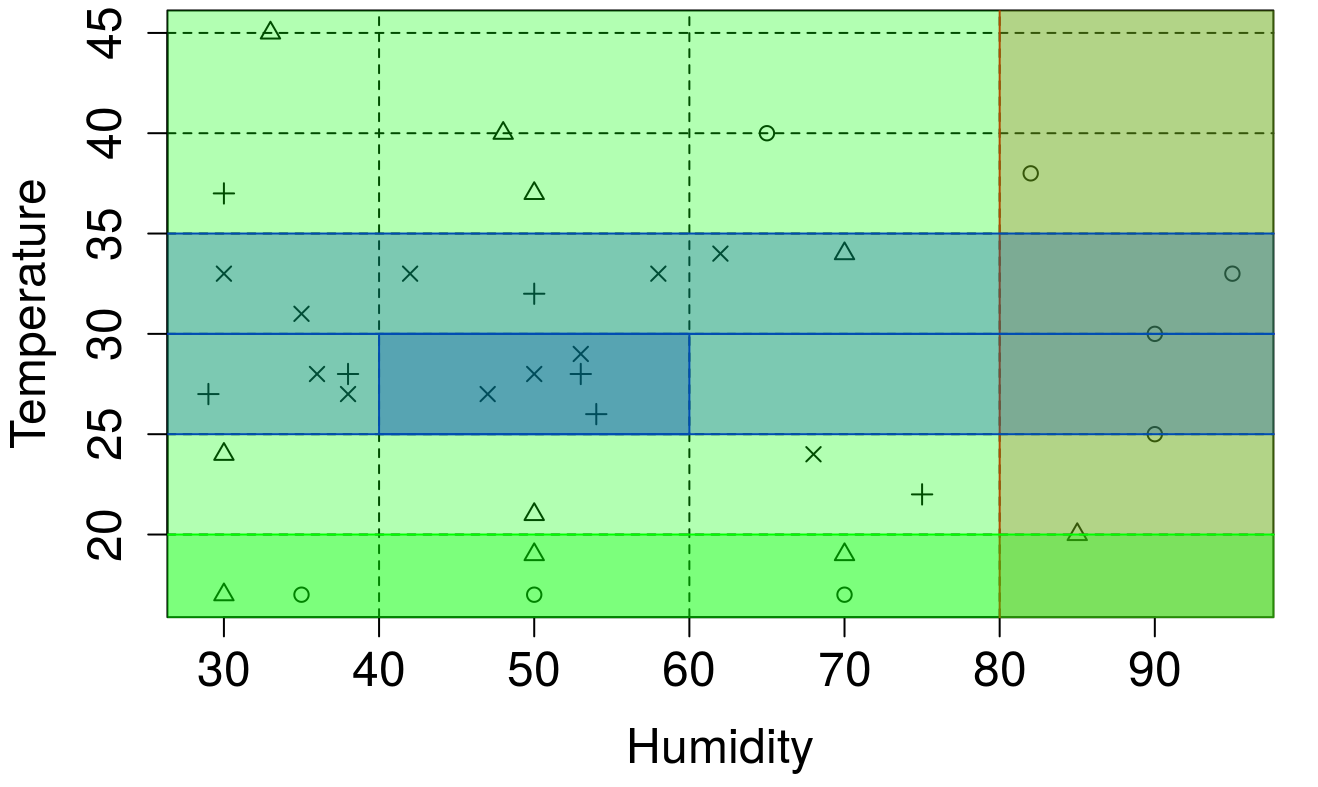

Figure 1 (right) shows the QCBA model. Compared to the CBA model in Figure 1 (left), QCBA removed two rules and refined the boundaries of the remaining rules.
Predictive performance is computed in the same way as for CBA:
prediction <- predict(rmqCBA, humtemp)
acc <- CBARuleModelAccuracy(prediction, humtemp[[rmqCBA@classAtt]])The accuracy is unchanged at 0.61, but we got a smaller model. Similarly, as with CBA, we could use the argument outputFiringRuleIDs.
Note that the QCBA algorithm does not introduce any mandatory thresholds or meta-parameters for the user to set or optimize, although it does allow the user to enable or disable the individual optimizations, as shown in the next section.
3 Detailed description of package qCBA with examples in R
Overview of qcba() arguments
To build a model, qcba() needs a set of rules. As a second mandatory
argument, the qcba() function takes the raw data frame. This can
contain nominal as well as numerical columns. The remaining arguments
are optional. The most important ones relating to the optimizations
performed by QCBA are described in the following two subsections.
This rule model can be either the instance of customCBARuleModel or
CBARuleModel class. The difference is that in the \(rules\) slot, in the
former class, rules are represented as string objects in a data frame.
This universal data frame format is convenient for loading rules from
other sources or R packages that export rules as strings. The latter
uses an instance of rules class from
arules, which is more
efficient, especially when the number of rules or items is larger. An
important slot shared between both classes is cutp, which contains
information on the cutpoints used to quantize the data on which the
rules were learnt.
Optimizations on individual rules
Optimizations can be divided into two groups depending on whether they are performed on individual rules or on the entire model. We first describe the first group. Since these operations are independent of the other rules, they can also be parallelized.
Refitting rules. This step processes all items derived with quantization in the antecedent of a given rule. These items have boundaries that stick to a grid that corresponds to the result of discretization. The grid used by QCBA corresponds to all unique values appearing in the training data. This is the only mandatory step.
Attribute pruning (attributePruning). Attribute pruning is a step
in QCBA that evaluates if the items are needed for each rule and item in
its antecedent. The item is removed if a rule created without the item
has at least the confidence of the original rule. Enabled (TRUE) by
default.
Trimming (trim_literal_boundaries). Boundary parts of intervals
into which no instances correctly classified by the rule fall are
removed. Enabled (TRUE) by default.
Extension (extendType). The ranges of intervals in the antecedent
of each rule are attempted to be enlarged. Currently, only extension on
numerical attributes is supported. By default, the extension is accepted
if it does not decrease rule confidence, but this behaviour can be
controlled by setting the minImprovement parameter (default is 0). To
overcome local minima, the extension process can provisionally accept a
drop in confidence in the intermediate result of the extension. How much
the confidence can temporarily decrease for the extension process not to
stop is controlled by minCondImprovement. In the current version, the
extension applies only to numerical attributes (set
extendType="numericOnly" to enable, this is also the default value).
In future versions, other extend types may be added.
Optimizations on rule list
The second group of optimizations aims at removing rules, considering the context of other rules in the list.
Data coverage pruning (postpruning). The purpose of this step is
to remove rules that were made redundant by the previous QCBA
optimizations. Possible values are none, cba and greedy. The cba
option is identical to CBA’s data coverage pruning: a rule is removed if
it does not correctly classify any transaction in the training data
after all transactions covered by retained rules with higher precedence
were removed. The greedy option is an experimental modification of
data coverage pruning described in the
qCBA documentation.
Enabled by default (the default value is postpruning=cba).
Default rule overlap pruning (defaultRuleOverlapPruning). Let
\(R_p\) denote the set of rules that classify into the same class as the
default rule \(r_d: \{\} \rightarrow cons_1\). To determine if a pruning
candidate, denoted as \(r_p \in R_p: ant \rightarrow cons_1\), can be
removed, all rules with lower precedence that have a nonempty antecedent
and a different consequent \(cons_2\) (\(cons_1\neq cons_2\)) are
identified. Let’s denote the set of these rules as \(R_c\). If the
antecedents of all rules in \(R_c\) do not cover any of the transactions
covered by \(r_p\) in the training data, \(r_p\) is removed. The removal of
\(r_p\) will not affect the classification of training data, since the
instances originally covered by \(r_p: ant \rightarrow cons_1\) will be
classified to the same class by \(r_d: \{\} \rightarrow cons_1\). This is
called the transaction-based version. In the alternative range-based
version, the checks on rules in \(R_p\) involve checking the boundaries of
intervals rather than overlap in matched transactions. This parameter
has three possible values: transactionBased, rangeBased and none.
According to analysis and benchmarks in (Kliegr and Izquierdo 2023), the
transaction-based version removes more rules than the range-based
version, although it can sometimes affect predictive performance on
unseen data. Transaction-based pruning is the default.
Effects on classification performance and model size
An overview of observed properties of the QCBA steps is present in Table 1. The entries denote the effect of applying the algorithm specified in the first column on the input rule list: \(\geq\) denotes that the value of the given metric will increase or will not change, = the value will not change, \(\leq\) decrease or will not change, \(na\) can increase, decrease or will not change. For example, applying the refit algorithm on a rule can have the following effects according to the table: the density of the rule will improve or remain the same: the (+) symbol in the table denotes that an increase in that value is considered a favourable property, and (-) as negative. Rule confidence (conf), rule support (supp), rule length (length) will remain unaffected. Considering the entire rule list, the refit operation will not affect the rule count or accuracy on training data (\(acc_{train}\)). However, the accuracy on unseen data (\(acc_{test}\)) may change.
| algorithm | rule (local classifier) | rule list | ||||
| dataset | conf | supp | length | \(acc_{train}\) | \(acc_{test}\) | rule count |
| refit | = | = | = | = | \(na\) | = |
| literal pruning | \(\geq\) | \(\geq (+)\) | \(\leq (+)\) | \(na\) | \(na\) | \(\leq\)* (+) |
| trimming | \(\geq (+)\) | = | = | \(\geq (+)\) | \(na\) | = |
| extension | \(\geq (+)\) | \(\geq (+)\) | = | \(na\) | \(na\) | = |
| postpruning | na | na | na | \(\geq\) | \(na\) | \(\leq\) (+) |
| drop - trans. | na | na | na | = | \(na\) | \(\leq\) (+) |
| drop - range | na | na | na | = | = | \(\leq\) (+) |
Handling missing data
Association rule learning approaches are resilient to the presence of
missing data in the input data frame. The reason is that rows are viewed
as transactions and combinations of column names and their values as
items. A missing value (NA) in a given column is then interpreted as
an item not present in a given transaction and skipped when a data frame
is converted to the transactions data structure from the
arules using the as()
function, which will result in NA values not being present in learnt
rules. Note that qcba() treats an empty string in the input dataframe
in the same way as the NA value along with a dataframe containing NA
values: the NA value is first converted to an empty string,
represented using .jarray() from
rJava and then passed to
the Java-based core of
qCBA, where it is treated
as a Float.NaN value and also generally skipped.
Computational costs for large datasets
The individual postprocessing operations have distinct computational
costs. These depend on several main factors: the number of rows and
columns of the input data, the number of unique numerical values, and
the number of input rules. A detailed experimental study of the
influence of these factors is presented in Kliegr and Izquierdo (2023). This was
performed on subsets of the KDD’99 Anomaly Detection dataset, with the
maximum dataset size being processed using all QCBA optimizations,
reaching about 40,000 rows and about the same number of unique numerical
values. The results show that the most computationally intensive step is
the extension step. For large datasets, the user may, therefore,
consider disabling it or tuning its minCI parameter, which can
influence the runtime. An important factor is also the number of input
rules for optimization. This is often related to the chosen base
learning algorithm. For example, CPAR tends to produce a large number of
rules while SBRL will output condensed rule models. For details, please
refer to Kliegr and Izquierdo (2023).
4 Demonstration of individual QCBA optimization steps
Compared to the example in Subsection Example, this part will use the larger iris dataset, which allows for the demonstration of all QCBA steps. To show QCBA with a different base rule learner than CBA from the arc package used in the previous section, we will use CPAR from the arulesCBA package.
Data
We use the iris dataset from the
datasets R package.
The dataset was shuffled and randomly split into a train set (100 rows)
and a test set (50 rows). The data was then automatically discretized
using the MDLP algorithm wrapped by arc::discrNumeric() and originally
available from the R
discretization
library.
library(arulesCBA) #version 1.2.7
set.seed(12) # Chosen for demonstration purposes
allDataShuffled <- datasets::iris[sample(nrow(datasets::iris)), ]
trainFold <- allDataShuffled[1:100, ]
testFold <- allDataShuffled[101:nrow(datasets::iris), ]
classAtt <- "Species"
discrModel <- discrNumeric(df = trainFold, classAtt = classAtt)
train_disc <- as.data.frame(lapply(discrModel$Disc.data, as.factor))
cutPoints <- discrModel$cutp
test_disc <- applyCuts(
testFold,
cutPoints,
infinite_bounds = TRUE,
labels = TRUE
)
y_true <- testFold[[classAtt]]Learn base ARC model with CPAR
In the following, we learn an ARC model using the CPAR (Classification based on Predictive Association Rules) algorithm using its default settings.
rmBASE <- CPAR(train_disc, formula = as.formula(paste(classAtt, "~ .")))
predictionBASE <- predict(rmBASE, test_disc)
inspect(rmBASE$rules)
cat("Number of rules: ", length(rmBASE$rules))
cat("Total conditions: ", sum(rmBASE$rules@lhs@data))
cat("Accuracy on test data: ", mean(predictionBASE == y_true))In this case, the rule model is composed of seven rules. Note that the last field on the output containing the Laplace statistics was omitted for brevity.
lhs rhs support confidence lift
[1] {Petal.Length=[-Inf;2.6]} => {Species=setosa} 0.32 1.0000000 3.125000
[2] {Petal.Width=[-Inf;0.8]} => {Species=setosa} 0.32 1.0000000 3.125000
[3] {Petal.Length=(5.15; Inf],
Petal.Width=(1.75; Inf]} => {Species=virginica} 0.25 1.0000000 2.777778
[4] {Petal.Width=(1.75; Inf]} => {Species=virginica} 0.33 0.9705882 2.696078
[5] {Sepal.Length=(5.55; Inf],
Petal.Length=(2.6;4.75],
Petal.Width=(0.8;1.75]} => {Species=versicolor} 0.21 1.0000000 3.125000
[6] {Petal.Length=(2.6;4.75]} => {Species=versicolor} 0.26 0.9629630 3.009259
[7] {Petal.Width=(0.8;1.75]} => {Species=versicolor} 0.31 0.9117647 2.849265 The statistics are:
"Number of rules: 7 Total conditions: 10 Accuracy on test data: 0.96"Configuring QCBA optimizations and printing statistics
For our demonstration purposes, we will set up a generic
qCBA configuration
(variable baseModel_arc), which initially disables all optimizations.
To avoid repeating code for passing long argument lists to qcba() and
for printing model statistics such as model size and accuracy on test
data, we will also introduce the helper function qcba_with_summary().
baseModel_arc <- arulesCBA2arcCBAModel(
arulesCBAModel = rmBASE,
cutPoints = cutPoints,
rawDataset = trainFold,
classAtt = classAtt
)
qcbaParams <- list(
cbaRuleModel = baseModel_arc,
datadf = trainFold,
extend = "noExtend",
attributePruning = FALSE,
continuousPruning = FALSE,
postpruning = "none",
trim_literal_boundaries = FALSE,
defaultRuleOverlapPruning = "noPruning",
minImprovement = 0,
minCondImprovement = 0
)
qcba_with_summary <- function(params) {
rmQCBA <- do.call(qcba, params)
cat("Number of rules: ", nrow(rmQCBA@rules), " ")
cat("Total conditions: ", sum(rmQCBA@rules$condition_count), " ")
accuracy <- CBARuleModelAccuracy(predict(rmQCBA, testFold), testFold[[classAtt]])
cat("Accuracy on test data: ", round(accuracy, 2))
print(rmQCBA@rules)
}QCBA Refit
The following code will postoptimize the previously learnt CBA model using the refit optimization:
qcba_with_summary(qcbaParams)This will output the following list of eight rules (note that in this and the following printouts, the columns with rule measures are omitted for brevity):
1 {Petal.Length=[-Inf;1.9]} => {Species=setosa}
2 {Petal.Width=[-Inf;0.6]} => {Species=setosa}
3 {Petal.Length=[5.2;Inf],Petal.Width=[1.8;Inf]} => {Species=virginica}
4 {Sepal.Length=[5.6;Inf],Petal.Length=[3.3;4.7],Petal.Width=[1;1.7]} => {Species=versicolor}
5 {Petal.Width=[1.8;Inf]} => {Species=virginica}
6 {Petal.Length=[3.3;4.7]} => {Species=versicolor}
7 {Petal.Width=[1;1.7]} => {Species=versicolor}
8 {} => {Species=virginica}The intervals (except for boundaries set to infinity) were shortened. For example, for the first rule, the training data does not contain any data point with Petal.Length=2.6 (original boundary) but it does contain the value 1.9 (new boundary).
any(trainFold$Petal.Length == 1.9)
any(trainFold$Petal.Length == 2.6)The first returns TRUE and the second FALSE.
The statistics are
[1] "Number of rules: 8 Total conditions: 10 Accuracy on test data: 0.96"While this is one rule more than the CPAR model, this extra rule is the
explicitly included default rule (rule #8). In the
arulesCBA CPAR
model, the default rule is included in a separate slot
(rmBASE$default) and is the same virginica class as the one in the
QCBA rule set.
Recall that rules are applied from top to bottom. A careful inspection of the rule list shows that it contains rule 4, which is a special case of rule 7 (both predicting the versicolor class). However, neither of these rules can be removed without impact on the predictions. If the more specific rule 4 was removed, some instances would be classified differently, as more instances would reach rule 5, which would classify them as virginica. Similarly, the classification would change if we replace rule 4 with rule 7 or rule 7 with rule 4.
Adjusting boundaries and attribute pruning
We will demonstrate extension, trimming and attribute pruning steps simultaneously for efficient presentation.
qcbaParams$attributePruning <- TRUE
qcbaParams$trim_literal_boundaries <- TRUE
qcbaParams$extend <- "numericOnly"
qcba_with_summary(qcbaParams)The list of resulting rules is
1 {Petal.Length=[-Inf;1.9]} => {Species=setosa}
2 {Petal.Width=[-Inf;0.6]} => {Species=setosa}
3 {Petal.Length=[5.2;Inf]} => {Species=virginica}
4 {Sepal.Length=[5;Inf],Petal.Length=[3.3;4.7]} => {Species=versicolor}
5 {Petal.Width=[1.8;Inf]} => {Species=virginica}
6 {Petal.Length=[3.3;4.7]} => {Species=versicolor}
7 {Petal.Width=[1;1.7]} => {Species=versicolor}
8 {} => {Species=virginica}As can be seen, the adjustment of intervals resulted in a change in the boundary for Sepal.length in rule #4. The attribute pruning removed extra conditions from rules #3 and #4 resulting in a smaller model with overall improved test accuracy:
"Number of rules: 8 Total conditions: 8 Accuracy on test data: 1"Postpruning
The postpruning is performed on a model resulting from all previous steps.
qcbaParams$postpruning <- "cba"
qcba_with_summary(qcbaParams)The result is a substantially reduced rule list:
1 {Petal.Length=[1;1.9]} => {Species=setosa}
2 {Petal.Length=[5.2;Inf]} => {Species=virginica}
3 {Sepal.Length=[5;Inf],Petal.Length=[3.3;4.7]} => {Species=versicolor}
4 {Petal.Width=[1.8;Inf]} => {Species=virginica}
5 {} => {Species=versicolor} The statistics are:
"Number of rules: 5 Total conditions: 5 Accuracy on test data: 1.0"As can be seen, postpruning reduced the model size significantly, and in this case, the model has even better accuracy than the base CPAR model. However, in some other cases, a small average decrease in accuracy as a result of pruning has been shown in benchmarks in Kliegr and Izquierdo (2023).
Default rule pruning
The following code demonstrates the standard strategy for default rule pruning. As outlined earlier, this often provides an effective way to reduce the rule count, however, sometimes at the expense of slightly lower accuracy.
qcbaParams$defaultRuleOverlapPruning <- "transactionBased"
qcba_with_summary(qcbaParams)The result is the final reduced rule list with the removed rule #3 from the previous print-out. This rule classifies to the versicolor class. Since it is the default class, instances that were covered by this rule will be covered by the default rule. The original rule #4 covers – considering its position in the rule list – different instances of training data and, therefore, will not interfere with this.
1 {Petal.Length=[1;1.9]} => {Species=setosa}
2 {Petal.Length=[5.2;Inf]} => {Species=virginica}
3 {Petal.Width=[1.8;Inf]} => {Species=virginica}
4 {} => {Species=versicolor} The statistics for the final model are:
Number of rules: 4 Total conditions: 3 Accuracy on test data: 1.0Compared to the original CPAR model, the number of rules dropped from 8 (including the default rule) to 4, the number of conditions dropped from 10 to 3, and the accuracy increased by 0.04 points. This is an illustrative example and actual results may vary for a particular dataset. On average, the improvement reported over CPAR as measured on 22 benchmark datasets was a 2% improvement in accuracy, a 40% reduction in the number of rules and a 29% reduction in the number of conditions (Kliegr and Izquierdo 2023). More details on the benchmarks are covered in Section Built-in benchmark support.
5 Interoperability with Rule Learning Packages in CRAN
The qCBA package is able to process CBA models produced by all three CBA implementations in CRAN: arc, arulesCBA, rCBA. Additionally, it can process other rule models generated by arulesCBA such as CPAR and SBRL models generated by the package sbrl.
On the input, qcba() requires an instance of CBARuleModel, which has
the following slots:
rules: list of rules in the model (instance ofrulesfromarulespackage.cutp: specification of cutpoints used to discretize numerical attributes,classAtt: name of the target attribute,attTypes: types of the attributes (numeric or factor).
As shown below, the instance of this class is created automatically when used with arc and through prepared helper functions for other libraries. The code examples in the following are built on the data preparation described in Subsection Data.
arc package
As the arc package was
specifically designed for
qCBA, it outputs an
instance of the CBARuleModel class, which is accepted by the qcba()
function. The postprocessing can thus be directly applied to the result
of cba().
rmCBA <- cba(datadf = trainFold, classAtt = "Species")
rmqCBA <- qcba(cbaRuleModel = rmCBA, datadf = trainFold)By default, the function cba() from the
arc package learns
candidate association rules using automatic threshold detection using
the heuristic algorithm from (Kliegr and Kuchar 2019). Therefore, no support
and confidence thresholds have to be passed. A more complex case
involving custom discretization and thresholds was demonstrated in
Section Primer on building rule-based classifiers for QCBA in
R.
arulesCBA package
Compared to the previous example, there is an extra line with a call to a helper function.
library(arulesCBA)
arulesCBAModel <- arulesCBA::CBA(Species ~ ., data = train_disc, supp = 0.1, conf = 0.9)
CBAmodel <- arulesCBA2arcCBARuleModel(arulesCBAModel, discrModel$cutp, iris, classAtt)
qCBAmodel <- qcba(cbaRuleModel = CBAmodel, datadf = iris)Note that we passed a prediscretized data in irisDisc to the package
arulesCBA. While the
arulesCBA package
allows for supervised discretization using the
arulesCBA::discretizeDF.supervised() method, the cutpoints determined
during the discretization are not exposed in a machine-readable way.
Therefore, when
arulesCBA is used in
conjunction with qCBA,
the discretization should be performed using arc::discrNumeric().
Since both arc and
arulesCBA internally
use the MDLP method from the
discretization
package, this should not influence the results.
rCBA package
The logic of the use of rCBA package is similar to that of the previously covered package; it is only necessary to ensure the use of a different conversion function:
library(rCBA)
rCBAmodel <- rCBA::build(train_disc)
CBAmodel <- rcbaModel2CBARuleModel(rCBAmodel, discrModel$cutp, iris, "Species")
qCBAmodel <- qcba(CBAmodel, iris)Confidence and support thresholds are not specified as rCBA uses automatic confidence and threshold tuning using the simulated annealing algorithm from (Kliegr and Kuchar 2019). The rCBA package internally uses a Java implementation of CBA, which may result in faster performance on some datasets than arulesCBA (Hahsler et al. 2019).
sbrl and other packages
The logic of the use of
qCBA package for
sbrl is similar; it is
again only necessary to use a dedicated conversion function
sbrlModel2arcCBARuleModel().
An example for sbrl is contained in the qCBA package documentation, as sbrl requires additional preprocessing and postprocessing: sbrl requires a specially named target attribute, allows only for binary targets, and outputs probabilities rather than specific class predictions.
For compatibility with packages that do not use the
arules data structures,
there is also the customCBARuleModel class, which takes rules as a
dataframe conforming to the format used in
arules that can be
obtained with (as(rules, "data.frame")).
6 Built-in benchmark support
The qCBA package has built-in support for benchmarking over all supported types of algorithms covered in the previous section. This includes arulesCBA implementations of CBA, CMAR, CPAR, PRM and FOIL2 (Quinlan and Cameron-Jones 1993).
By default, an average of two runs of each algorithm is performed.
# learn with default metaparameter values
stats <- benchmarkQCBA(train = trainFold, test = testFold, classAtt = classAtt)
print(stats)The result of the last printout is
CBA CMAR CPAR PRM FOIL2 CBA_QCBA CMAR_QCBA CPAR_QCBA PRM_QCBA FOIL2_QCBA
accuracy 1.00 0.960 0.960 0.960 0.960 1.000 1.000 1.000 1.000 0.960
rulecount 5.00 25.000 7.000 6.000 8.000 4.000 4.000 4.000 4.000 5.000
modelsize 5.00 52.000 10.000 9.000 13.000 3.000 3.000 3.000 3.000 5.000
buildtime 0.05 0.535 0.215 0.205 0.215 0.058 0.138 0.059 0.059 0.081The function can be easily turned into a comparison with
round((stats[, 6:10] / stats[, 1:5] - 1), 3), the result is then:
CBA_QCBA CMAR_QCBA CPAR_QCBA PRM_QCBA FOIL2_QCBA
accuracy 0.000 0.042 0.042 0.042 0.000
rulecount -0.200 -0.840 -0.429 -0.333 -0.375
modelsize -0.400 -0.942 -0.700 -0.667 -0.615
buildtime 0.204 -0.737 -0.681 -0.722 -0.665This shows that on the iris, depending on the base algorithm, QCBA
decreased the rule count between 20% and 84%, while accuracy remained
unchanged or increased by about 4%. The last row shows that the time
required by QCBA is, for four out of five studied reference algorithms,
lower than what it takes to train the input model by the corresponding
algorithm. The benchmarkQCBA() function can also accept custom
metaparameters and selected base rule learners. The user can also choose
the number of runs (iterations parameter) and obtain the resulting
models from the last iteration.
Since the outputs of some learners may depend on chance, the function
also allows setting the random seed through the optional seed
argument. Note that the provided seed is not used for splitting data,
which needs to be performed externally. This approach provides the most
control for the user, avoids replicating code in other R packages and
functions aimed at splitting data, and also improves reproducibility.
output <- benchmarkQCBA(
trainFold,
testFold,
classAtt,
train_disc,
test_disc,
discrModel$cutp,
CBA = list(support = 0.05, confidence = 0.5),
algs = c("CPAR"),
iterations = 10,
return_models = TRUE,
seed = 1
)
message("Evaluation statistics")
print(output$stats)
message("CPAR model")
inspect(output$CPAR[[1]])
message("QCBA model")
print(output$CPAR_QCBA[[1]])This will produce output with a list of rules similar to the final CPAR model presented in Section Demonstration of individual QCBA optimization steps. A more complex benchmark of computational costs is presented in Kliegr and Izquierdo (2023), which also includes the study of various data sizes and the effect of varying the number of unique values in the dataset. A brief overview of the main results was presented in Subsection Computational costs for large datasets.
A GitHub repository https://github.com/kliegr/arcBench contains scripts that extend this workflow into automation across multiple datasets and materialized splits in each dataset. It also includes support for benchmarking additional rule learning algorithms, including SBRL, Python packages producing IDS models (Lakkaraju et al. 2016) and Weka libraries for RIPPER (Cohen 1995) and FURIA (Hühn and Hüllermeier 2009). Detailed benchmarking results are included in (Kliegr and Izquierdo 2023).
7 Conclusions
Quantitative CBA ameliorates one of the major drawbacks of association rule classification, the adherence of rules comprising the classifier to the multidimensional grid created by discretization of numerical attributes. By working with the original continuous data, the algorithm can improve the fit of the rules and consequently reduce their count. The QCBA algorithm does not introduce any mandatory thresholds or meta-parameters for the user to set or optimize, although it does allow disabling the individual optimizations. The qCBA package implements QCBA, allowing the postprocessing of the output of all three CBA implementations currently in CRAN. The package can also be used in conjunction with other association rule-based models, including those producing rule sets and using multi-rule classification.
The QCBA algorithm is described in detail in Kliegr and Izquierdo (2023), the package documentation is available in Kliegr (2024), and additional information is available at https://github.com/kliegr/qcba, which also features an interactive RMarkdown tutorial supplementing this paper.
8 Acknowledgment
The author thanks the Faculty of Informatics and Statistics, Prague University of Economics and Business, for long-term institutional support of research activities.
9 Supplementary materials
Supplementary materials are available in addition to this article. It can be downloaded at RJ-2025-038.zip
10 CRAN packages used
qCBA, rCBA, arc, arulesCBA, arules, arcPackage, rJava, datasets, discretization, sbrl
11 CRAN Task Views implied by cited packages
HighPerformanceComputing, MachineLearning, ModelDeployment
12 Note
This article is converted from a Legacy LaTeX article using the texor package. The pdf version is the official version. To report a problem with the html, refer to CONTRIBUTE on the R Journal homepage.
